Exploded View

WARNING: This page is about a different car, the 2011 Infiniti FX50. However, it is still accessible from the selected car via links, so may be relevant.

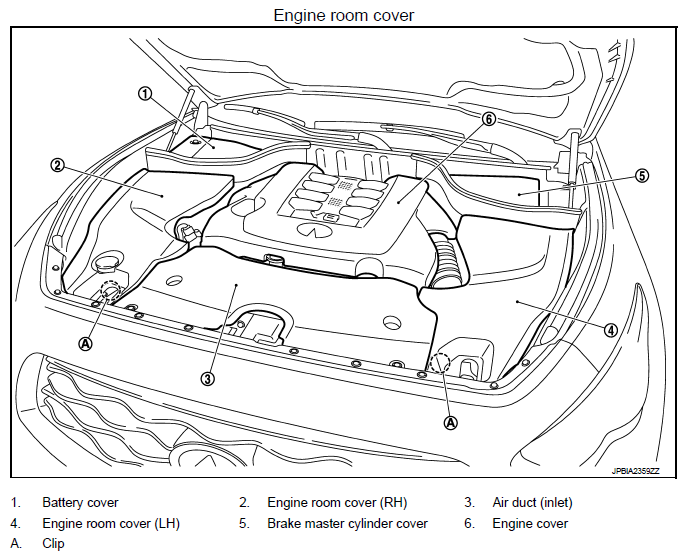

Fig 1: Identifying Engine Room Cover
G07226017Courtesy of NISSAN MOTOR CO., U.S.A.

Refer to "COMPONENTS " for symbols in the figure.

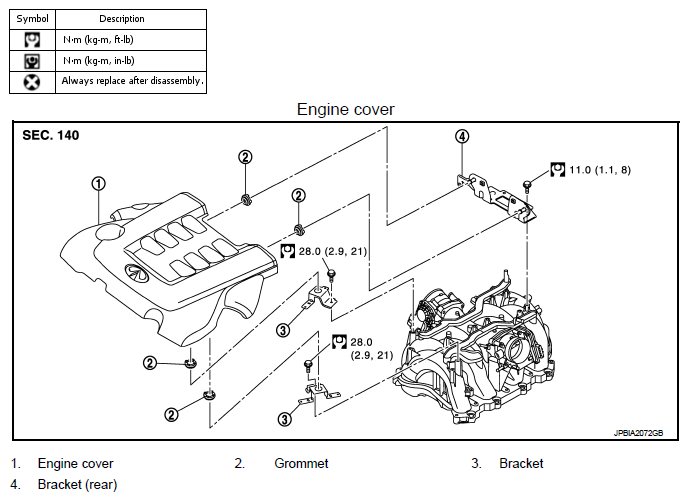

Fig 2: Engine Cover With Torque Specifications
G07226018Courtesy of NISSAN MOTOR CO., U.S.A.

Refer to "COMPONENTS " for symbols in the figure.
