Component Parts Location

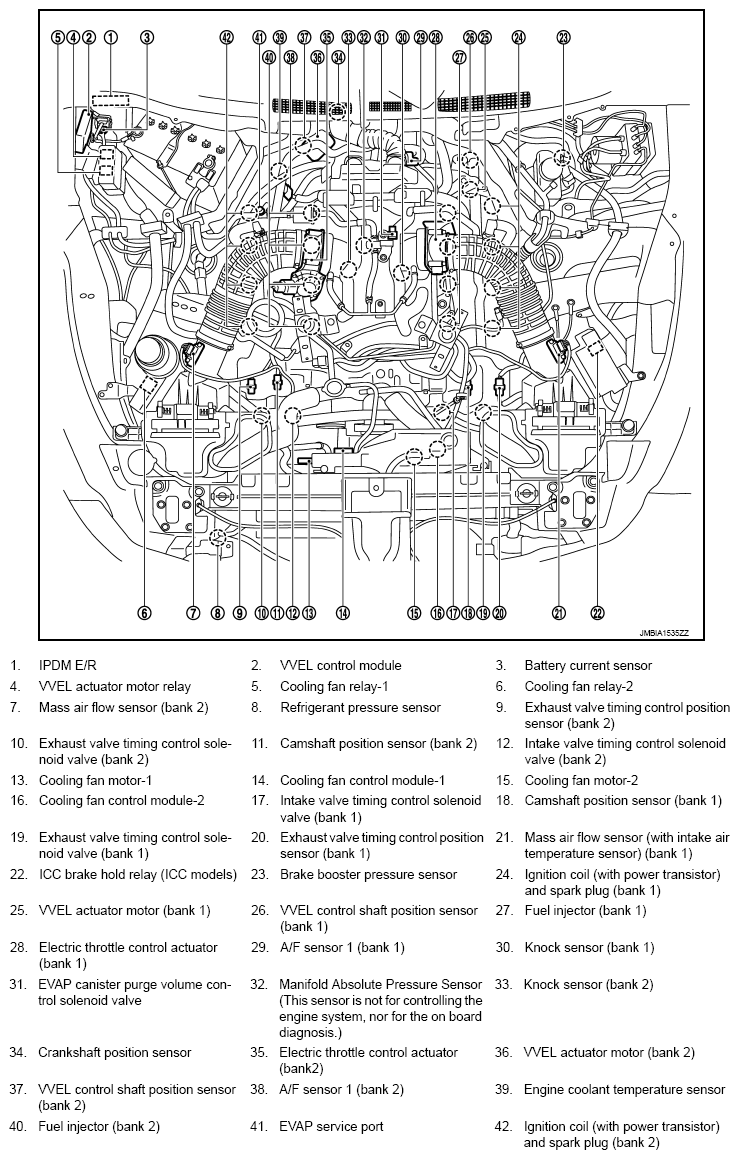

Fig 1: Exhaust Valve Timing Control Components Location (1 Of 25)

G08210663

Courtesy of NISSAN NORTH AMERICA, INC.

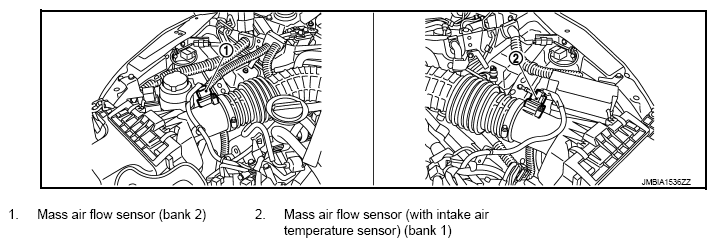

Fig 2: Exhaust Valve Timing Control Components Location (2 Of 25)

G08210664

Courtesy of NISSAN NORTH AMERICA, INC.

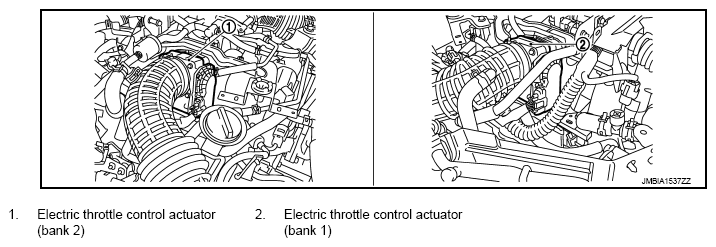

Fig 3: Exhaust Valve Timing Control Components Location (3 Of 25)

G08210665

Courtesy of NISSAN NORTH AMERICA, INC.

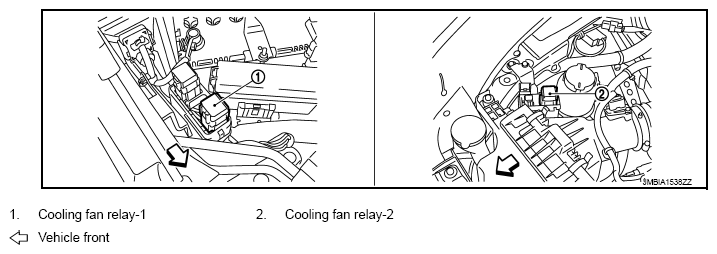

Fig 4: Exhaust Valve Timing Control Components Location (4 Of 25)

G08210666

Courtesy of NISSAN NORTH AMERICA, INC.

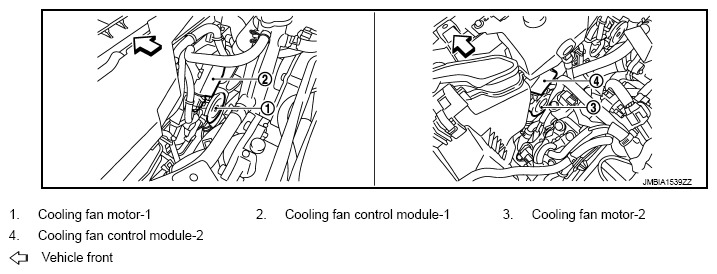

Fig 5: Exhaust Valve Timing Control Components Location (5 Of 25)

G08210667

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 6: Exhaust Valve Timing Control Components Location (6 Of 25)

G07227270

Courtesy of NISSAN NORTH AMERICA, INC.

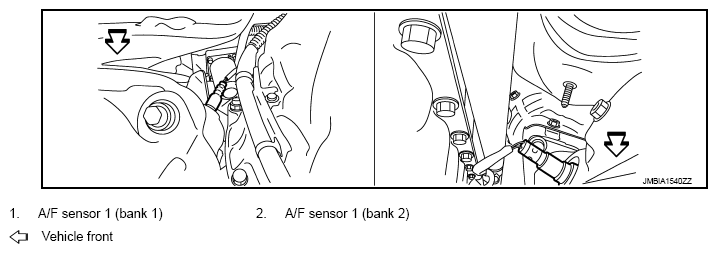

Fig 7: Exhaust Valve Timing Control Components Location (7 Of 25)

G08210669

Courtesy of NISSAN NORTH AMERICA, INC.

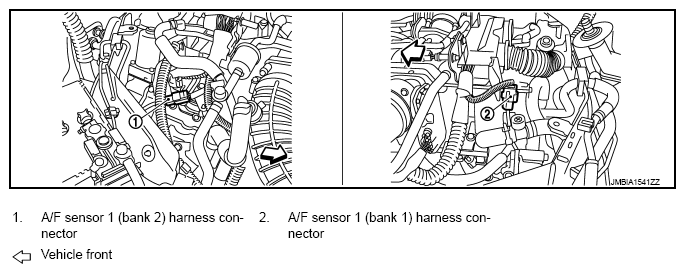

Fig 8: Exhaust Valve Timing Control Components Location (8 Of 25)

G08210670

Courtesy of NISSAN NORTH AMERICA, INC.

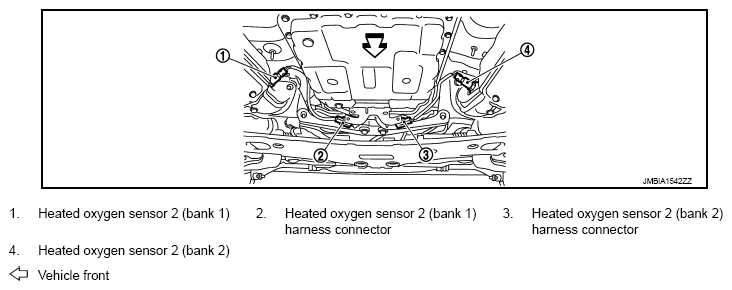

Fig 9: Exhaust Valve Timing Control Components Location (9 Of 25)

G08210671

Courtesy of NISSAN NORTH AMERICA, INC.

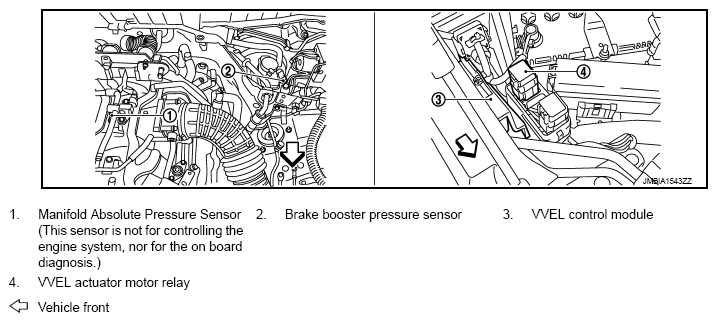

Fig 10: Exhaust Valve Timing Control Components Location (10 Of 25)

G08210672

Courtesy of NISSAN NORTH AMERICA, INC.

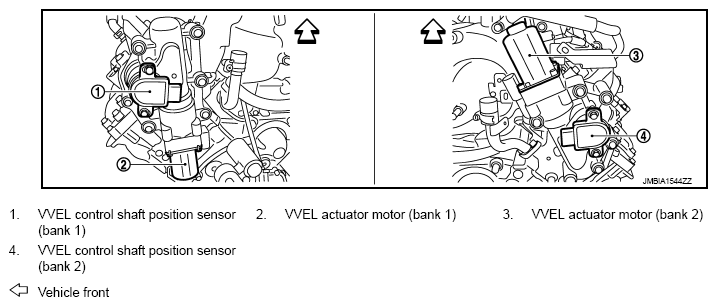

Fig 11: Exhaust Valve Timing Control Components Location (11 Of 25)

G08210673

Courtesy of NISSAN NORTH AMERICA, INC.

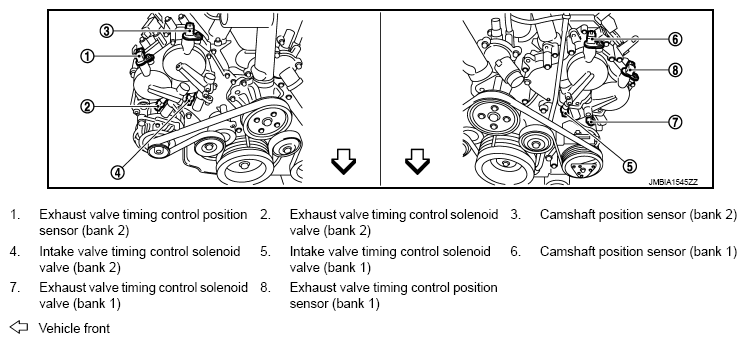

Fig 12: Exhaust Valve Timing Control Components Location (12 Of 25)

G08210674

Courtesy of NISSAN NORTH AMERICA, INC.

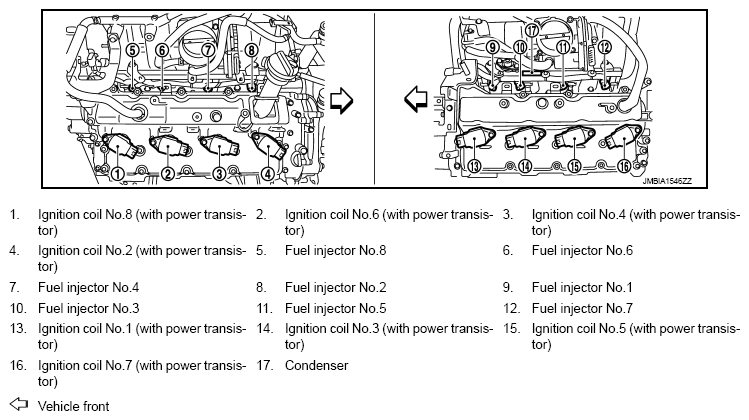

Fig 13: Exhaust Valve Timing Control Components Location (13 Of 25)

G08210675

Courtesy of NISSAN NORTH AMERICA, INC.

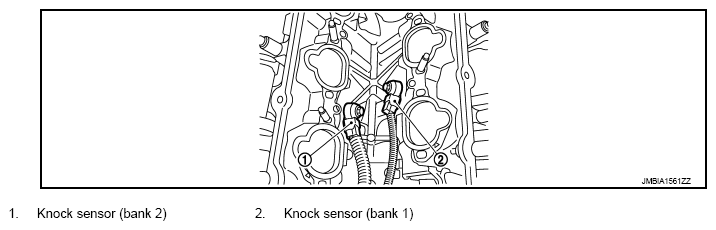

Fig 14: Exhaust Valve Timing Control Components Location (14 Of 25)

G08210676

Courtesy of NISSAN NORTH AMERICA, INC.

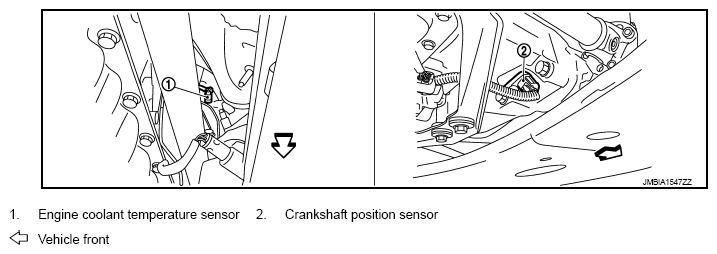

Fig 15: Exhaust Valve Timing Control Components Location (15 Of 25)

G08210677

Courtesy of NISSAN NORTH AMERICA, INC.

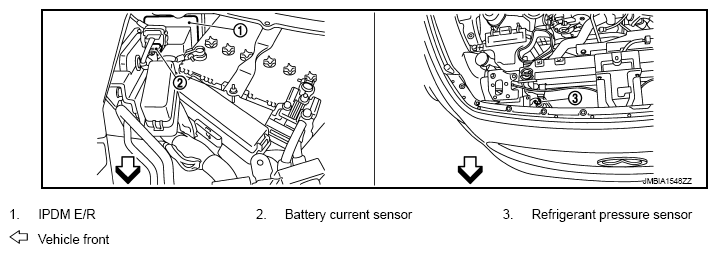

Fig 16: Exhaust Valve Timing Control Components Location (16 Of 25)

G08210678

Courtesy of NISSAN NORTH AMERICA, INC.

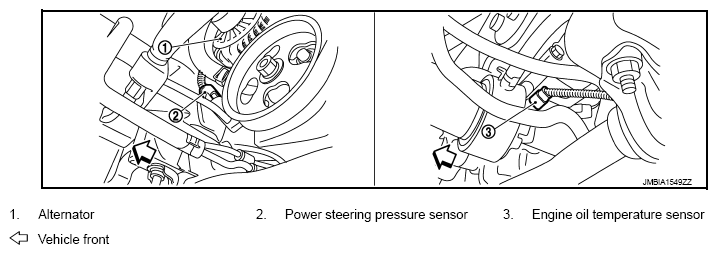

Fig 17: Exhaust Valve Timing Control Components Location (17 Of 25)

G08210679

Courtesy of NISSAN NORTH AMERICA, INC.

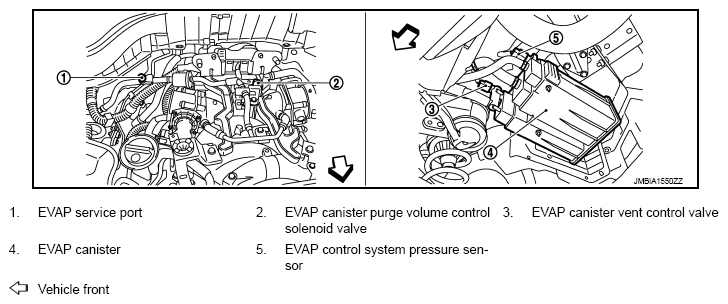

Fig 18: Exhaust Valve Timing Control Components Location (18 Of 25)

G08210680

Courtesy of NISSAN NORTH AMERICA, INC.

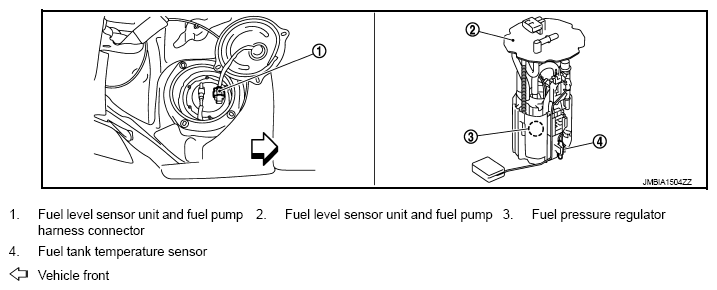

Fig 19: Exhaust Valve Timing Control Components Location (19 Of 25)

G08210681

Courtesy of NISSAN NORTH AMERICA, INC.

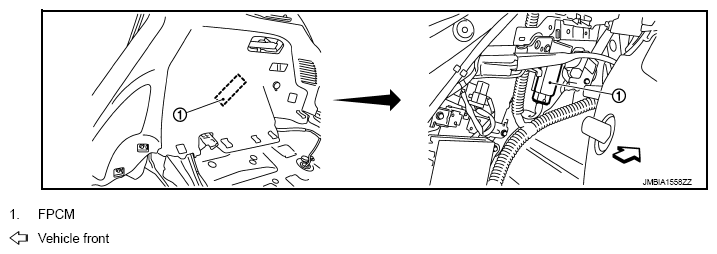

Fig 20: Exhaust Valve Timing Control Components Location (20 Of 25)

G08210682

Courtesy of NISSAN NORTH AMERICA, INC.

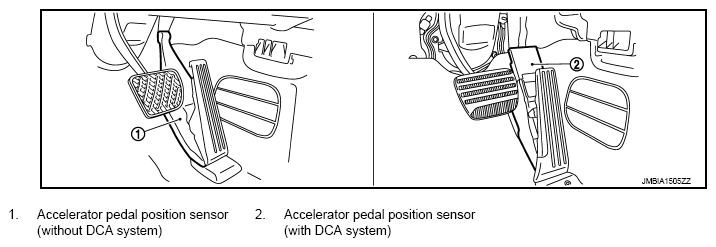

Fig 21: Exhaust Valve Timing Control Components Location (21 Of 25)

G08210683

Courtesy of NISSAN NORTH AMERICA, INC.

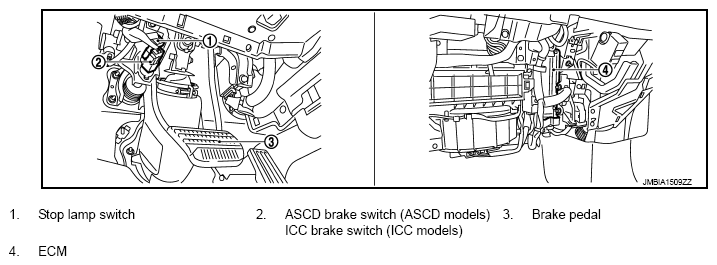

Fig 22: Exhaust Valve Timing Control Components Location (22 Of 25)

G08210684

Courtesy of NISSAN NORTH AMERICA, INC.

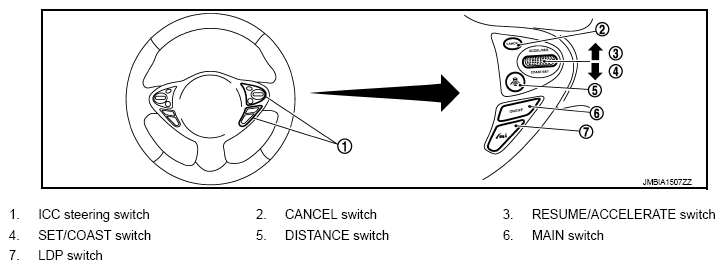

Fig 23: Exhaust Valve Timing Control Components Location (23 Of 25)

G08210685

Courtesy of NISSAN NORTH AMERICA, INC.

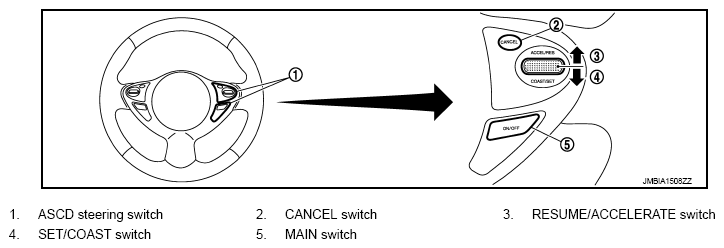

Fig 24: Exhaust Valve Timing Control Components Location (24 Of 25)

G08210686

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 25: Exhaust Valve Timing Control Components Location (25 Of 25)

G08210687

Courtesy of NISSAN NORTH AMERICA, INC.
