IGNITION TIMING: Special Repair Requirement

1. Attach timing light to loop wire as shown in the figure.

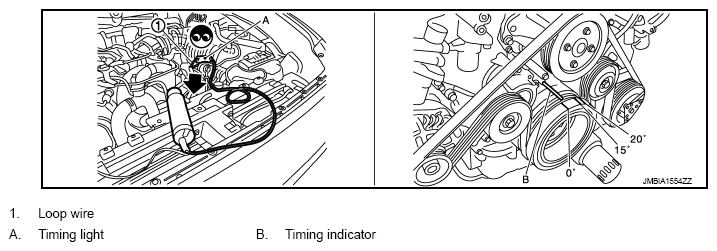

   Fig 1: Inspecting Loop Wire Connections

   Courtesy of NISSAN NORTH AMERICA, INC.
2. Check ignition timing.

: INSPECTION END
