Engine Cooling System Schematic

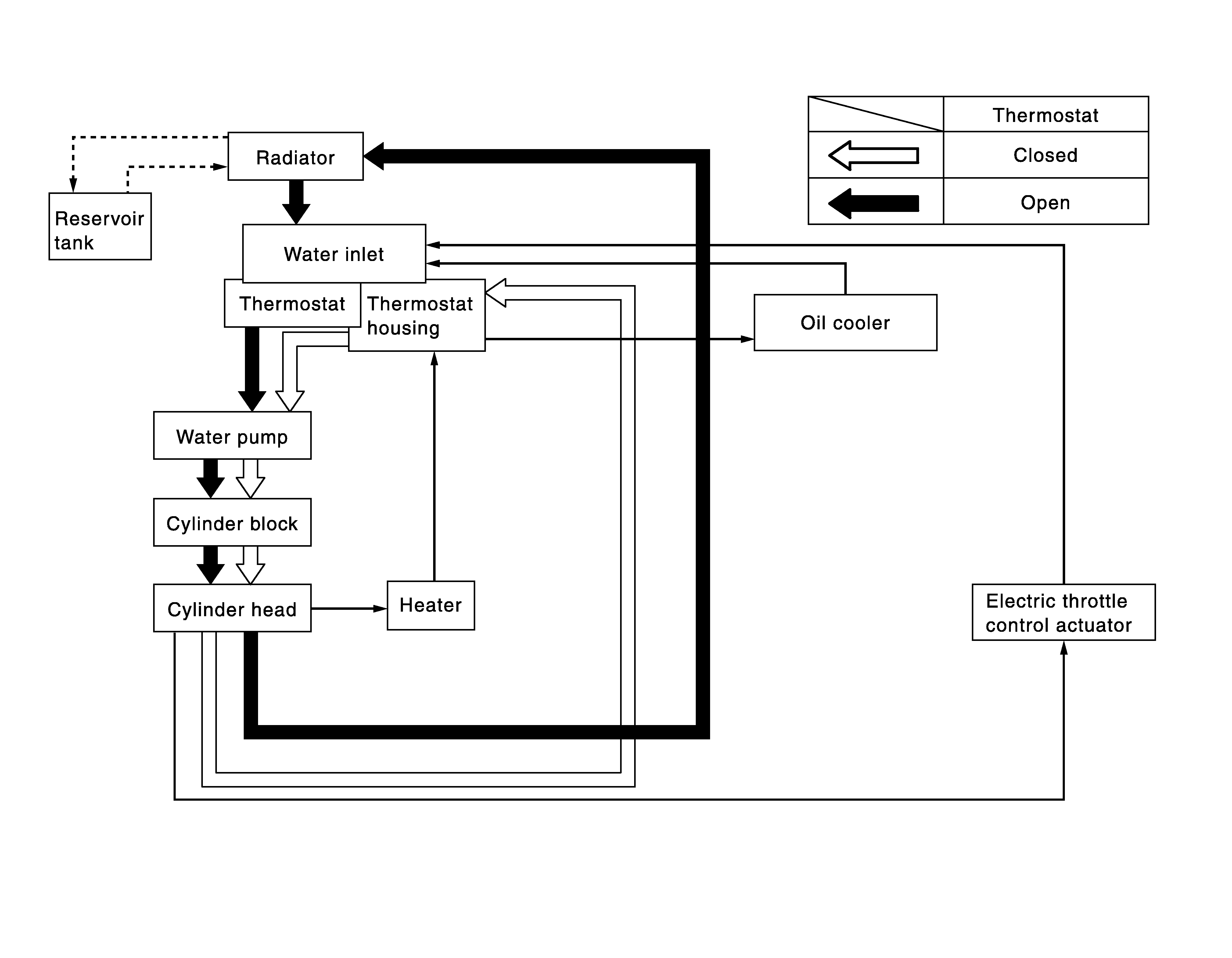

Fig 1: Engine Cooling System Schematic

G05983728

Courtesy of NISSAN NORTH AMERICA, INC.
