Total Illumination Control Unit Connector End View (M129)

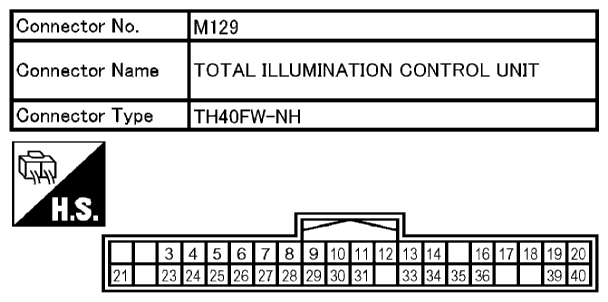

Fig 1: Total Illumination Control Unit Connector End View (M129)

G10671169

Courtesy of NISSAN NORTH AMERICA, INC.
