Sun Roof Unit Assembly
>>
Exploded View
>>
Removal
Exploded View: Removal

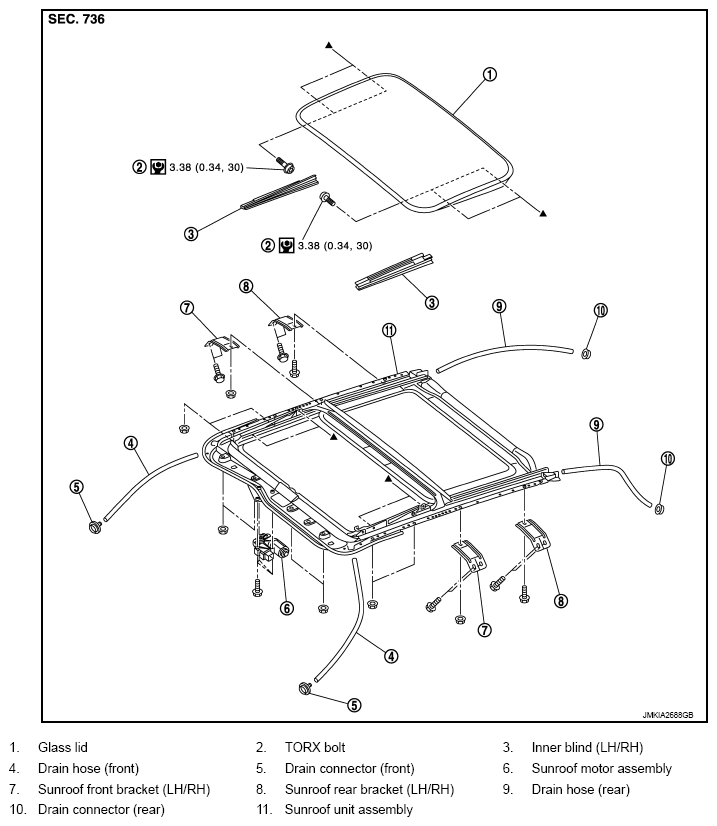

Fig 1: Exploded View Of Sun Roof Unit Assembly With Torque Specifications
Courtesy of NISSAN NORTH AMERICA, INC.
Refer to "
COMPONENTS
" for symbols in the figure.
