Engine Control System (VK50VE) - FX50 - Component & System Checks, Ecu & Symptom Diagnosis, Precautions & Preparation, Periodic Maintenance, Service Data And Specifications (SDS)
>>
Symptom Diagnosis
>>
Engine Control System Symptoms
>>
Symptom Table
>>
System - Basic Engine Control System
System - Basic Engine Control System

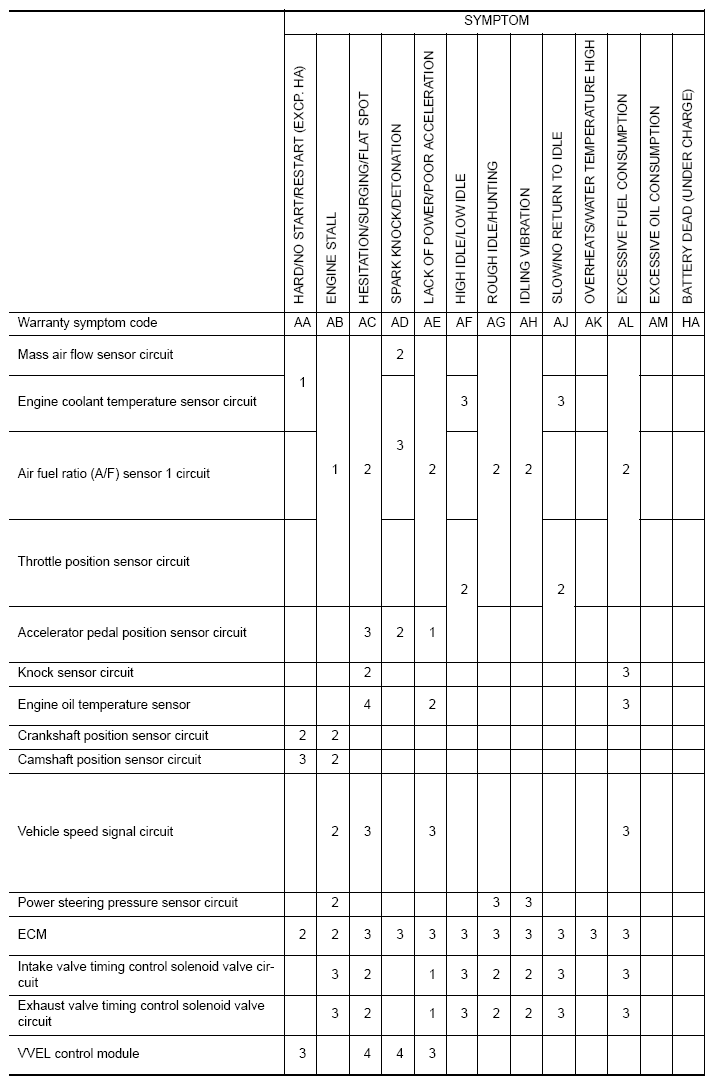

Fig 1: Engine Control System Symptoms Chart (1 Of 3)
Courtesy of NISSAN NORTH AMERICA, INC.

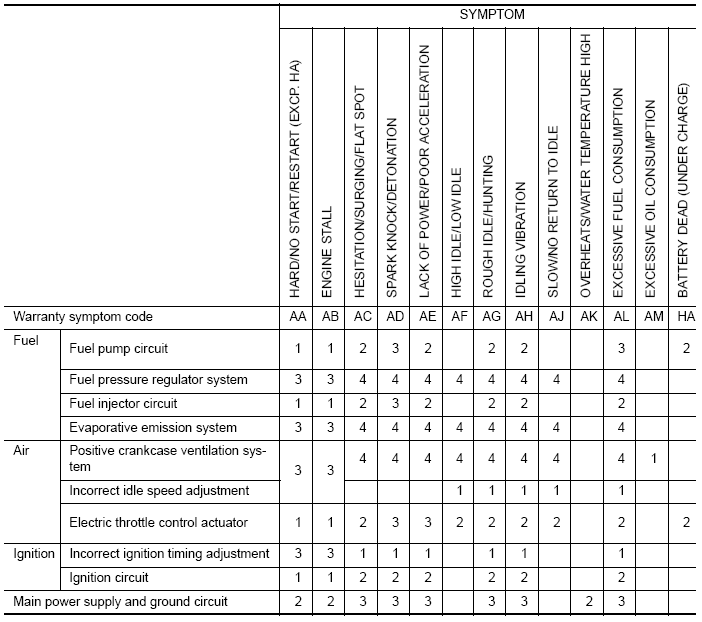

Fig 2: Engine Control System Symptoms Chart (2 Of 3)
Courtesy of NISSAN NORTH AMERICA, INC.

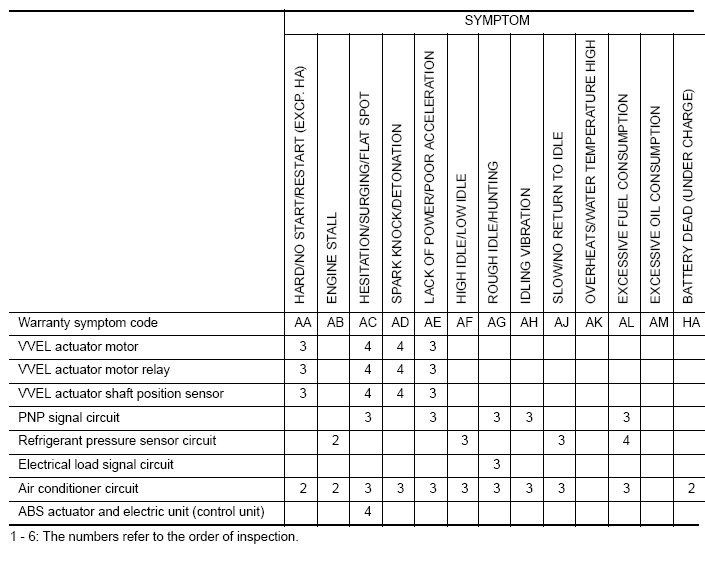

Fig 3: Engine Control System Symptoms Chart (3 Of 3)
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
