Home >> Infiniti >> 2012 >> FX50 >> Repair and Diagnosis (Single Page) >> Accessories & Equipment >> Drivers Assistance Systems - ADAS >> Driver Assistance System (DCA) >> Removal And Installation >> ICC Sensor Integrated Unit >> Exploded View

Exploded View

CAUTION: Always perform the laser beam aiming adjustment and check the operation after the replacement, removal and installation of ICC sensor integrated unit.

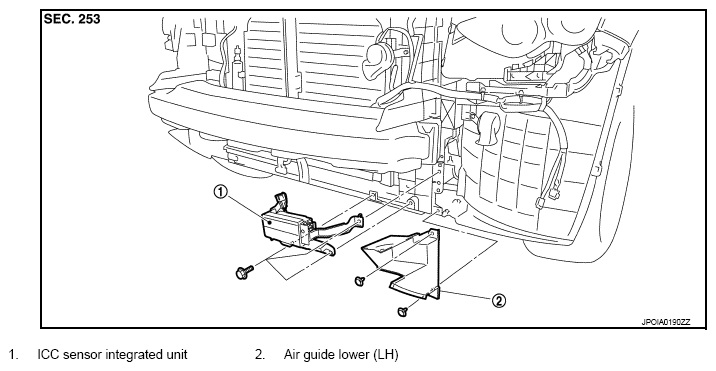

Fig 1: Exploded View Of ICC Sensor Integrated Unit
G08228269Courtesy of NISSAN NORTH AMERICA, INC.
