Clutch And Band Chart

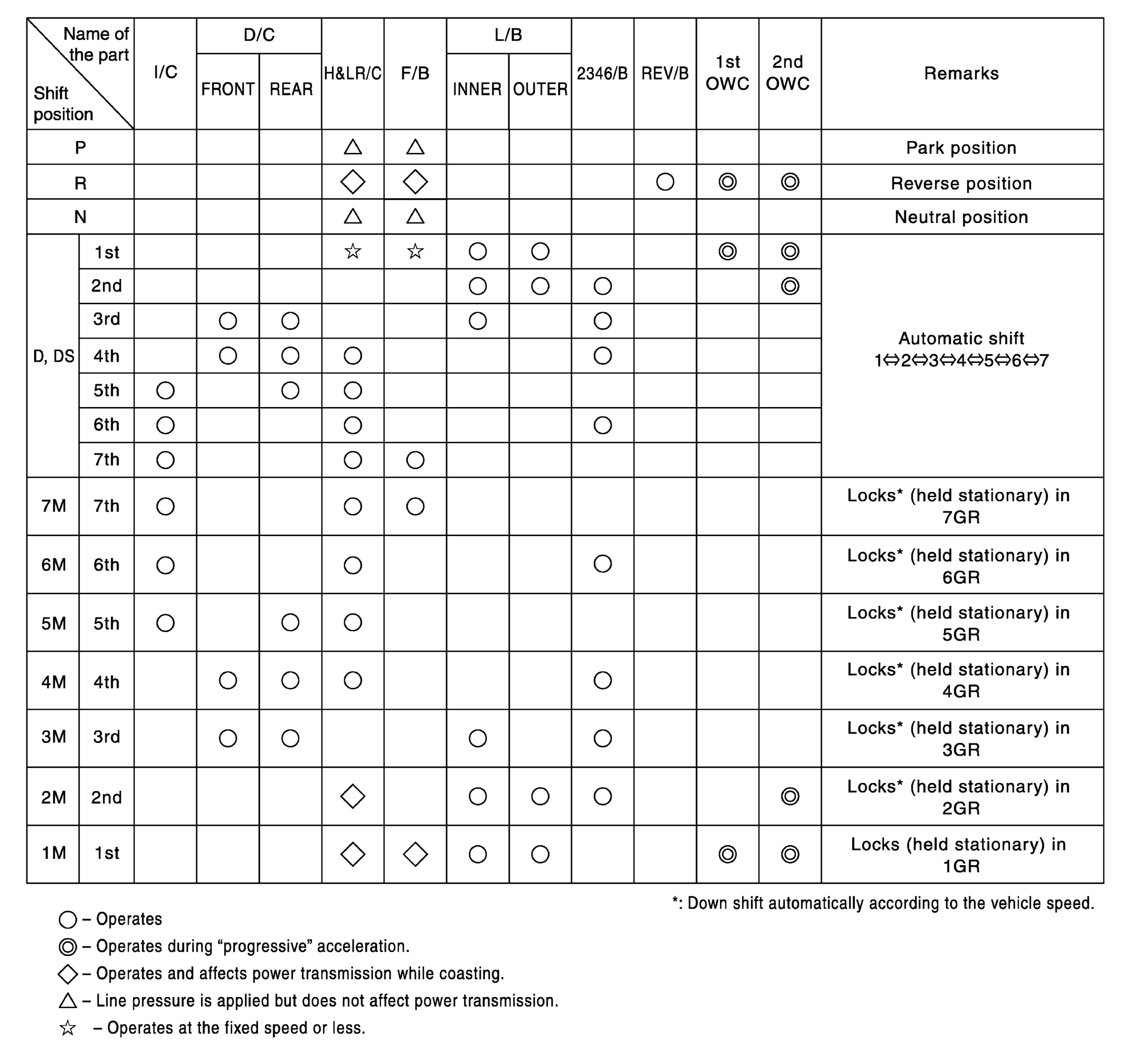

Fig 1: Shift Mechanism Clutch And Band Chart

G06621713

Courtesy of NISSAN NORTH AMERICA, INC.
