Switch And Their Control Function

WARNING: This page is about a different car, the 2011 Nissan Murano. However, it is still accessible from the selected car via links, so may be relevant.

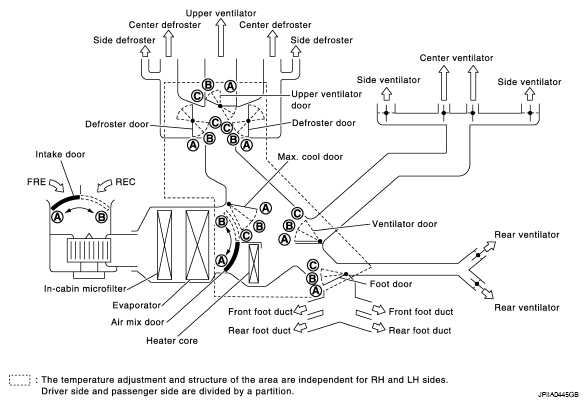

Fig 1: Switches Control Function Diagram
G05890204Courtesy of NISSAN MOTOR CO., U.S.A.

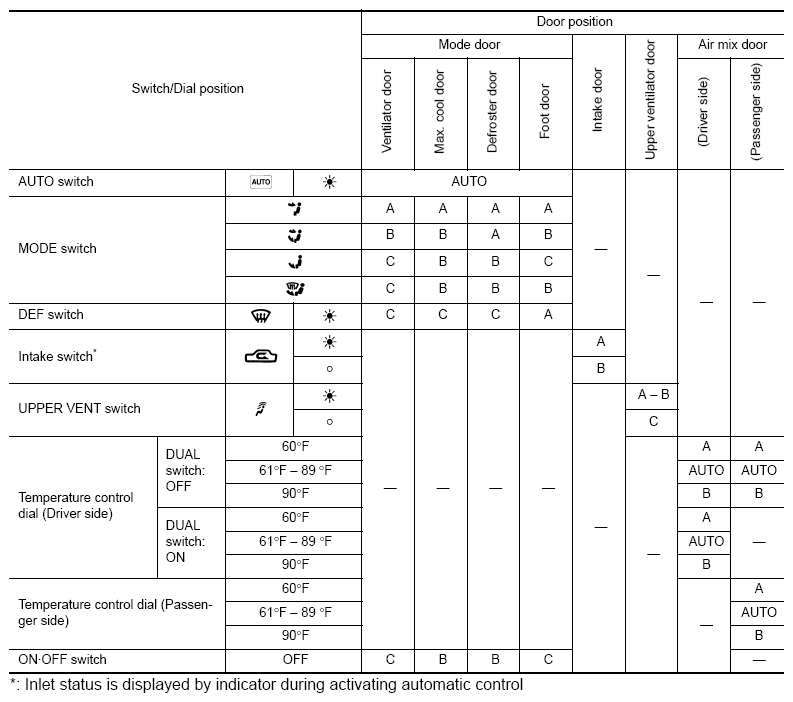

Fig 2: Switch/Dial Position Information
G07132269Courtesy of NISSAN MOTOR CO., U.S.A.
