Rear Timing Chain Case: Disassembly

WARNING: This page is about a different car, the 2011 Infiniti FX35. However, it is still accessible from the selected car via links, so may be relevant.

Remove front timing chain case and timing chain. Refer to "REMOVAL AND INSTALLATION ".
Remove water pump. Refer to "EXPLODED VIEW ".
Remove oil pan (upper). Refer to "2WD : EXPLODED VIEW " (2WD models) or "AWD : EXPLODED VIEW " (AWD models).
Remove rear timing chain case as per the following:
1. Loosen and remove mounting bolts in reverse order as shown in the illustration.
2. Cut liquid gasket using the seal cutter [SST: KV10111100 (J-37228)] and remove rear timing chain case.

  Fig 1: Identifying Rear Timing Chain Case Mounting Bolts Tightening Sequence
  Courtesy of NISSAN MOTOR CO., U.S.A.
  CAUTION:
  - Never remove plate metal cover (1) of oil passage.
  - After removal, handle rear timing chain case carefully so it does not tilt, cant, or warp under a load.

    Fig 2: Identifying Plate Metal Cover Of Oil Passage
    Courtesy of NISSAN MOTOR CO., U.S.A.

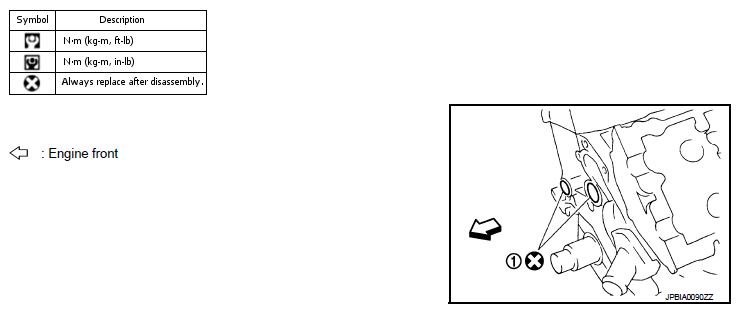

Remove O-rings (1) from cylinder block.

Fig 3: Identifying O-Rings In Cylinder Block
Courtesy of NISSAN MOTOR CO., U.S.A.
Remove timing chain tensioners (secondary) from cylinder head as per the following, if necessary.
1. Remove camshaft brackets (No. 1). Refer to "EXPLODED VIEW ".
2. Remove timing chain tensioners (secondary) with a stopper pin (A) attached.

  Fig 4: Identifying Stopper Pin
  Courtesy of NISSAN MOTOR CO., U.S.A.
