AWD: Exploded View

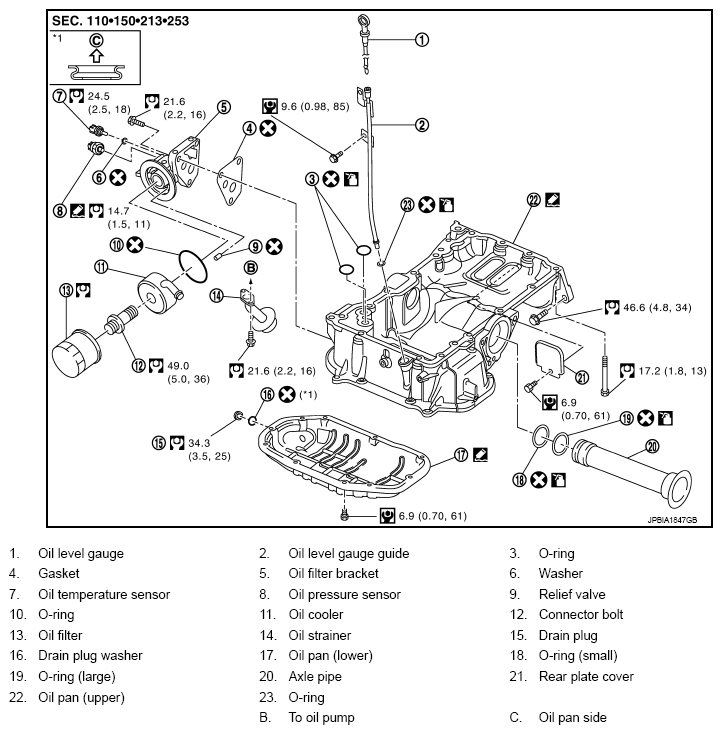

Fig 1: Oil Pan (Upper) With Torque Specifications (AWD)

G08209772

Courtesy of NISSAN NORTH AMERICA, INC.

Refer to "COMPONENTS " for symbols in the figure.
