VK50VE: Exploded View: Disassembly

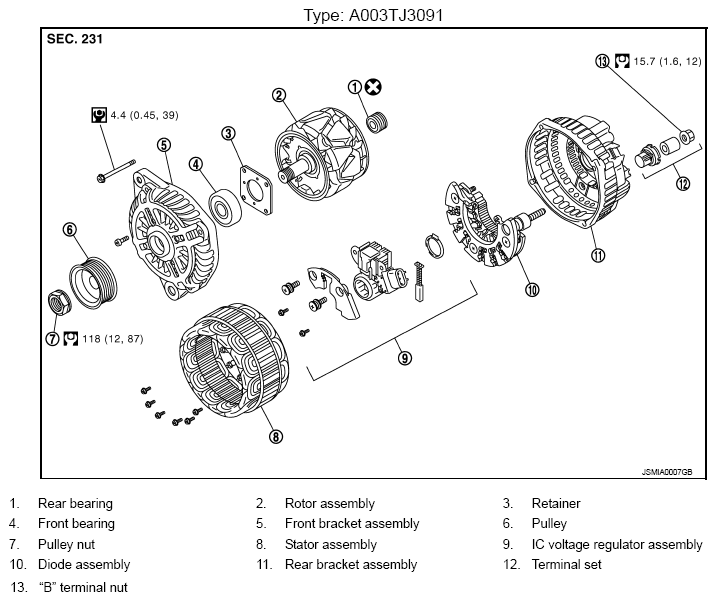

Fig 1: Disassemble View Of Alternator (Type: A003TJ3091) With Torque Specifications
G08229718Courtesy of NISSAN NORTH AMERICA, INC.

Refer to "COMPONENTS " for symbols in the figure.
