VK50VE: Exploded View

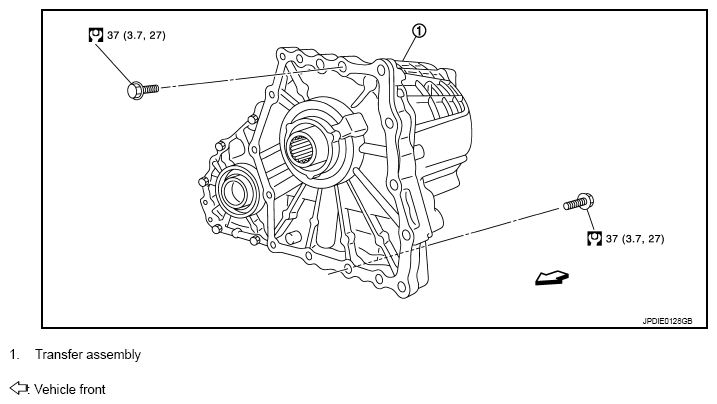

Fig 1: Transfer Assembly And Mounting Bolts With Torque Specifications (VK50VE)

G08229129

Courtesy of NISSAN NORTH AMERICA, INC.

Refer to "COMPONENTS " for symbols in the figure.
