Symptom Table 2

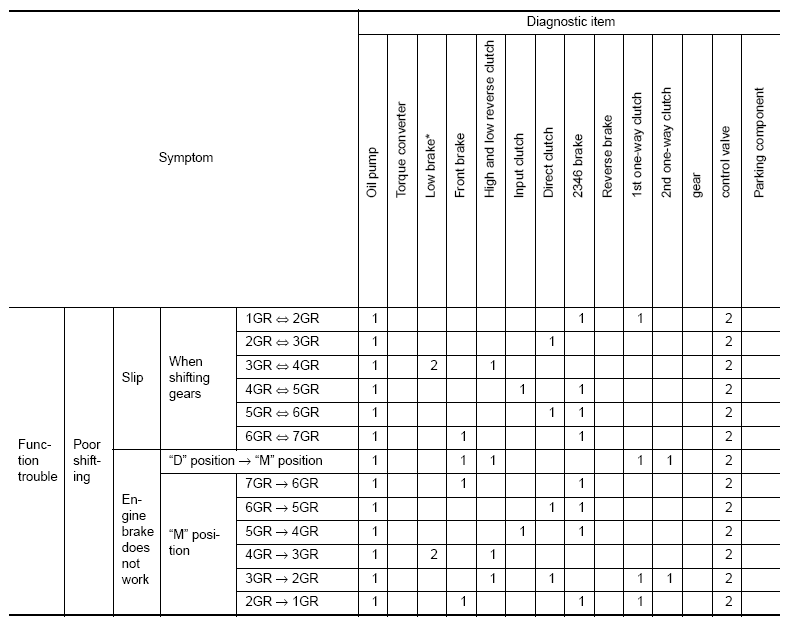

Fig 1: Symptom Chart 2 (1 Of 5)

Courtesy of NISSAN NORTH AMERICA, INC.

*: Parts behind drum support are impossible to perform inspection by disassembly. Refer to "Cross-Sectional View ".

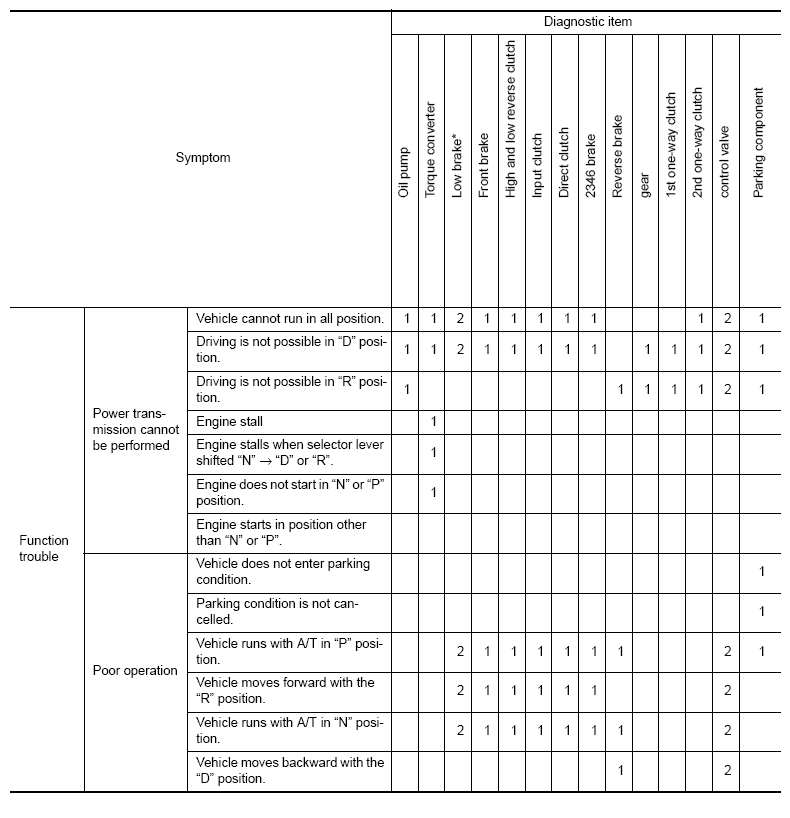

Fig 2: Symptom Chart 2 (2 Of 5)

Courtesy of NISSAN NORTH AMERICA, INC.

*: Parts behind drum support are impossible to perform inspection by disassembly. Refer to "Cross-Sectional View ".

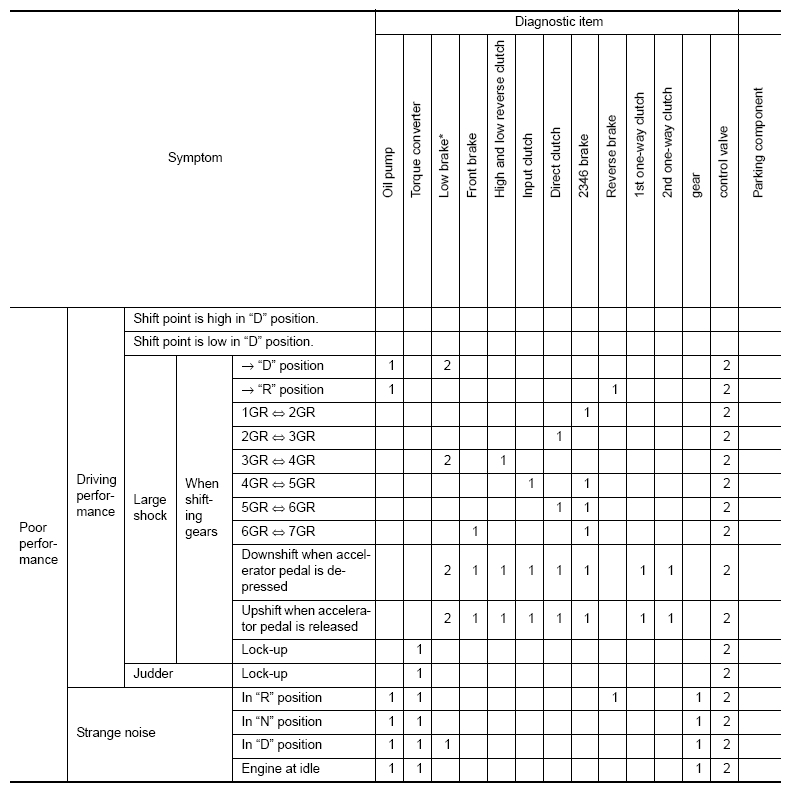

Fig 3: Symptom Chart 2 (3 Of 5)

Courtesy of NISSAN NORTH AMERICA, INC.

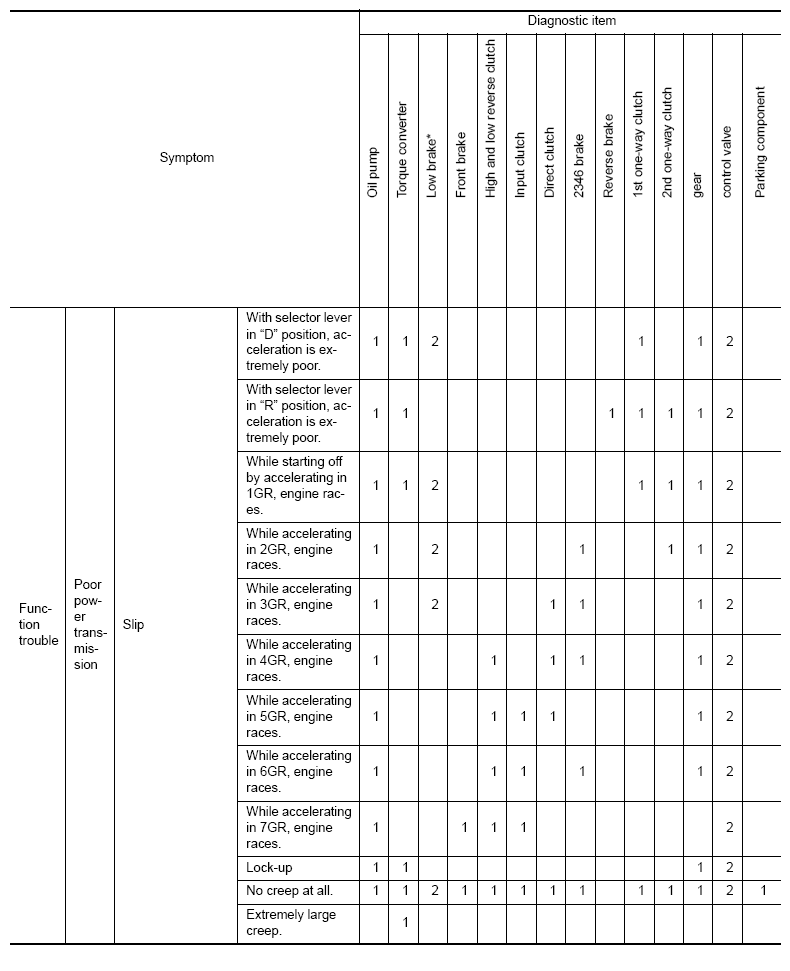

Fig 4: Symptom Chart 2 (4 Of 5)

Courtesy of NISSAN NORTH AMERICA, INC.

*: Parts behind drum support are impossible to perform inspection by disassembly. Refer to "Cross-Sectional View ".

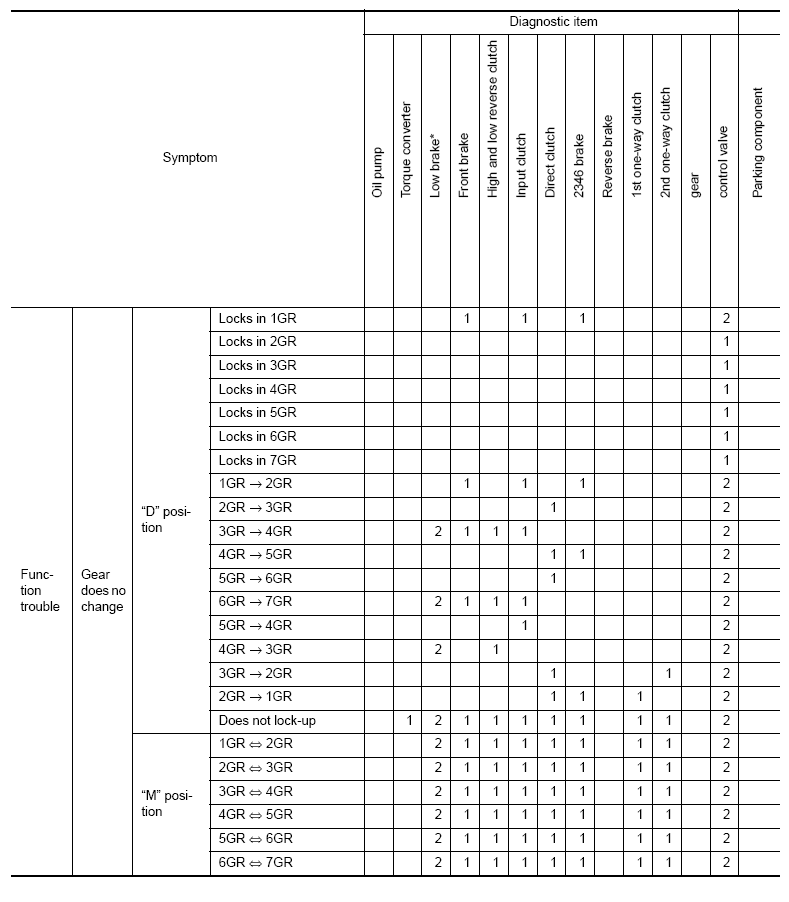

Fig 5: Symptom Chart 2 (5 Of 5)

Courtesy of NISSAN NORTH AMERICA, INC.

*: Parts behind drum support are impossible to perform inspection by disassembly. Refer to "Cross-Sectional View ".
