System Symptom
>>
Symptom Table
>>
Symptom Table 1
Symptom Table 1

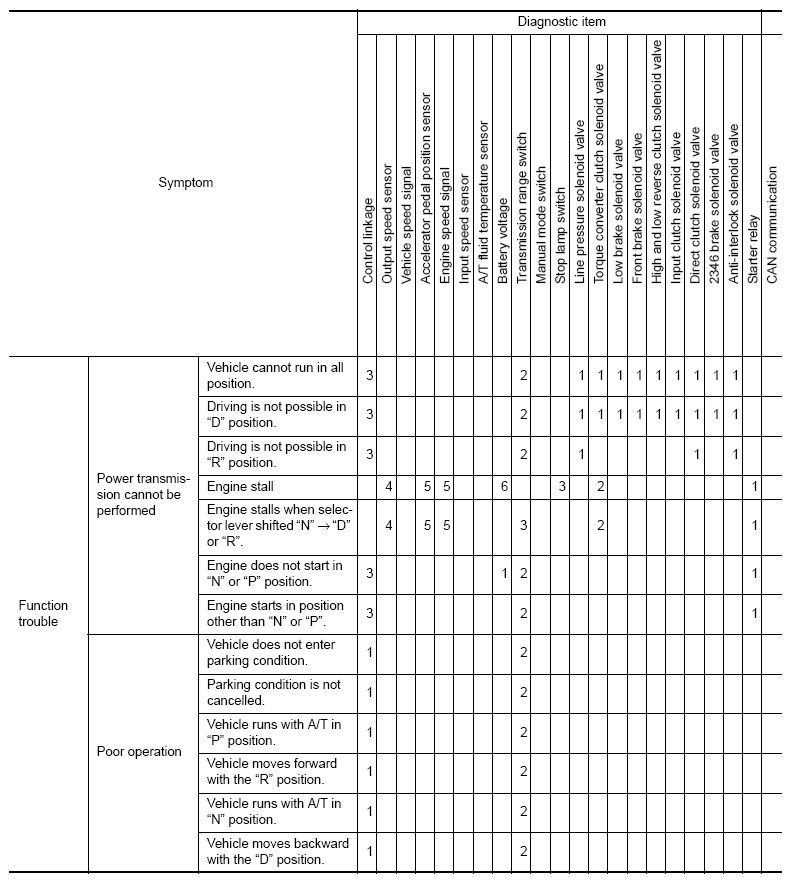

Fig 1: Symptom Chart 1 (1 Of 5)
Courtesy of NISSAN NORTH AMERICA, INC.

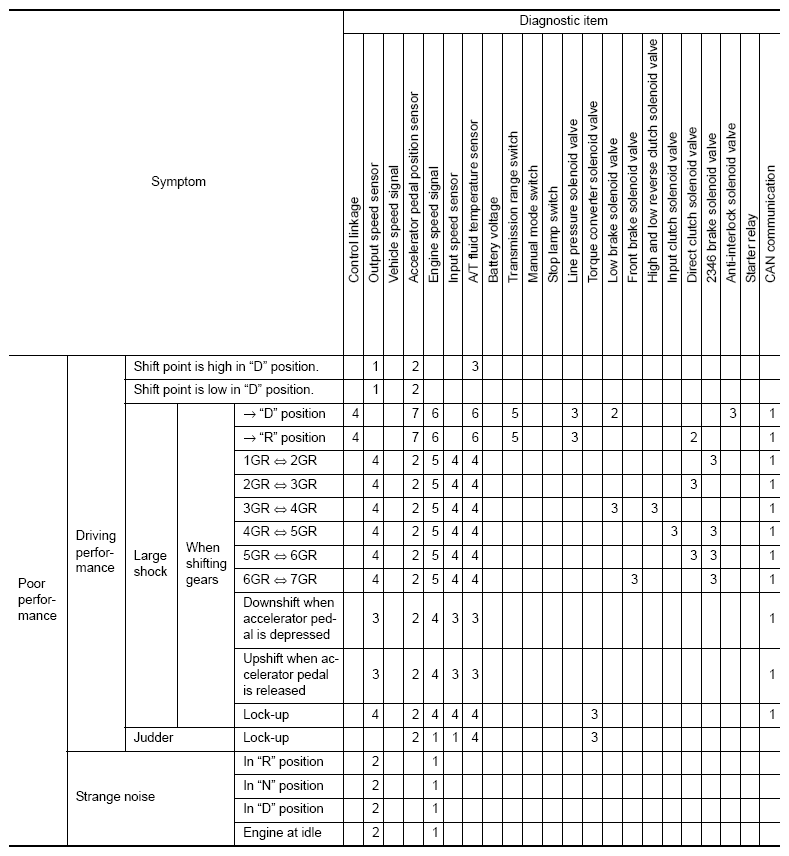

Fig 2: Symptom Chart 1 (2 Of 5)
Courtesy of NISSAN NORTH AMERICA, INC.

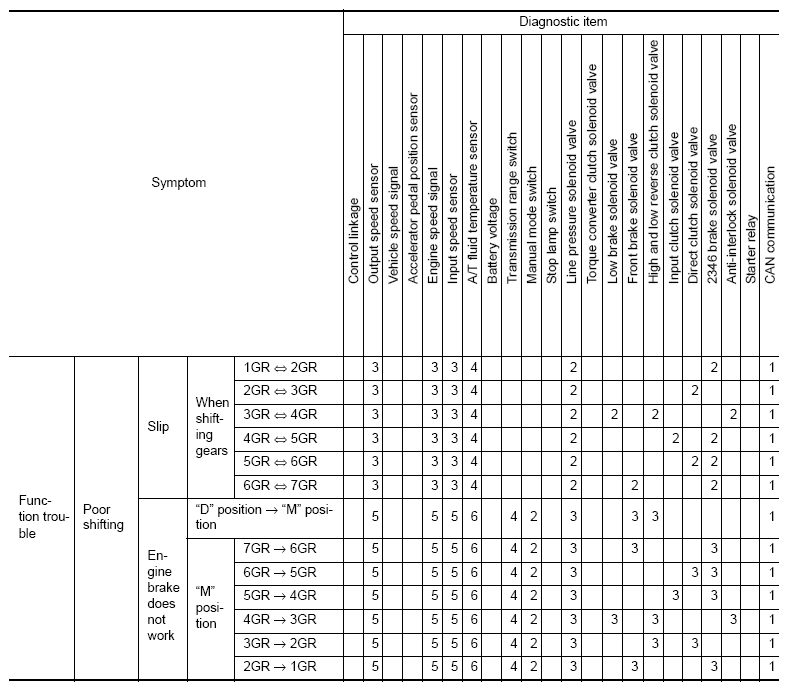

Fig 3: Symptom Chart 1 (3 Of 5)
Courtesy of NISSAN NORTH AMERICA, INC.

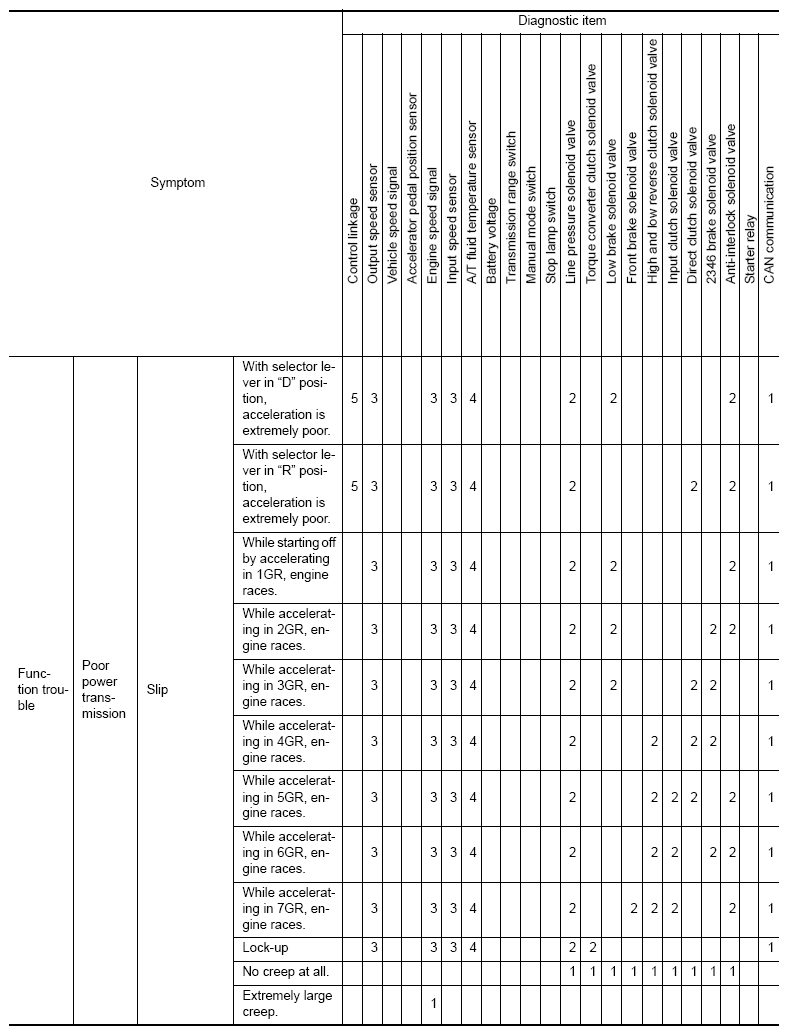

Fig 4: Symptom Chart 1 (4 Of 5)
Courtesy of NISSAN NORTH AMERICA, INC.

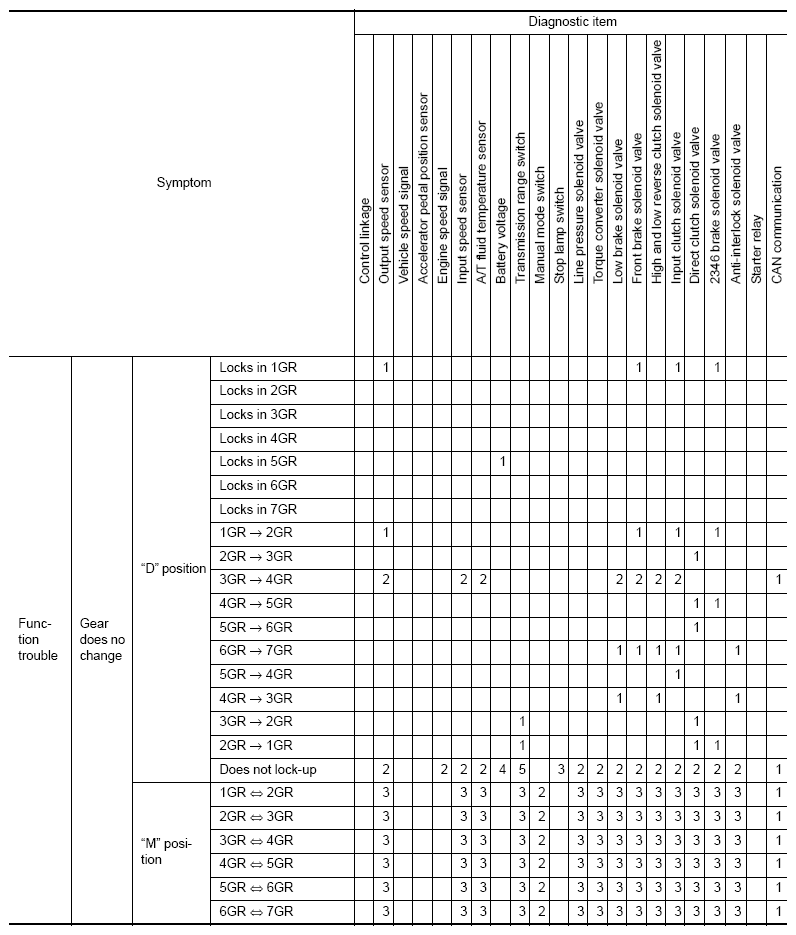

Fig 5: Symptom Chart 1 (5 Of 5)
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
