AWD: Exploded View

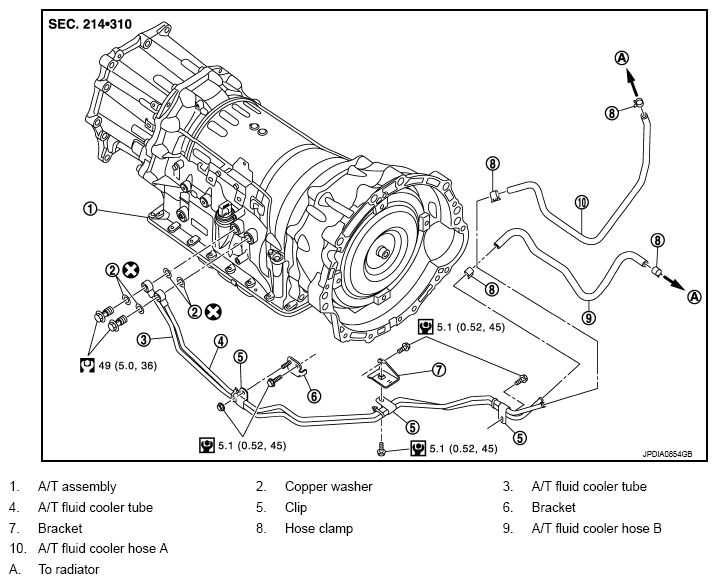

Fig 1: Exploded View Of Fluid Cooler System (AWD) With Torque Specifications

G08217340

Courtesy of NISSAN NORTH AMERICA, INC.

Refer to "COMPONENTS " for symbols in the figure.
