Removal and Installation: Installation

WARNING: This page is about a different car, the 2011 Infiniti EX35. However, it is still accessible from the selected car via links, so may be relevant.

Note the following, and install in the reverse order of removal.

CAUTION:

Replace water hose clamp if it is removed.
Use genuine mounting bolts for the cooling fan assembly and strictly observe the tightening torque. (Breakage prevention for radiator)

NOTE:

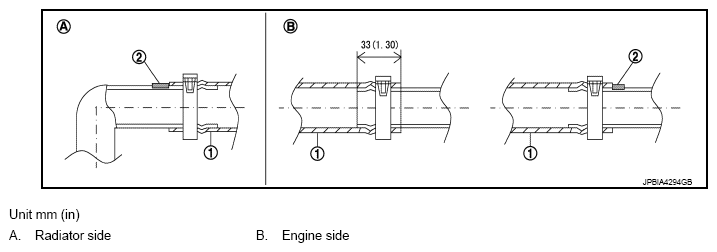

Insert the radiator hose (1) all the way to the stopper (2) or by 33 mm (1.30 in) (hose without a stopper).

Fig 1: Inserting Radiator Hose

Courtesy of NISSAN MOTOR CO., U.S.A.

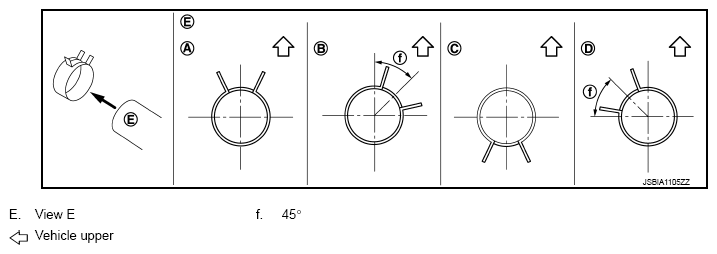

For the orientation of the hose clamp pawl, refer to the figure.

HOSE SPECIFICATION

Radiator hose

Hose end

Paint mark

Position of hose clamp⁽¹⁾

Radiator hose (upper)

Radiator side

Upper

Engine side

Upper

Radiator hose (lower)

Radiator side

Lower

Engine side

Right side

⁽¹⁾	Refer to the illustrations for the specific position each hose clamp tab.

Fig 2: Identifying Hose Clamp Position

Courtesy of NISSAN MOTOR CO., U.S.A.

The angle (b) created by the hose clamp pawl and the specified line (A) must be within ±30° as shown in the illustration.

Fig 3: Identifying Angles Of Hose Clamp Pawl
Courtesy of NISSAN MOTOR CO., U.S.A.
To install hose clamps (1), check that the dimension (A) from the end of the paint mark (2) on the radiator hose to the hose clamp is within the reference value.

Dimension "A" (-1) - (+1) mm

Fig 4: Identifying Dimension From End Of Paint Mark On Radiator Hose To Hose Clamp

Courtesy of NISSAN MOTOR CO., U.S.A.
