Temperature Setting Trimmer: Description

WARNING: This page is about a different car, the 2011 Infiniti EX35. However, it is still accessible from the selected car via links, so may be relevant.

The trimmer compensates for differences in range of ±3°C (±6°F) between temperature setting (displayed digitally) and temperature felt by customer.

Operating procedures for this trimmer are as per the following:

Begin self-diagnosis STEP-5 mode. Refer to "DIAGNOSIS DESCRIPTION ".
Press fan (UP: +) switch to set system in auxiliary mode.
Display shows "61" in auxiliary mechanism. It takes approximately 3 seconds to enable setting operation.
Turn temperature control dial (driver side) as desired. Temperature will change at a rate of 0.5°C (1.0°F) each time a dial is turned.
CAUTION: A decimal point is not indicated on the display.

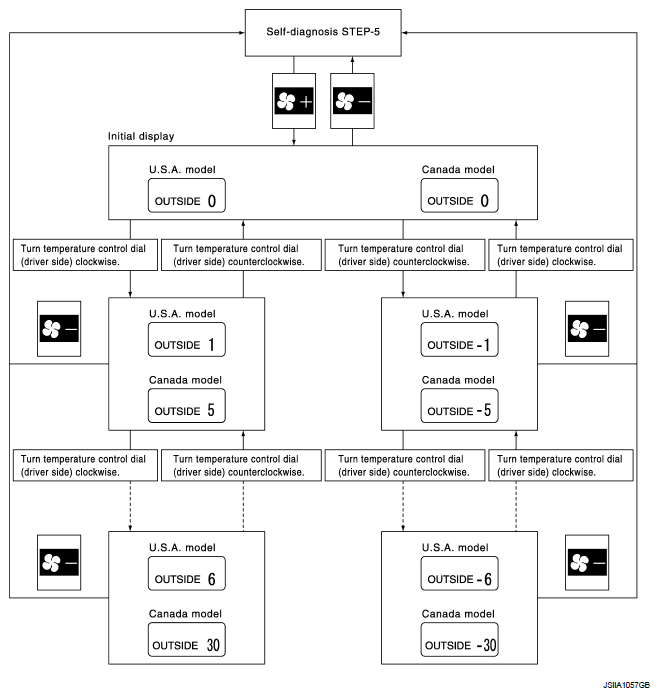

Fig 1: Operating Procedures Flow Chart
Courtesy of NISSAN MOTOR CO., U.S.A.

When battery cable is disconnected or battery voltage is below 10 V, trimmer operation is canceled. Temperature set becomes that of initial condition, i.e. 0°C (0°F).
