VQ35HR: Exploded View: Disassembly

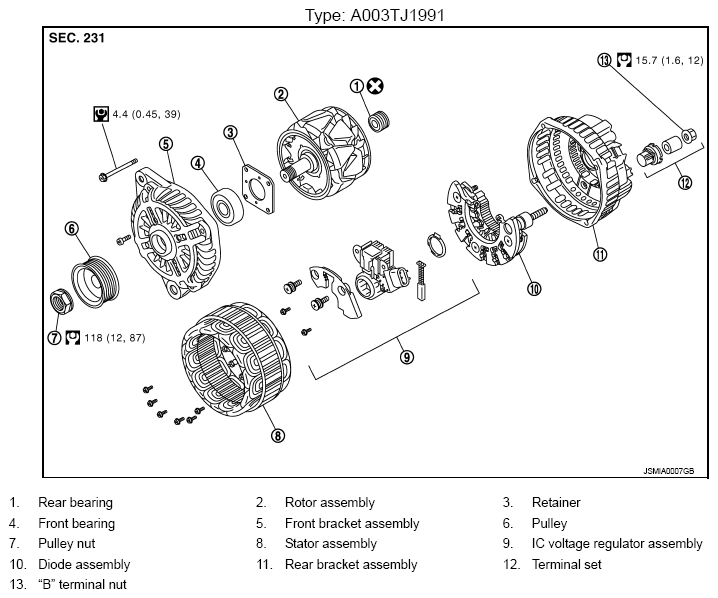

Fig 1: Disassemble View Of Alternator (Type A003TJ1991) With Torque Specifications
G08229710Courtesy of NISSAN NORTH AMERICA, INC.

Refer to "COMPONENTS " for symbols in the figure.
