Lumbar Support Switch Connector End View (B457)

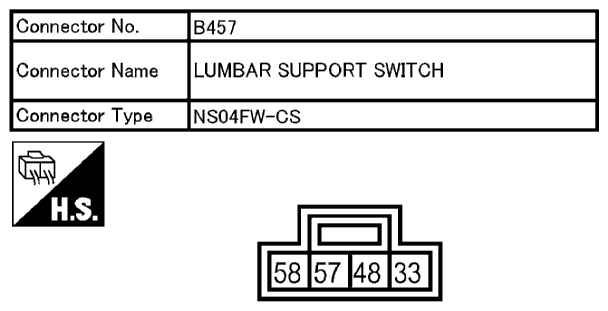

Fig 1: Lumbar Support Switch Connector End View (B457)

G10675400

Courtesy of NISSAN NORTH AMERICA, INC.
