Exhaust Valve Timing Control Position Sensor (Bank 1) Connector End View (F4)

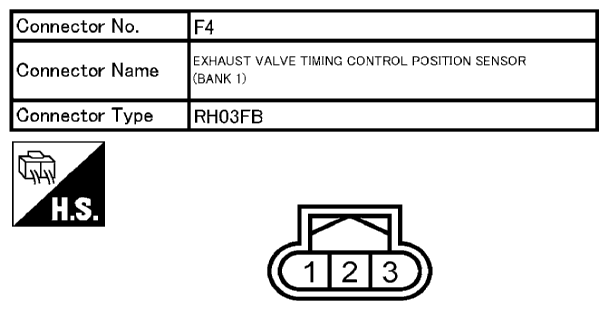

Fig 1: Exhaust Valve Timing Control Position Sensor (Bank 1) Connector End View (F4)
G10675489Courtesy of NISSAN NORTH AMERICA, INC.
