Exploded View
Exploded View

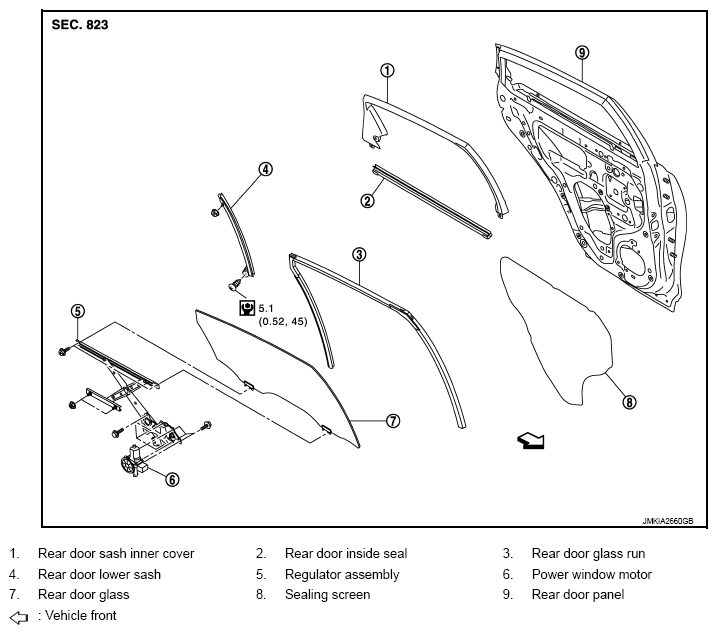

Fig 1: Exploded View Of Rear Regulator With Torque Specifications
Courtesy of NISSAN NORTH AMERICA, INC.
Refer to "
COMPONENTS
" for the symbols in the figure.
