Removal and Installation: Removal

Remove front door finisher. Refer to "REMOVAL AND INSTALLATION ".
Remove front door sash inner cover.
Remove front door inside seal.
Remove the front door grip bracket. Refer to "EXPLODED VIEW ".

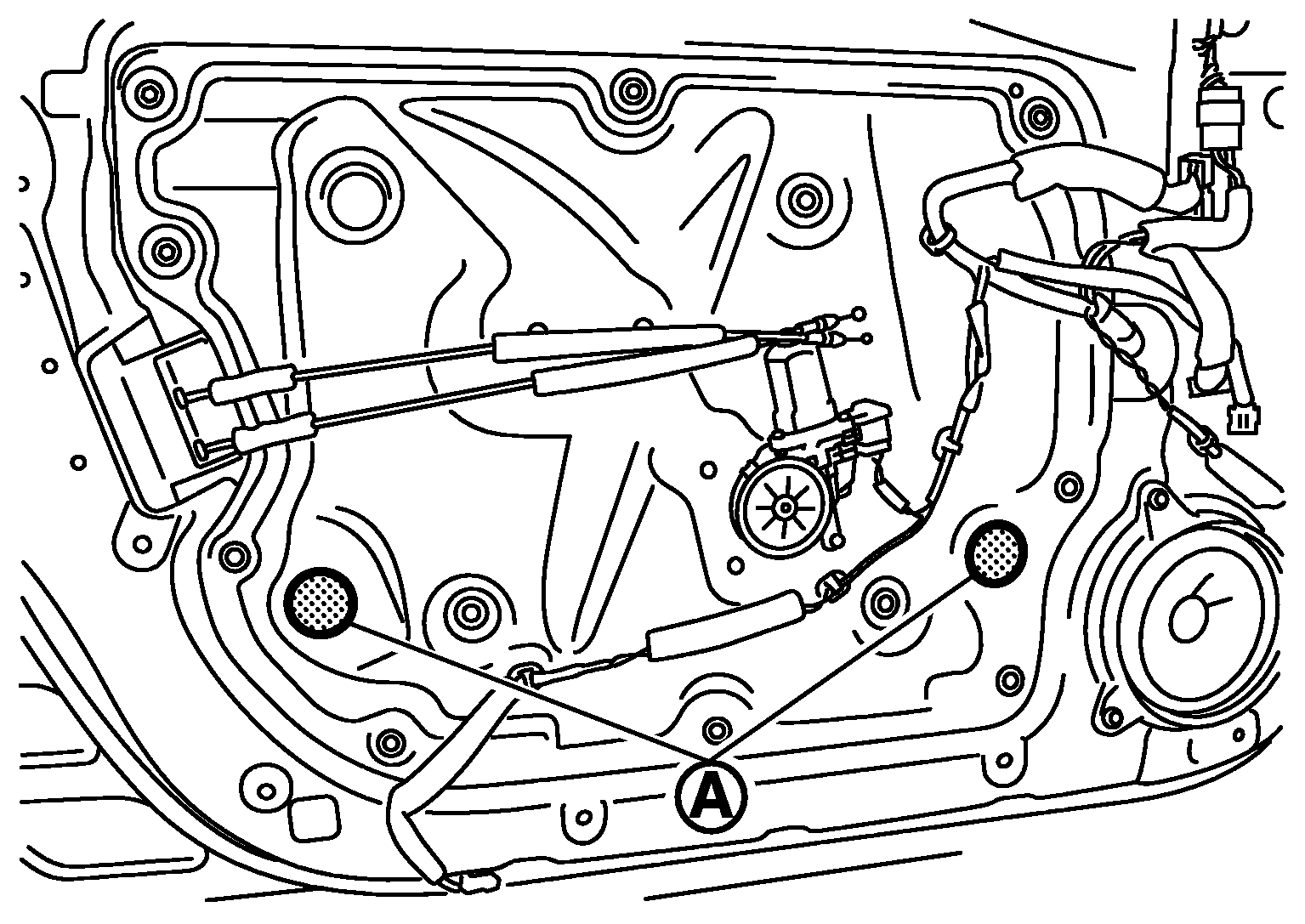

Remove both seals (A) as shown in the figure.

Fig 1: Identifying Front Door Inside Seal
Courtesy of NISSAN NORTH AMERICA, INC.
Reconnect the power window main switch and then operate the power window main switch to raise or lower the door window until the glass mounting bolts can be seen.

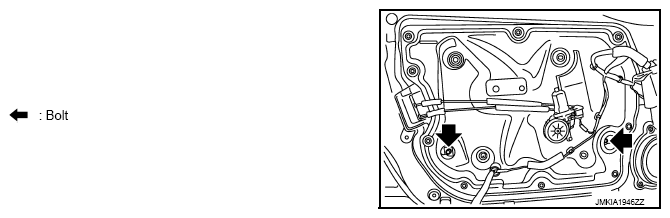

Remove the front door glass mounting bolts.

Fig 2: Locating Front Door Glass Mounting Bolts
Courtesy of NISSAN NORTH AMERICA, INC.

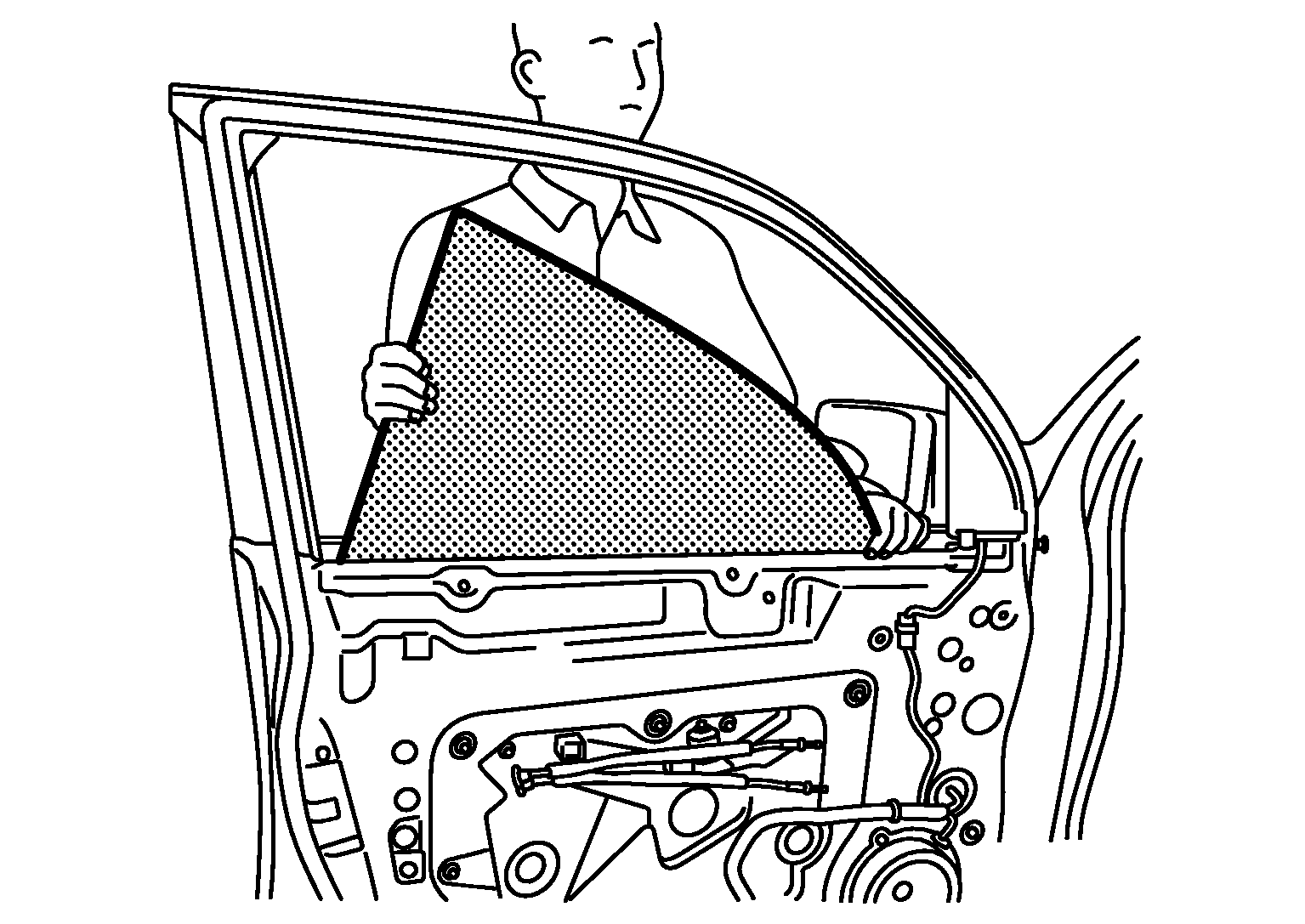

Hold securely the front door glass and pull it out of the sash to remove the door glass.

Fig 3: Removing Door Glass

Courtesy of NISSAN NORTH AMERICA, INC.
