Infiniti
>>
2012
>>
EX35 Base, RWD
>>
Repair and Diagnosis
>>
Steering
>>
Power Steering
>>
Steering System
>>
Removal And Installation
>>
Power Steering Oil Pump
>>
Exploded View
>>
Removal
Exploded View: Removal

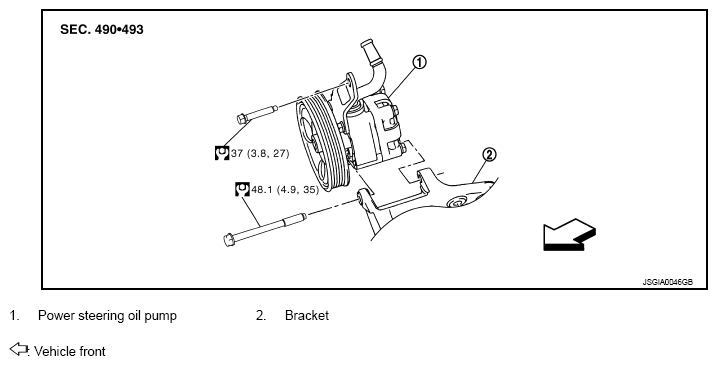

Fig 1: Exploded View Of Power Steering Oil Pump With Torque Specifications
Courtesy of NISSAN NORTH AMERICA, INC.
Refer to "
COMPONENTS
" for symbols in the figure.
