Symptom Table 1
Symptom Table 1

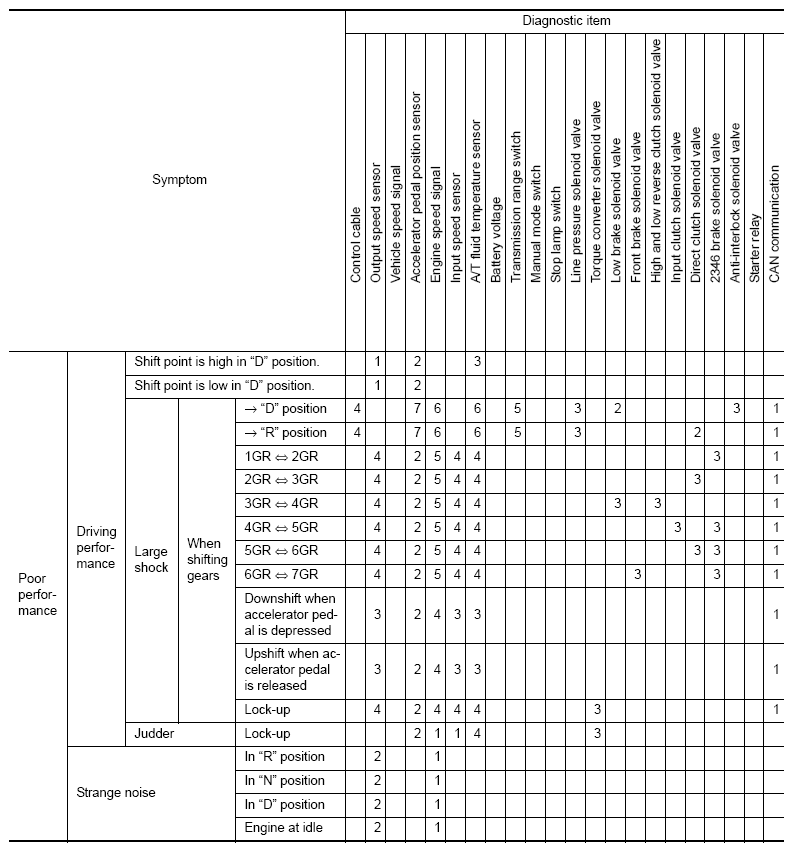

Fig 1: Transmission Symptom 1 Chart (1 Of 5)
Courtesy of NISSAN NORTH AMERICA, INC.

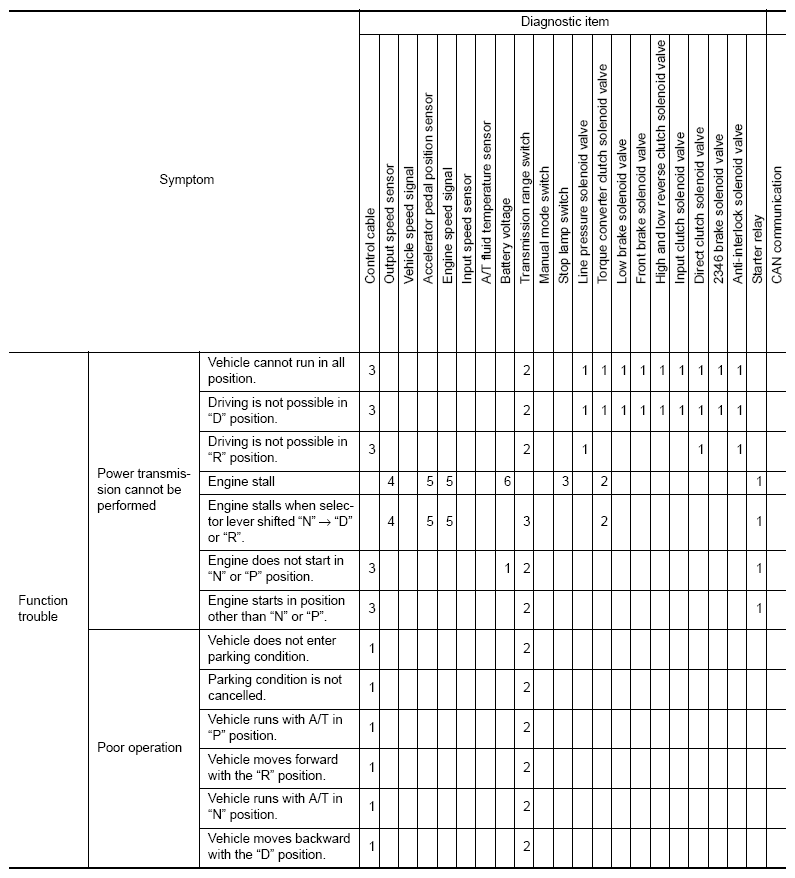

Fig 2: Transmission Symptom 1 Chart (2 Of 5)
Courtesy of NISSAN NORTH AMERICA, INC.

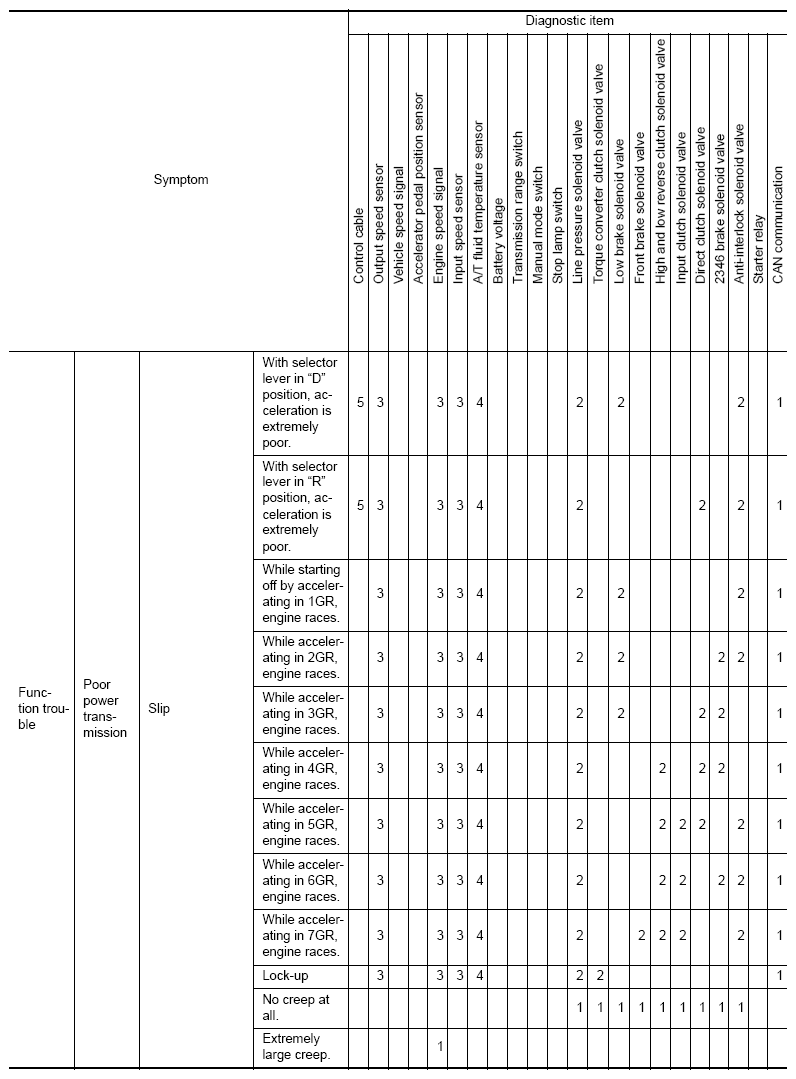

Fig 3: Transmission Symptom 1 Chart (3 Of 5)
Courtesy of NISSAN NORTH AMERICA, INC.

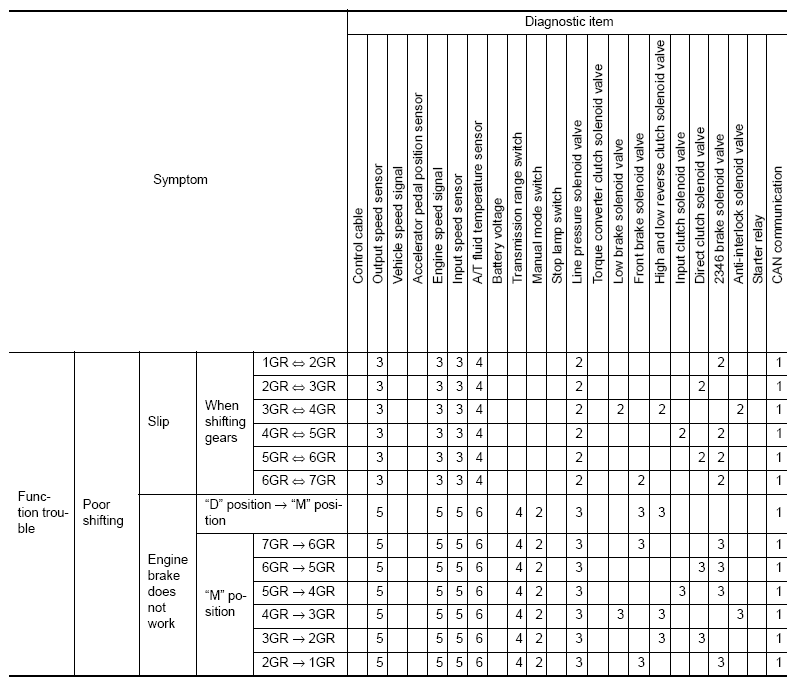

Fig 4: Transmission Symptom 1 Chart (4 Of 5)
Courtesy of NISSAN NORTH AMERICA, INC.

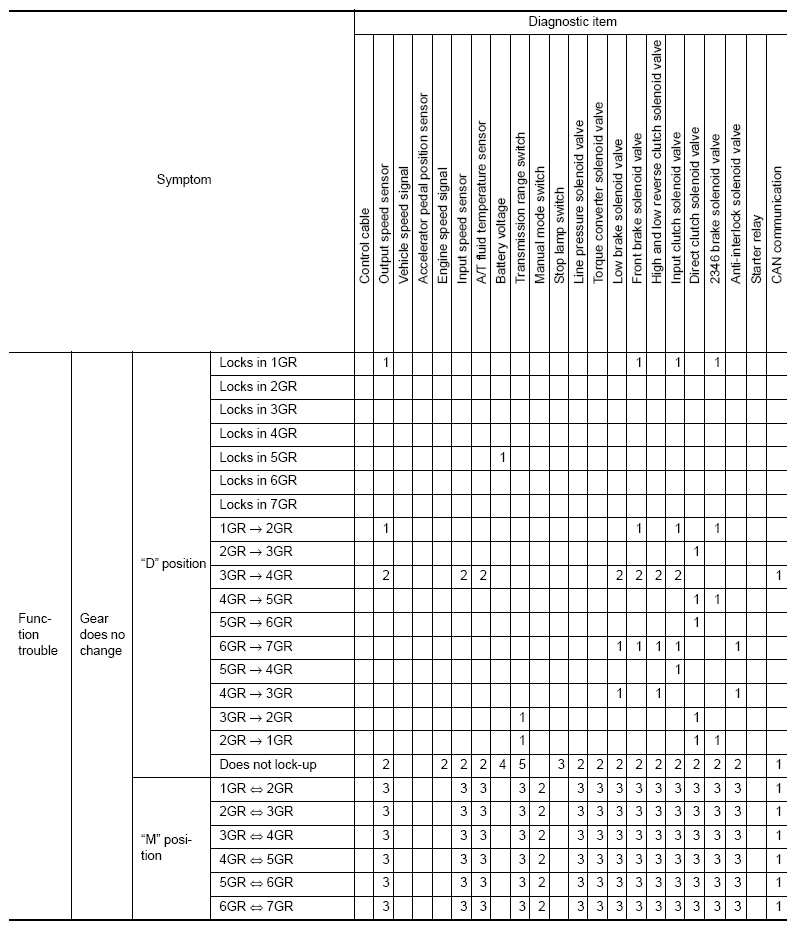

Fig 5: Transmission Symptom 1 Chart (5 Of 5)
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
