Removal and Installation: Installation

Note the following, and install in the reverse order of removal:

CAUTION:
  • Be careful not to damage connector when installing any connector.
  • Never reuse joint connector.
  • Apply ATF to O-ring of joint connector.
  • Never reuse drain plug and drain plug gasket. In addition, install new drain plug and drain plug gasket after adjustment of A/T fluid filling.
  • Refer to the following when installing the control valve & TCM to transmission case:
CAUTION:
  • Make sure that input speed sensor securely installs input speed sensor holes (A).
  • Hang down output speed sensor harness toward outside so as not to disturb installation of the control valve and TCM.
  • Adjust joint connector of the control valve and TCM to terminal hole of transmission case.
    Fig 1: Identifying Input Speed Sensor Holes
    G07013524Courtesy of NISSAN NORTH AMERICA, INC.

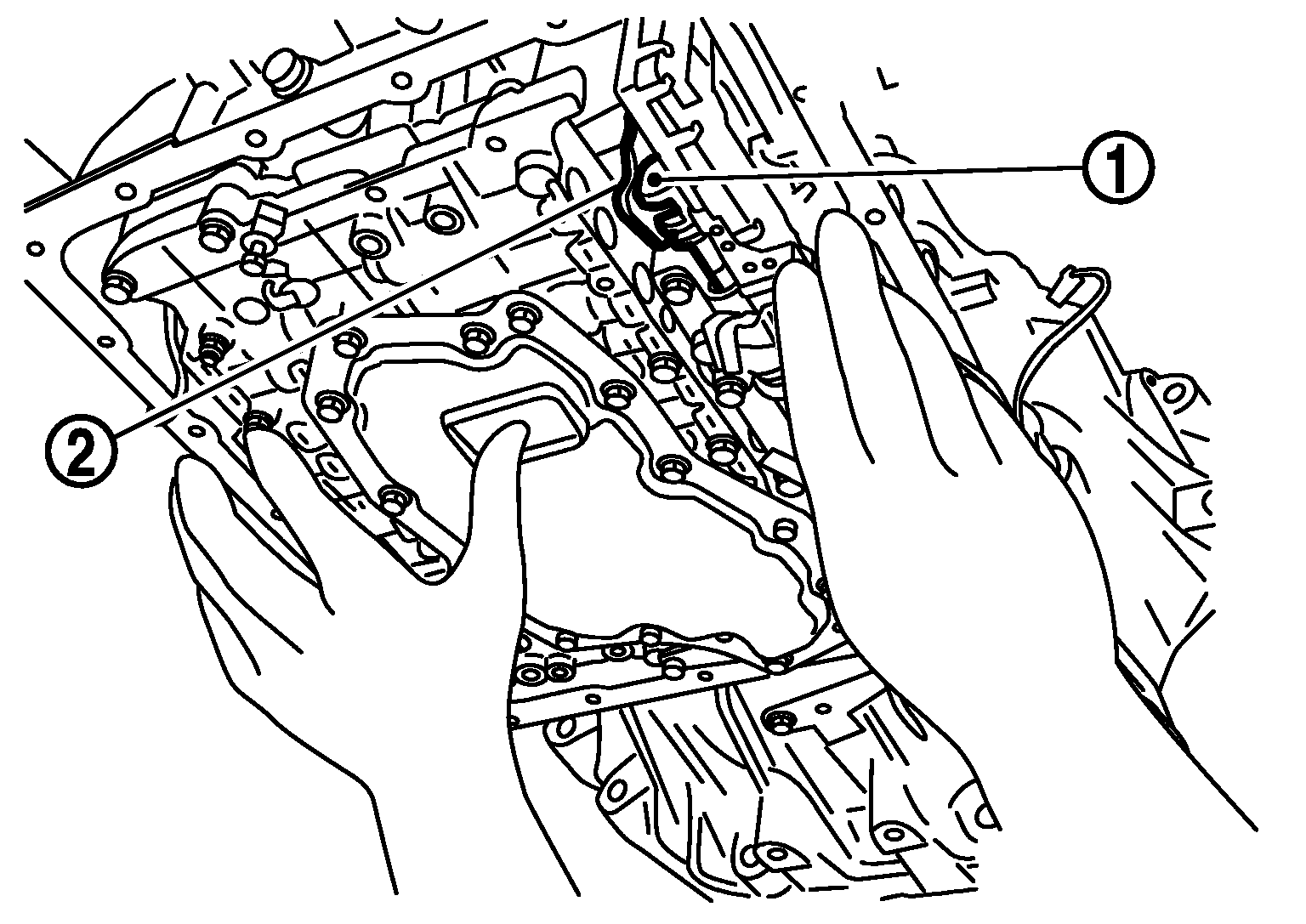

  • Assemble it so that manual valve (1) cutout is engaged with manual plate (2) projection.
Fig 2: Removing Control Valve And TCM From Transmission Case
G05218611Courtesy of NISSAN NORTH AMERICA, INC.

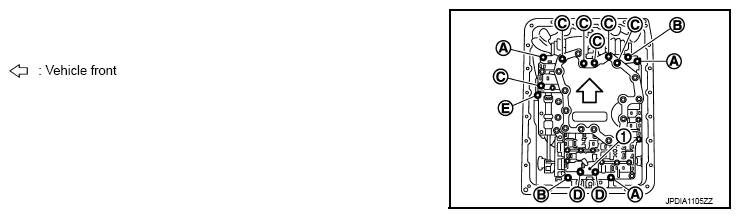

Fig 3: Identifying Control Valve And TCM Bolts
G08197134Courtesy of NISSAN NORTH AMERICA, INC.
Bolt symbol Length mm (in) Number of bolts
A 43 (1.69) 3
B 40 (1.57) 2
C 54 (2.13) 6
D 50 (1.97) 2
E(1) 50 (1.97) 1
(1) Reamer bolt

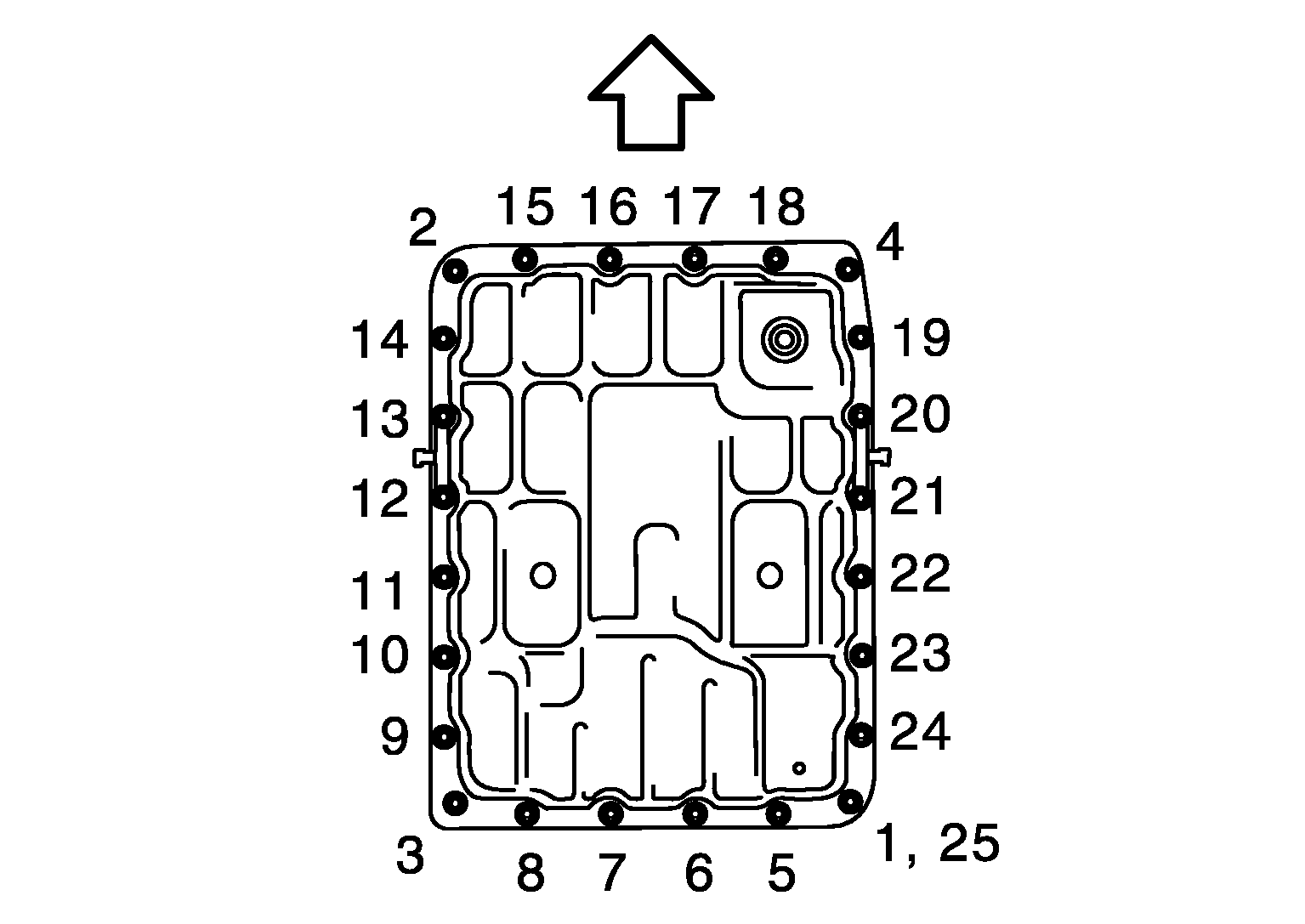

Fig 4: Identifying Oil Pan Mounting Bolts Tightening Sequence
G05980481Courtesy of NISSAN NORTH AMERICA, INC.
