Infiniti
>>
2012
>>
EX35 Base, AWD
>>
Repair and Diagnosis
>>
Steering
>>
Power Steering
>>
Steering Control System
>>
System Description
>>
EPS System
>>
System Diagram
>>
Cross-Sectional View
Cross-Sectional View

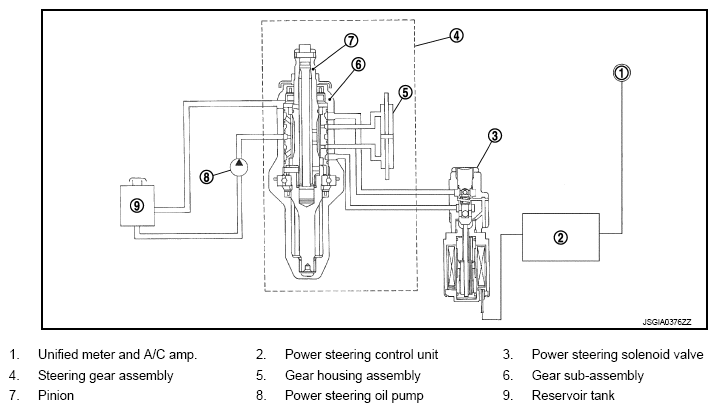

Fig 1: Cross Sectional View Of EPS System
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
