Connecting Rod Side Clearance

Measure the side clearance between connecting rod and crankshaft arm with a feeler gauge.
Standard and limit: Refer to "CYLINDER BLOCK ".
If the measured value exceeds the limit, replace connecting rod, and measure again. If it still exceeds the limit, replace crankshaft also.

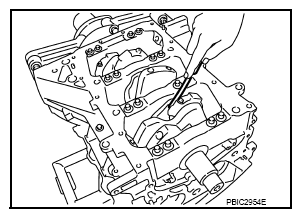

Fig 1: Measuring Side Clearance Between Connecting Rod And Crankshaft Arm Using Feeler Gauge
Courtesy of NISSAN NORTH AMERICA, INC.
