Meter, Warning Lamp & Indicator
>>
Basic Inspection
>>
Diagnosis And Repair Workflow
>>
Work flow
>>
Overall Sequence
Overall Sequence

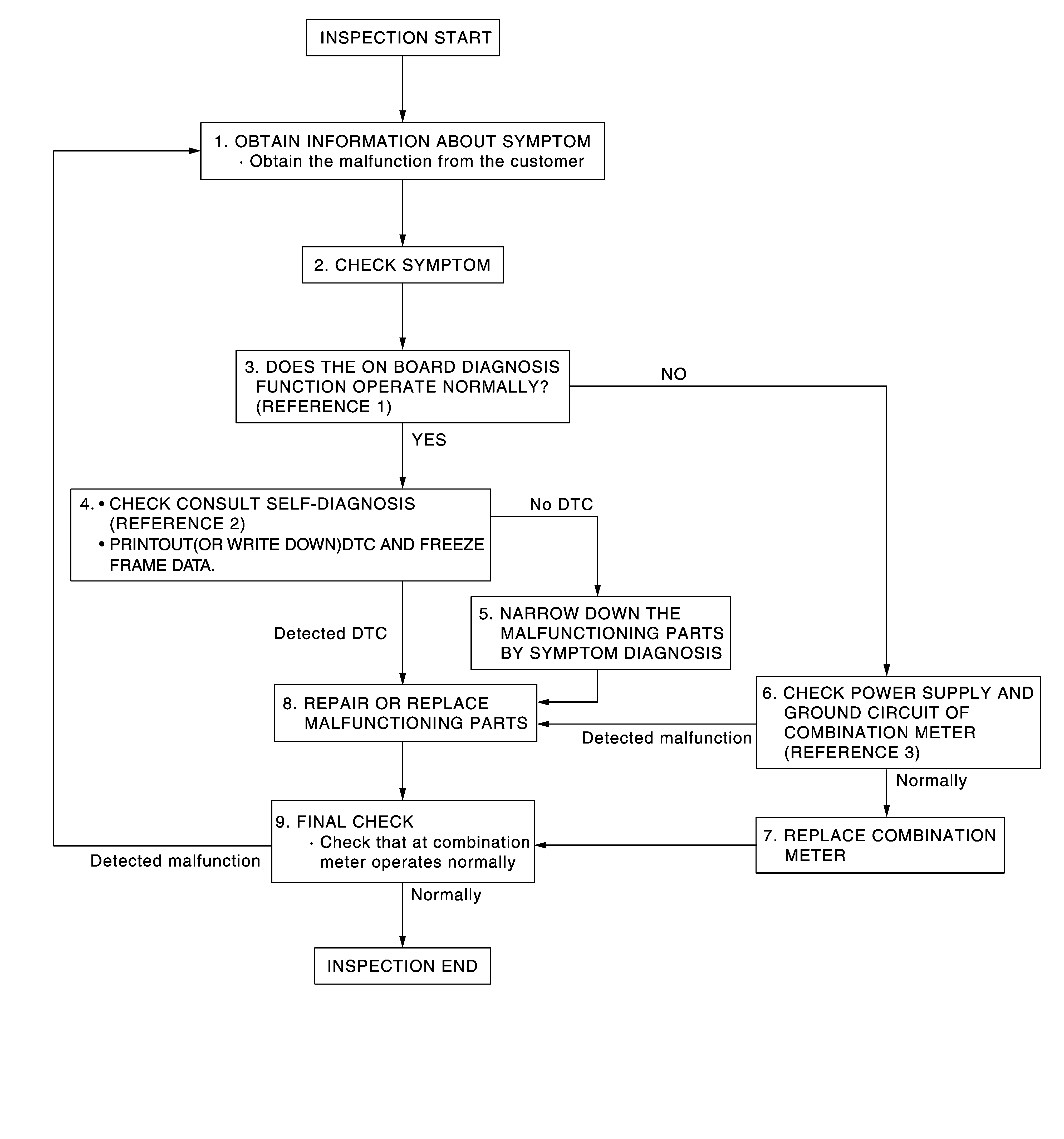

Fig 1: Diagnosis And Repair Workflow Chart
Courtesy of NISSAN NORTH AMERICA, INC.
Reference 1... "
DIAGNOSIS DESCRIPTION
".
Reference 2... "
DTC INDEX
".
Reference 3... "
COMBINATION METER: DIAGNOSIS PROCEDURE
".
