Component Parts Location
Component Parts Location

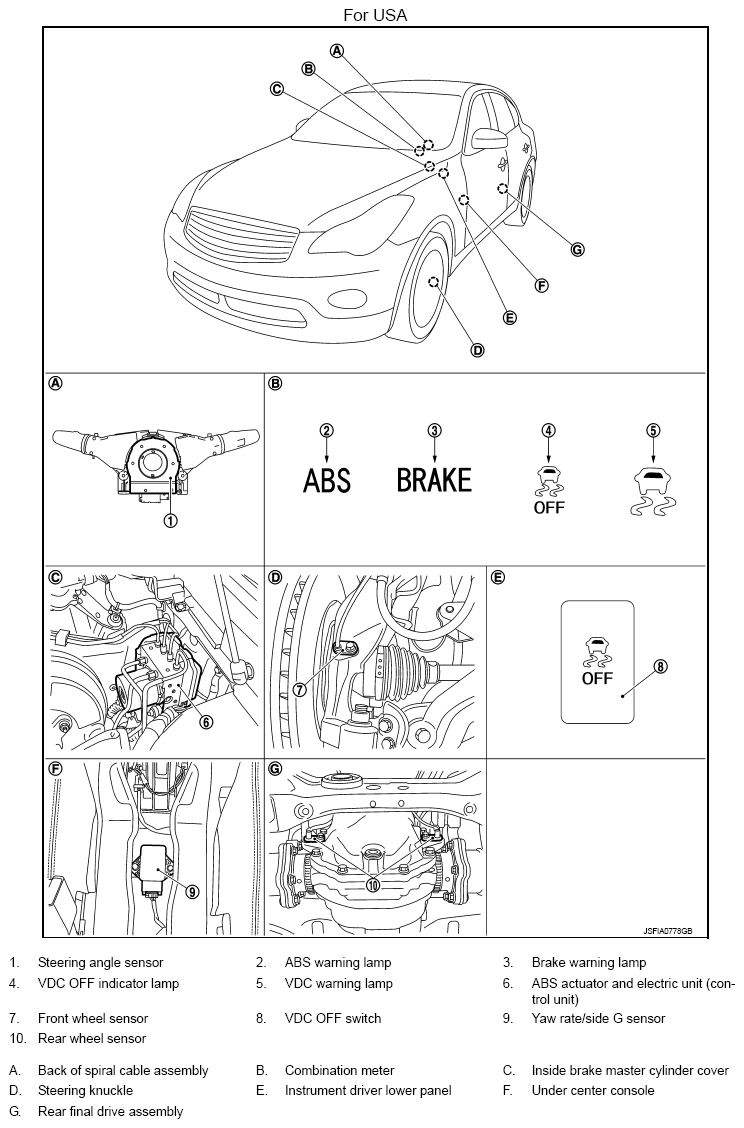

Fig 1: TCS Components Location (For USA)
Courtesy of NISSAN NORTH AMERICA, INC.

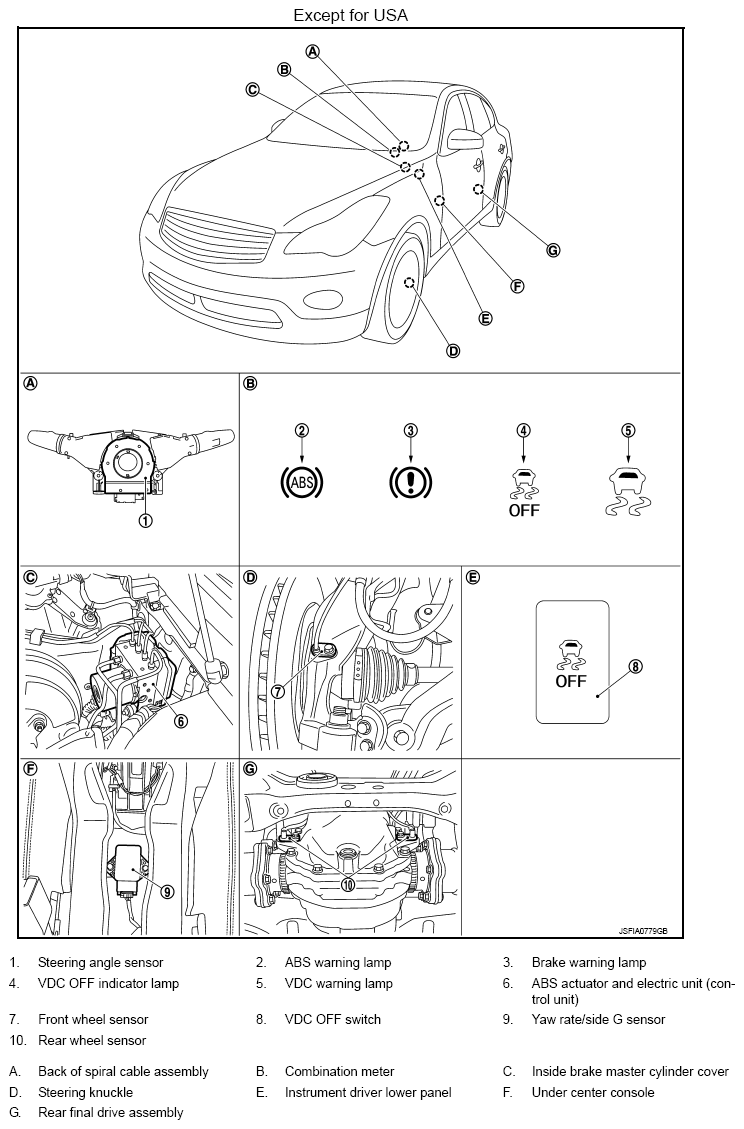

Fig 2: TCS Components Location (Except For USA)
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
