System Description
>>
EBD
>>
Component Parts Location
Component Parts Location

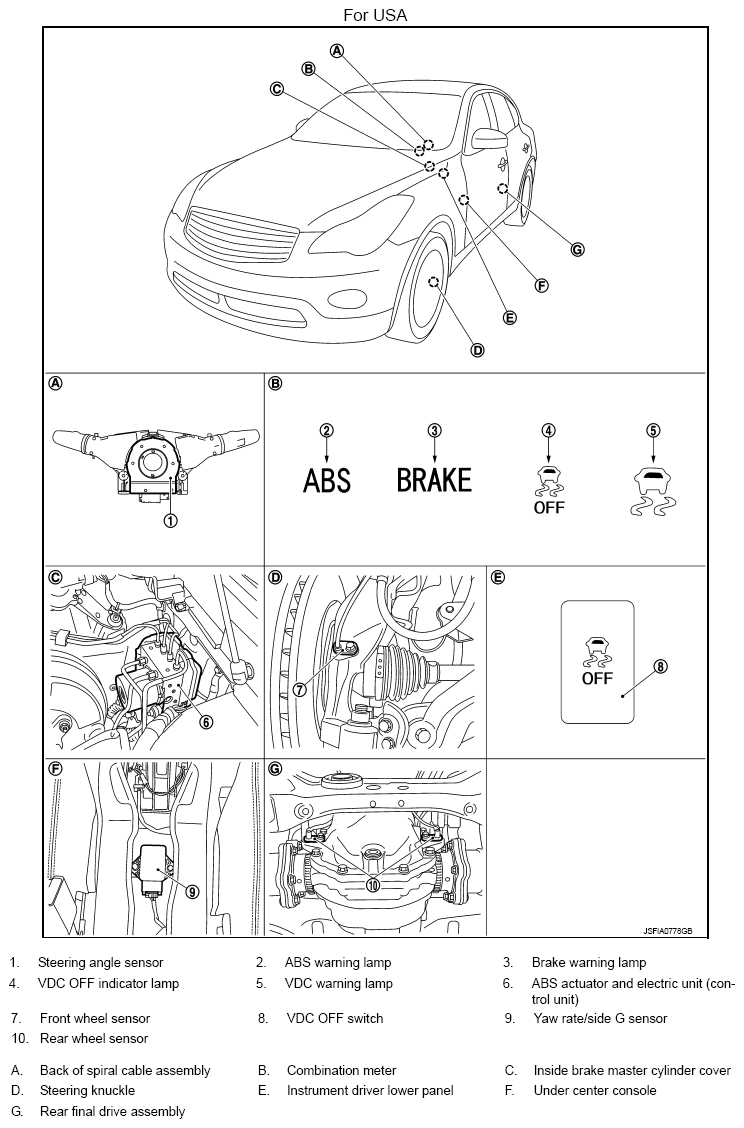

Fig 1: EBD Components Location (For USA)
Courtesy of NISSAN NORTH AMERICA, INC.
Fig 2: EBD Components Location (Except For USA)
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
