Component Parts Location

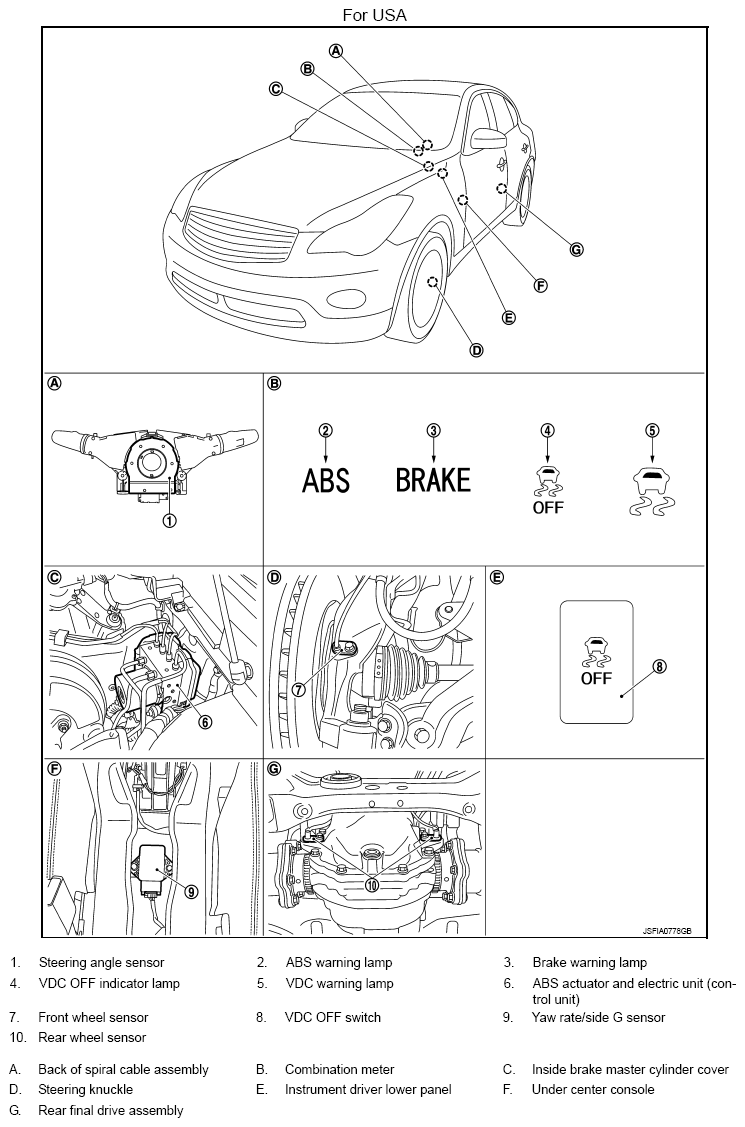

Fig 1: Identifying ABS Components Location (For USA)
G08194265Courtesy of NISSAN NORTH AMERICA, INC.

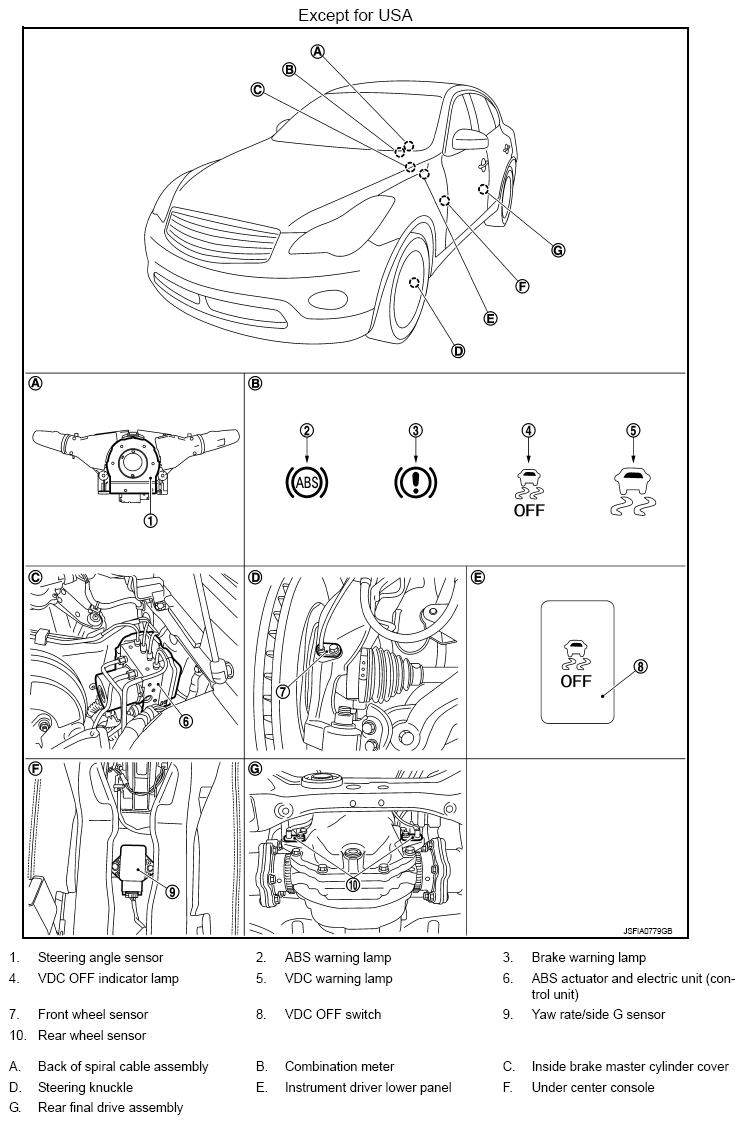

Fig 2: Identifying ABS Components Location (Except For USA)
G08194266Courtesy of NISSAN NORTH AMERICA, INC.
