Repair and Diagnosis
>>
Body & Frame
>>
Windows
>>
Glass & Window System
>>
Removal And Installation
>>
Back Door Window Glass
>>
Exploded View
Exploded View

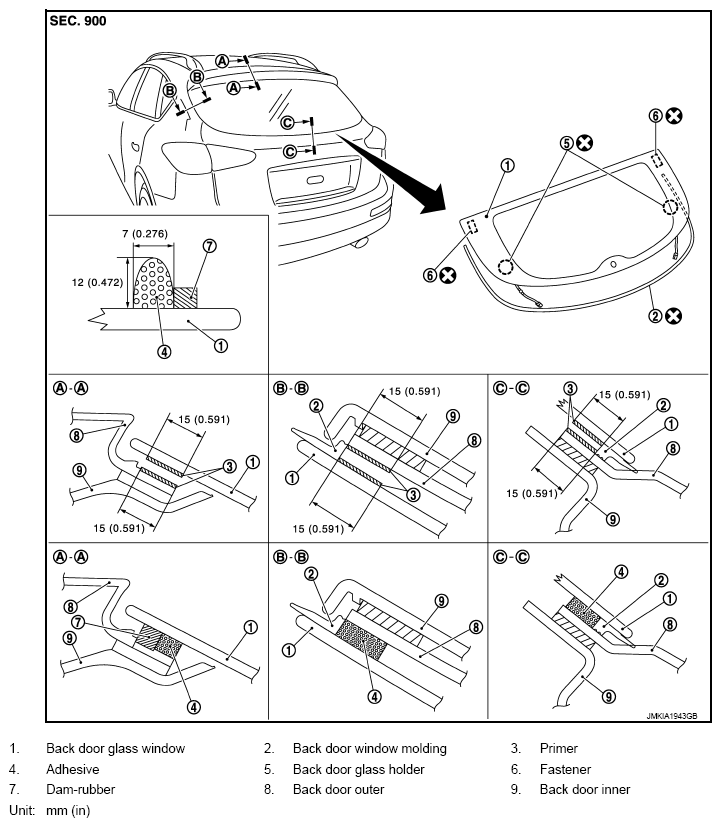

Fig 1: Identifying Back Door Window Glass Sections
Courtesy of NISSAN NORTH AMERICA, INC.
Refer to "
COMPONENTS
" for symbols in the figure.
