Exploded View

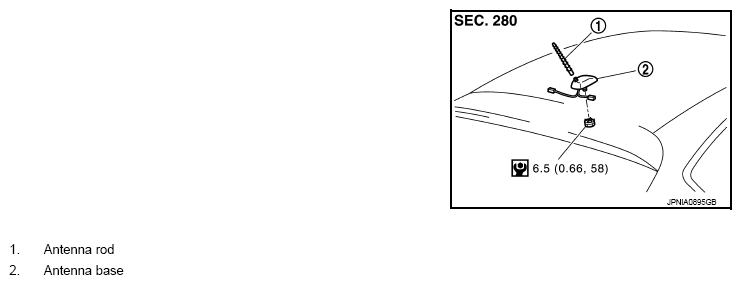

Fig 1: Antenna Rod And Antenna Base With Torque Specifications

G08196904

Courtesy of NISSAN NORTH AMERICA, INC.

Refer to "COMPONENTS " for symbols in the figure.
