AWD: Exploded View
AWD: Exploded View

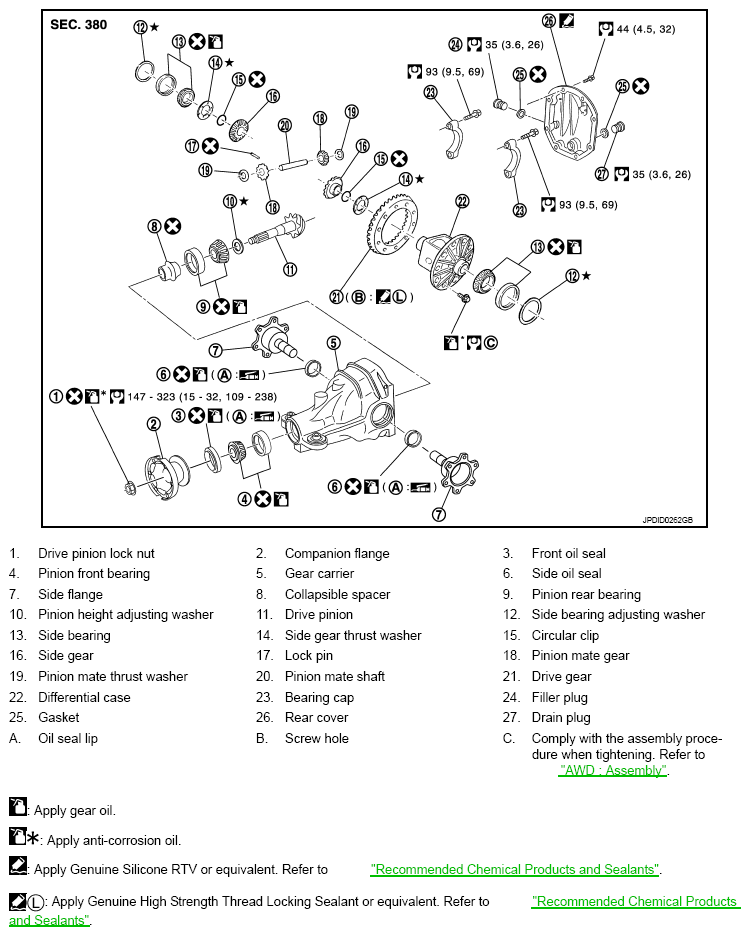

Fig 1: Exploded View Of Differential Assembly (AWD) With Torque Specifications
Courtesy of NISSAN NORTH AMERICA, INC.
Refer to "
COMPONENTS
" for symbols not described above.
