Home
>>
Infiniti
>>
2012
>>
EX35 Base, AWD
>>
Repair and Diagnosis (Single Page)
>>
Drivelines & Axles
>>
Differentials & Drive Axles
>>
Front Final Drive (F160A)
>>
Unit Removal And Installation
>>
Front Final Drive Assembly
>>
Exploded View
Exploded View

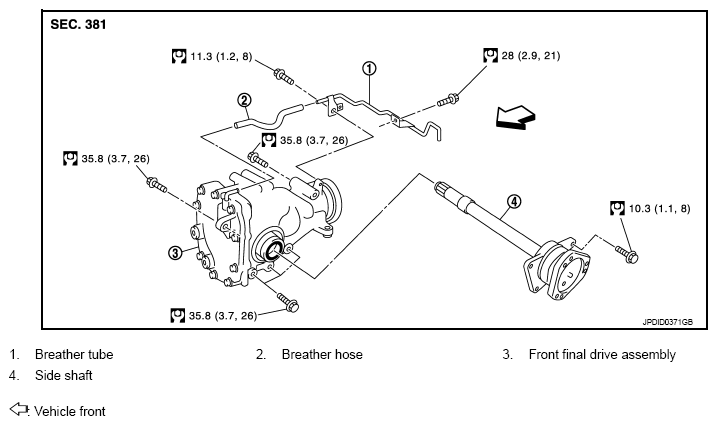

Fig 1: Exploded View Of Front Final Drive Assembly With Torque Specifications
Courtesy of NISSAN NORTH AMERICA, INC.
Refer to "
SYMBOLS
" for symbols not described above.
