Exploded View
Exploded View

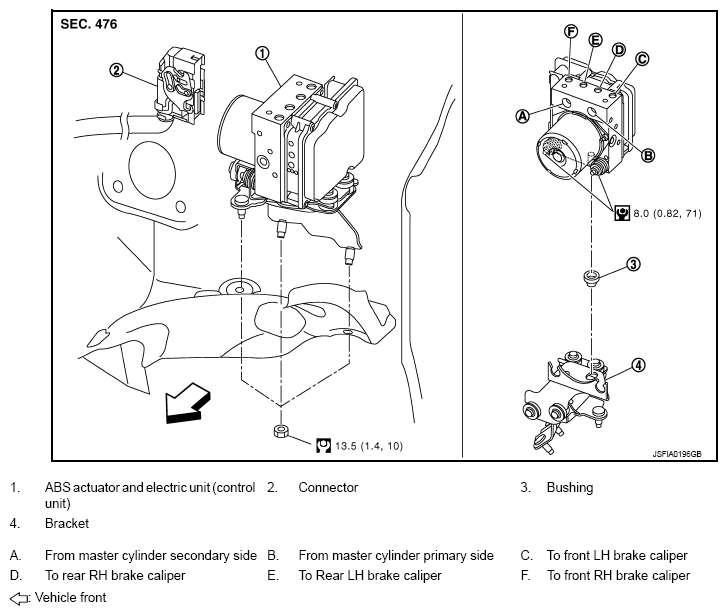

Fig 1: Disassembled View Of ABS Actuator And Electric Unit With Torque Specifications
Courtesy of NISSAN NORTH AMERICA, INC.
Refer to "
COMPONENTS
" for symbol marks in the figure.
