Repair and Diagnosis
>>
Transmission
>>
Transfer Case (ATX90A)
>>
System Description
>>
Structure And Operation
>>
Sectional View
Sectional View

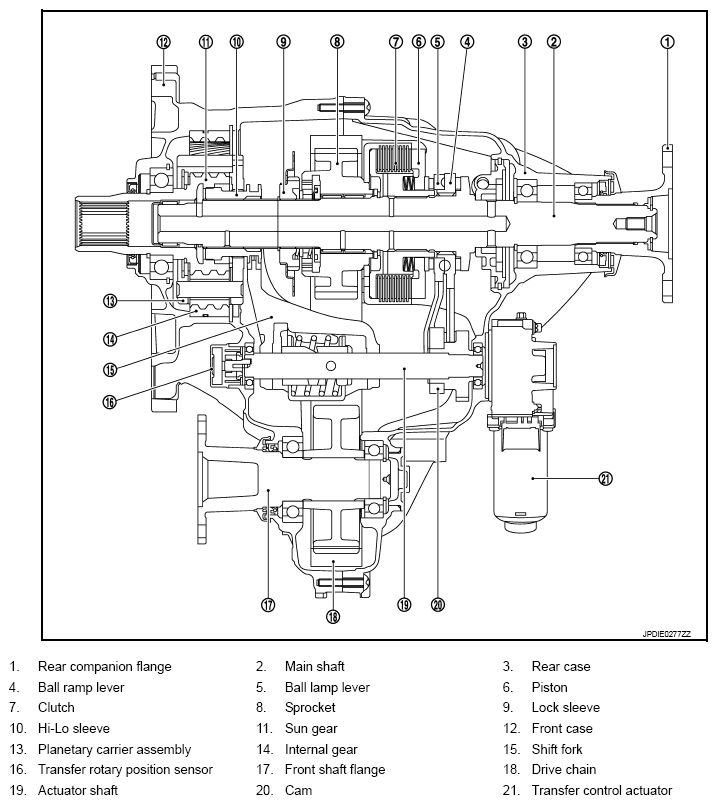

Fig 1: Sectional View Of Transfer
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
