Repair and Diagnosis
>>
Transmission
>>
Automatic Transmission
>>
Wiring Diagram
>>
A/T Control System
>>
Wiring Diagram
A/T Control System: Wiring Diagram

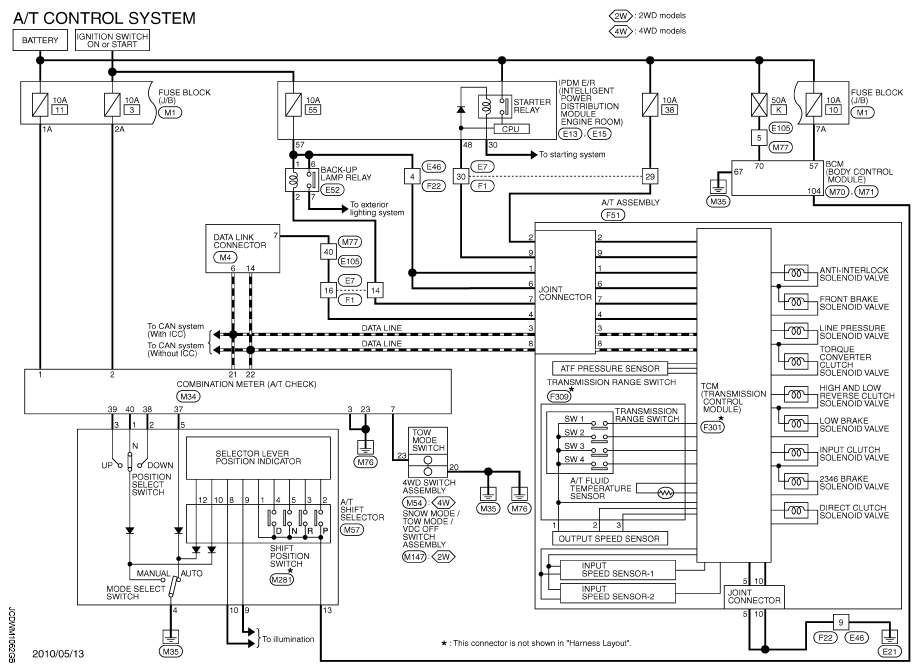

Fig 1: A/T Control System - Wiring Diagram
Courtesy of NISSAN MOTOR CO., U.S.A.

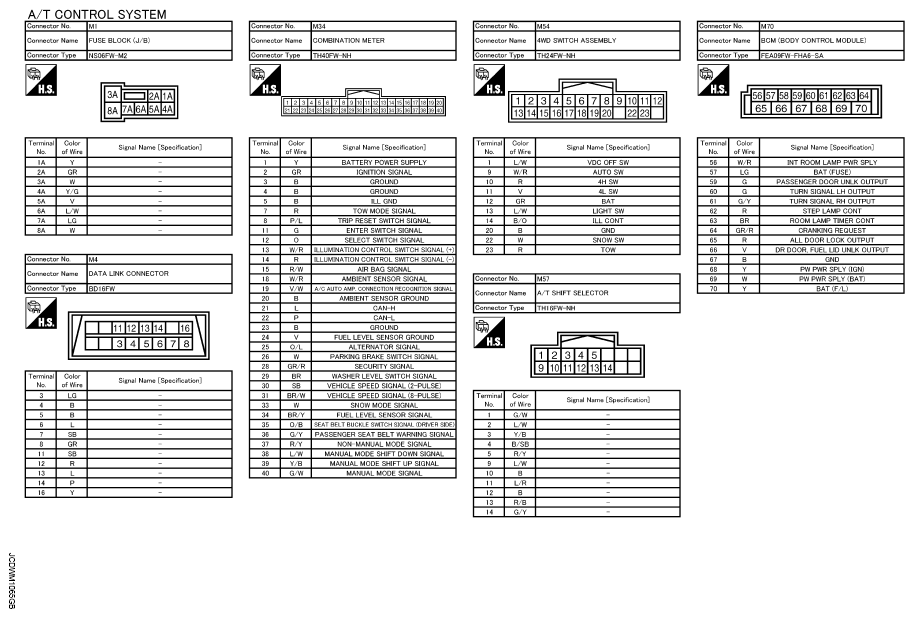

Fig 2: Identifying A/T Control System Connectors (1 Of 4)
Courtesy of NISSAN MOTOR CO., U.S.A.

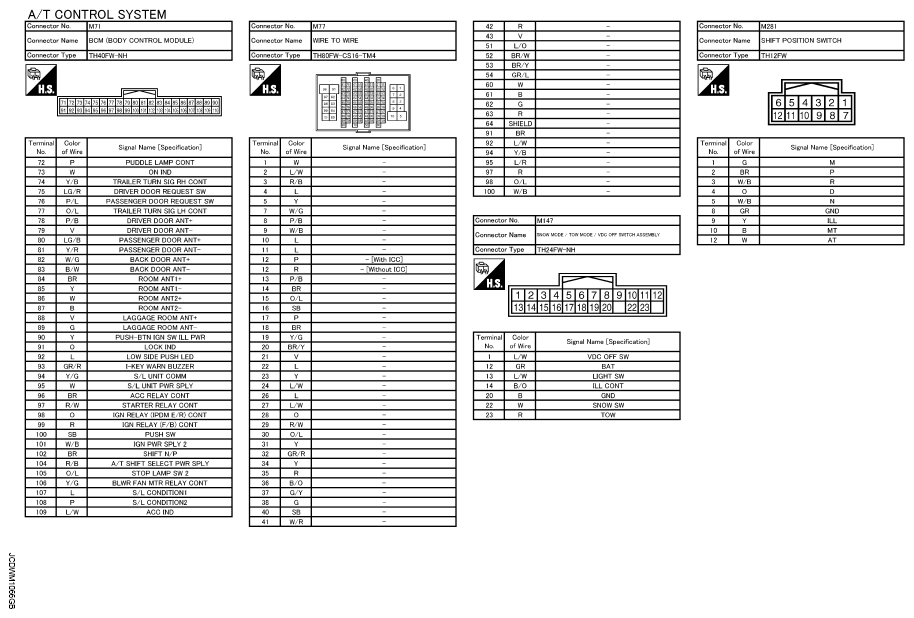

Fig 3: Identifying A/T Control System Connectors (2 Of 4)
Courtesy of NISSAN MOTOR CO., U.S.A.

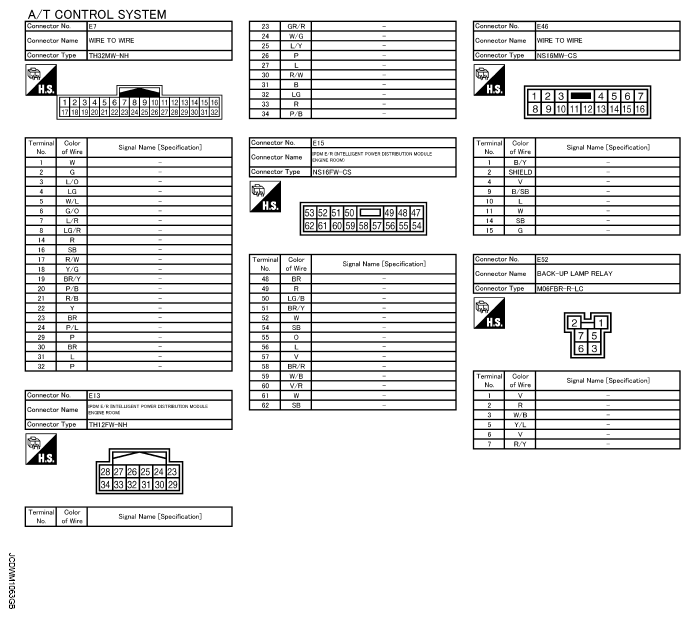

Fig 4: Identifying A/T Control System Connectors (3 Of 4)
Courtesy of NISSAN MOTOR CO., U.S.A.

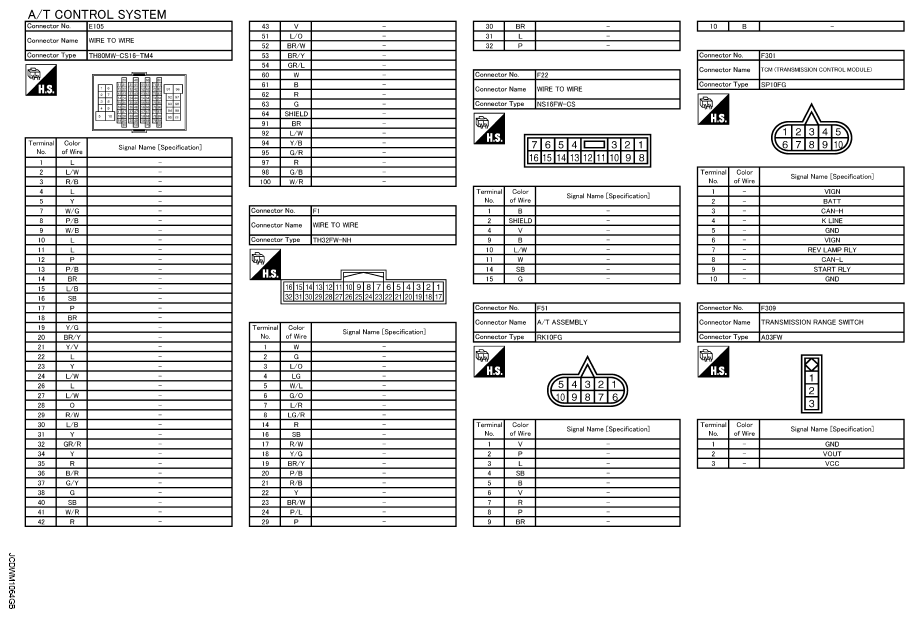

Fig 5: Identifying A/T Control System Connectors (4 Of 4)
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
