Infiniti
>>
2011
>>
QX56 AWD
>>
Repair and Diagnosis
>>
Transmission
>>
Automatic Transmission
>>
Unit Disassembly And Assembly
>>
Transmission Assembly
>>
Oil Channel
Oil Channel

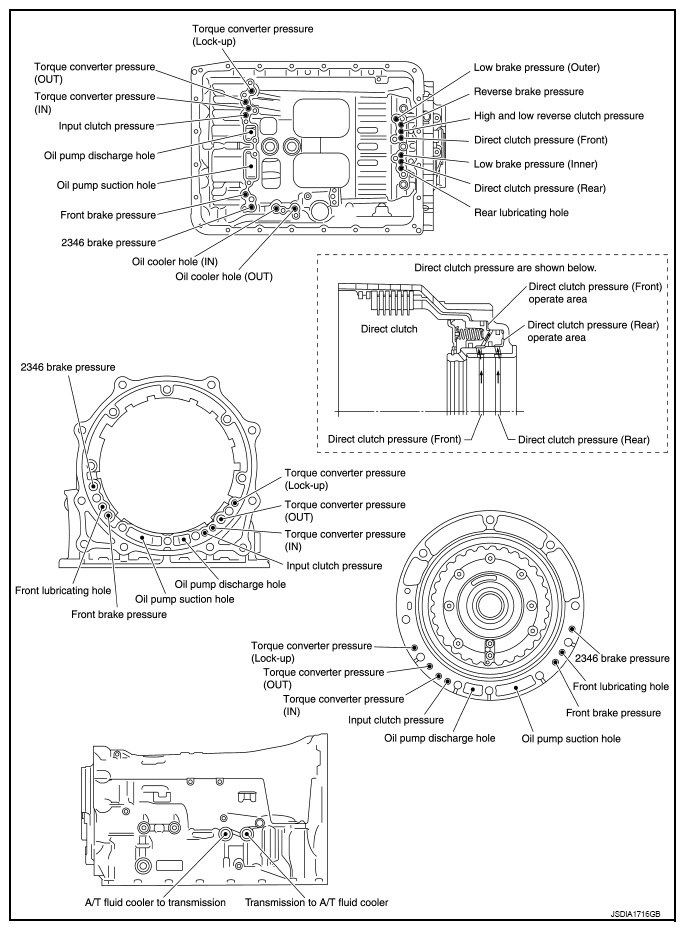

Fig 1: Identifying Oil Channel
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
