High And Low Reverse Clutch
>>
Exploded View
Exploded View

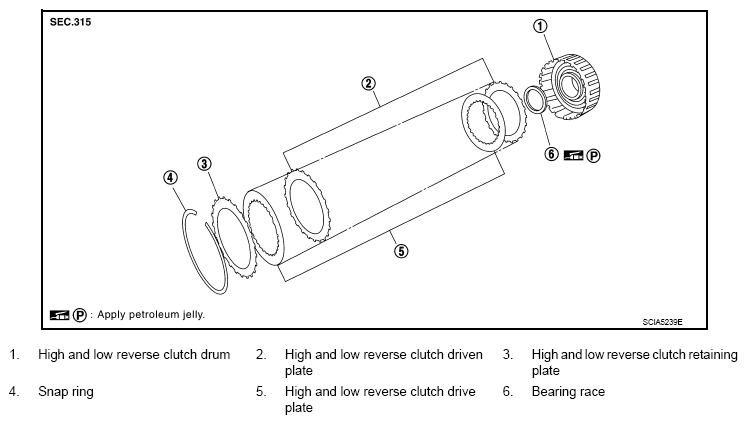

Fig 1: Identifying High And Low Reverse Clutch Components
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
