Exploded View

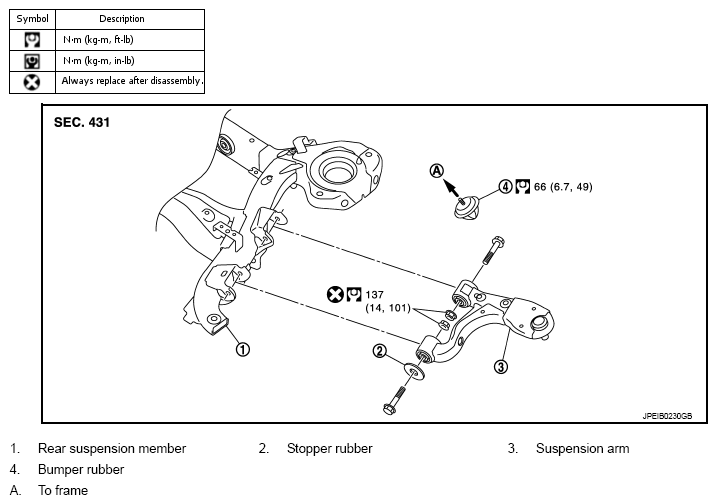

Fig 1: Identifying Suspension Arm Components

G07025101

Courtesy of NISSAN MOTOR CO., U.S.A.

Refer to "COMPONENTS " for symbols in the figure.
