Without HBMC

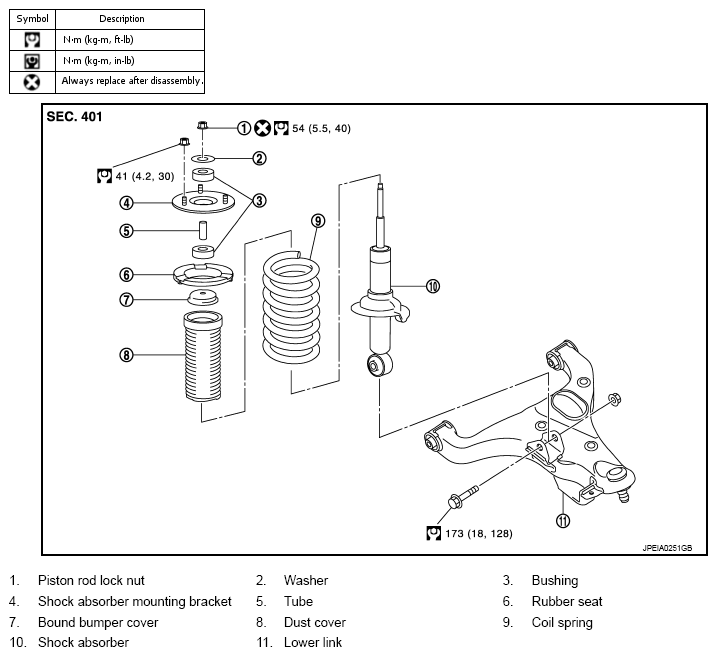

Fig 1: Front Coil Spring & Shock Absorber Replacement Components With Torque Specifications (Without HBMC)
G07025072Courtesy of NISSAN MOTOR CO., U.S.A.

Refer to "COMPONENTS " for symbols in the figure.
