Voluntary Service Campaign 2011 QX56 Vehicle Dynamic Control (VDC) Reprogramming (ITB11-031A)

Reprogram ABS Control Unit

1. Connect the CONSULT PC to the vehicle to begin the reprogramming procedure.
   CAUTION:

   • Connect a battery charger to the vehicle battery. If the 12V battery voltage drops during reprogramming, the ABS Control Unit may be damaged  .
   • Be sure to turn OFF all vehicle electrical loads. If a vehicle electrical load remains ON, the ABS Control Unit may be damaged  .
   • For ABS Control Unit reprogramming, the CONSULT PC MUST be connected to the VI using the USB cable.
   • Be sure to connect the AC Adapter. If the CONSULT PC battery voltage drops during reprogramming, the process will be interrupted and the ABS Control Unit may be damaged  .
   • Turn off all external Bluetooth® devices (e.g., cell phones, printers, etc.) within range of the CONSULT PC and the VI. If Bluetooth® signal waves are within range of the CONSULT PC during reprogramming, reprogramming may be interrupted and the ABS Control Unit may be damaged  .
   IMPORTANT: Before starting, make sure:


   • ASIST on the CONSULT PC has been freshly synchronized (updated).
   • All C-III software updates (if any) have been installed.
   NOTE: The CONSULT PC automatically gets reprogramming data during ASIST synchronization.

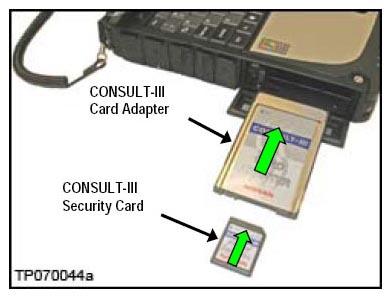

   • C-III PCMCIA Card Adapter is installed.
   • C-III Security Card is installed.
   • A screen print for Warranty documentation can be done from C-III during this process while still cable-connected to the vehicle.

1. Use the USB  cable to connect the Vehicle Interface (VI) to the CONSULT PC and then connect the VI to the vehicle.
   CAUTION: For ABS Control Unit reprogramming, be sure to have the CONSULT PC connected to the VI with the USB cable. If the CONSULT PC is not connected to the VI with the USB cable, the ABS Control Unit may be damaged.
2. Connect the AC Adapter to the CONSULT PC.
   CAUTION: Be sure to connect the AC Adapter. If the CONSULT PC battery voltage drops during reprogramming recovery, the process will be interrupted and the ABS Control Unit will be damaged.
3. Connect a battery charger to the vehicle battery:
   • Set the battery charger at a low charge rate.
     NOTE: The GR-8 (Battery and Electrical Diagnostic Station) set to "Power Supply" mode is recommended.
     CAUTION: Be sure the battery charger is connected securely to the battery. Make sure the battery voltage stays above 12 V during reprogramming. If the battery voltage drops during reprogramming, the ABS Control Unit may be damaged  .
4. Turn the ignition ON with the engine OFF.
   • The engine must be OFF (not running) during the reprogramming procedure.
   • Turn OFF all vehicle electrical loads such as exterior lights, interior lights, HVAC, blower, rear defogger, audio, NAVI, seat heater, steering wheel heater, etc.
     IMPORTANT: Make sure to turn OFF all vehicle electrical loads. If the vehicle battery voltage drops below 12 V before reprogramming starts, reprogramming will not complete. After the "Transfer To VI" is complete, the reprogramming will stop, and "Transfer To ECU" will not start.
5. Make sure the engine cooling fan(s) are not running.

   If the cooling fans are running:

   1. Turn the ignition OFF.
   2. Wait for the engine to cool.
   3. Turn the ignition ON (with engine OFF).
   4. Make sure the engine cooling fans are not running.
6. Open/start ASIST on the CONSULT PC.
7. Select CONSULT Utilities, CONSULT-III, and Wait for the "Detecting VI/MI in progress" message to clear.

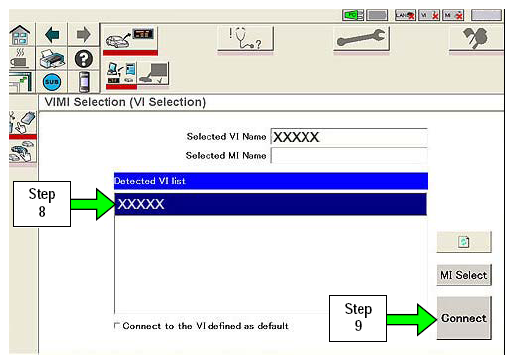

8. Select the detected VI from the list (see Fig 1).
9. Select Connect (see Fig 1).
10. Wait for the "Checking the firmware version" message to clear (picture not shown).

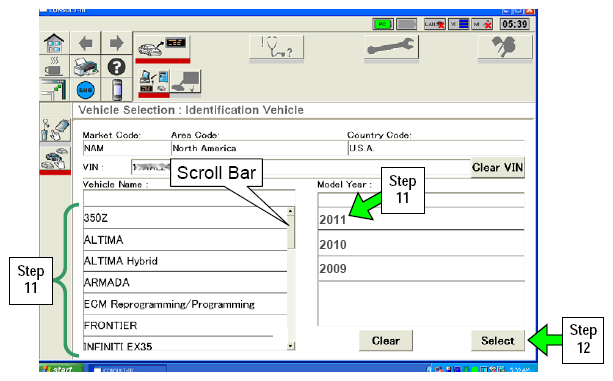

11. Select QX56  and 2011  model year from the lists (see Fig 1 for example).
    • Use the scroll bar to get QX56  to display.
12. Select  Select (see Fig 1).

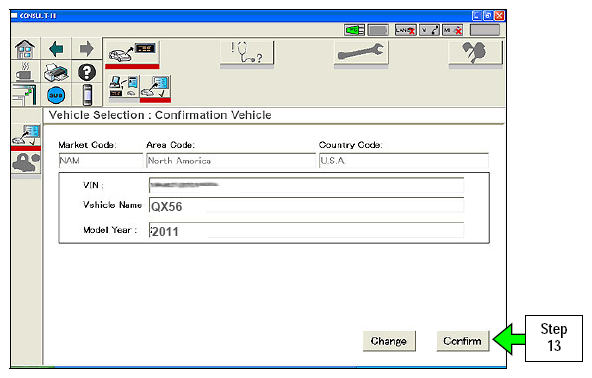

13. After verifying the information in the Vehicle Selection: Confirmation Vehicle  screen is correct, select Confirm  .

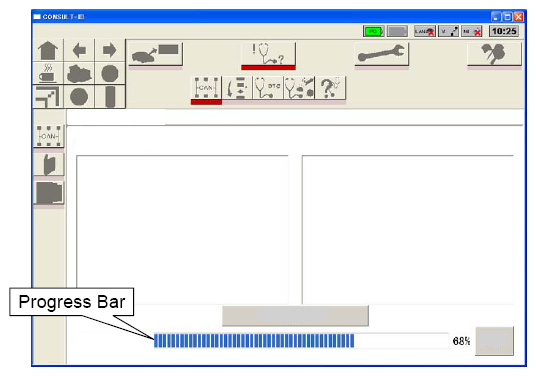

14. Wait for the System Call progress bar to reach 100%.
    • Your C-III screen will look similar to Fig 1.

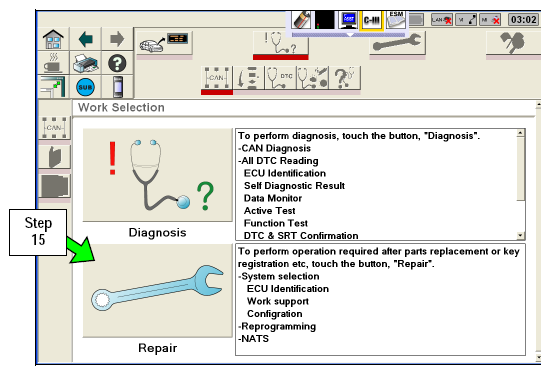

15. Select Repair  .

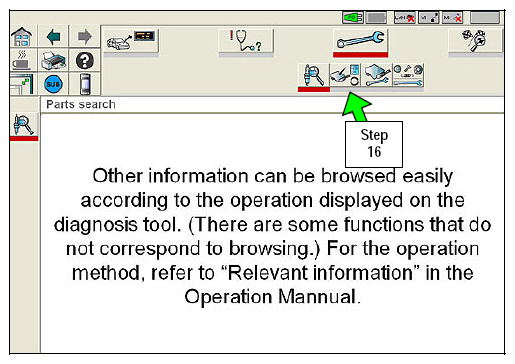

16. Select the "ECM Reprogram"  icon.

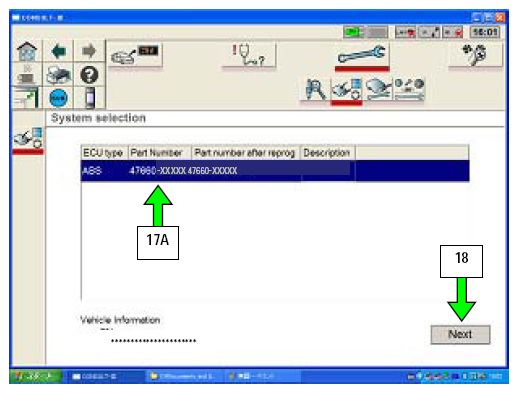

17. When you get to the reprogramming screen shown in Fig 1, confirm this bulletin applies as follows.
    1. Write down the ABS Control Unit  part number on the Repair Order.
       NOTE:

       • Control unit part numbers for other vehicle systems may be listed. Part numbers for other systems do not apply to this bulletin.
       • If an ABS Control Unit part number is not listed, this campaign does not apply or it has already been completed.  Close C-III, turn off and disconnect the CONSULT PC and VI from the vehicle, and then recheck Service Comm for campaign eligibility.
       • If this column is blank  (no part number listed), this campaign does not apply or it has already been completed.  Close C-III, turn off and disconnect the CONSULT PC and VI from the vehicle, and then recheck Service Comm for campaign eligibility.
    2. Compare the Part Number you wrote down to the number in the Current ABS Control Unit Part Number  column in TABLE A .
       • If there is a match,  this campaign applies  . Continue with the reprogramming procedure.
       • If there is not a match,  this campaign does not apply  or it has already been done. Close C-III, turn off and disconnect the CONSULT PC and VI from the vehicle, and then recheck Service Comm for campaign eligibility.

       Table A

       PARTS INFORMATION



       Current ABS Control Unit Part Number: 46007-
       1LA1A, 1LA2A, 1LA1B, 1LA2B, 1LA1C, 1LA1D

18. Select Next  (see Fig 1).

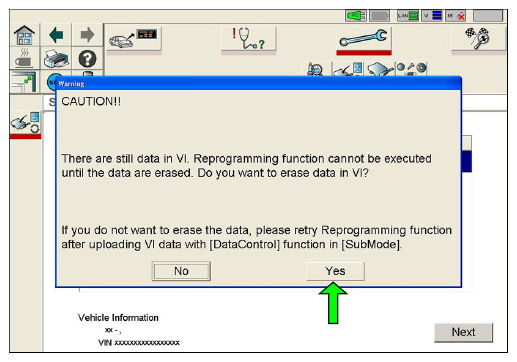

    NOTE: If the screen in Fig 1 appears, there is data stored in the VI. Select "Yes"  to proceed with Reprogramming.

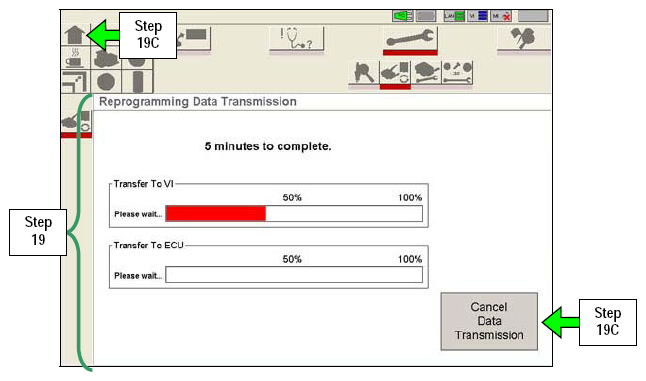

19. The screen in Fig 1 is displayed during data transfer.
    CAUTION: During data transfer:


    • DO NOT  disturb the VI, DDL, or USB connections.
    • DO NOT  try to start the engine or turn the ignition OFF.
    • The engine fans may turn on. This is normal.
    NOTE:

    • If "Transfer To VI" reaches 100%, and "Transfer To ECU" does not start, or

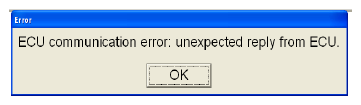

    • The Error in Fig 1 displays
      1. DO NOT replace the ABS Control Unit. The ABS Control Unit is not damaged.
      2. Check/make sure the battery voltage is above 12 V and all vehicle electrical loads are turned OFF (see Step  3 and  4).
      3. Select Cancel Data Transmission  (Fig 1), click on the "Home" icon (upper left corner of C-III screen), and then restart from the beginning (go to Step  1).

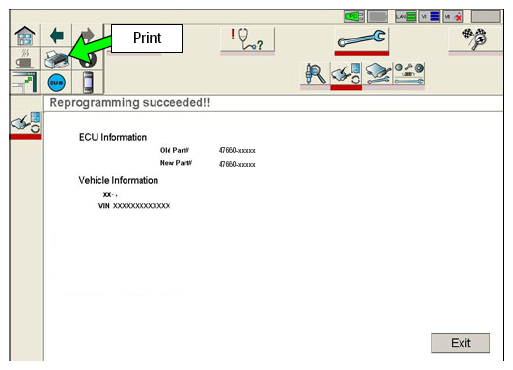

20. When a screen similar to Fig 1 appears, ABS Control Unit reprogramming is complete.
    • Print this screen and attach it to the Repair Order for Warranty documentation.

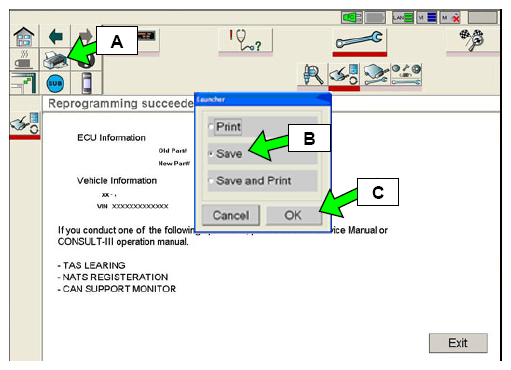

    NOTE: If you cannot print the screen on see Fig 1:


    1. Select the Print  icon.
    2. Select Save  .
    3. Select OK  .

    A copy of the screen is now saved in the CONSULT PC.

    NOTE: If you saved a copy of the screen in Fig 1 and need to print it at a later date, you can find it in the following file location:
    At the bottom left corner of the computer screen, click on Start  .
    In the Administrator window, select My Computer  .
    In the My Computer screen, select Local Disc (C)  .
    In the Local Disc (C) screen, select Consult III  folder.
    In the Consult III screen/folder, select ApplicationData  folder.
    In the ApplicationData screen/folder, select PrintImages  folder.
    When the file was saved, it was automatically given a file name using the current date and time. Select and print the file/screen image that you want.
    NOTE: During reprogramming, DTCs will set in several systems. DTCs must be erased from all systems.

Erase DTCs from all systems

1. Select on the "Home"  icon (top left corner of the C-III screen).
2. Wait for the "Detecting VI/MI in progress" message to clear (picture not shown).

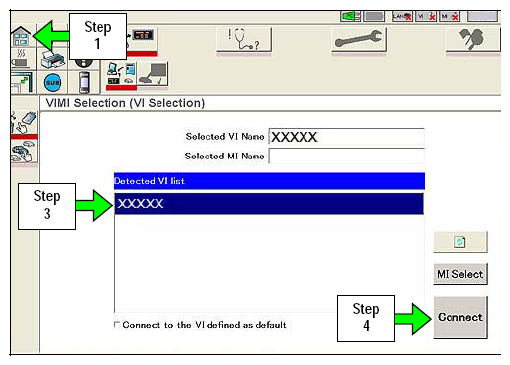

3. Select the detected VI from the list (see Fig 1).
4. Select Connect  (see Fig 1).
5. Wait for the "Checking the firmware version" message to clear (picture not shown).

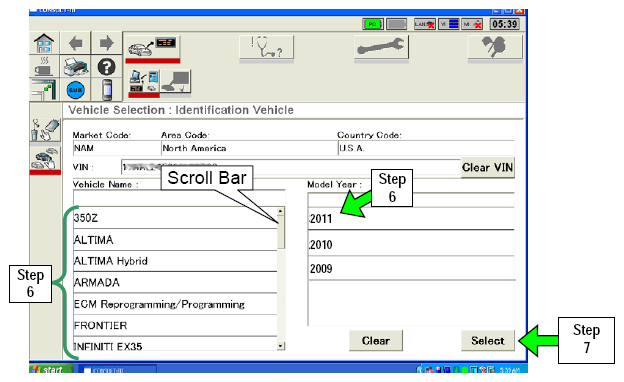

6. Select QX56  and 2011  model year from the lists (see Fig 1 for example).
7. Select Select  (see Fig 1).

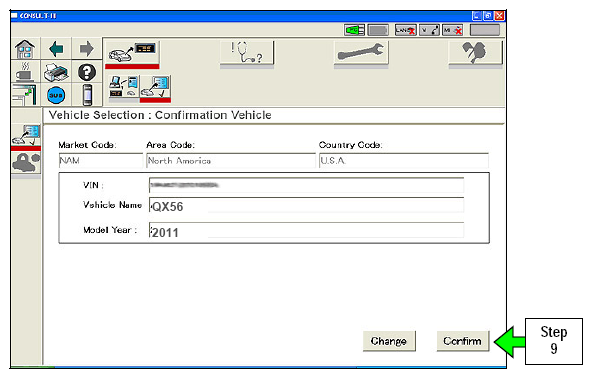

8. Make sure the correct vehicle is displayed (see Fig 1 for example).
9. Select Confirm (see Fig 1).

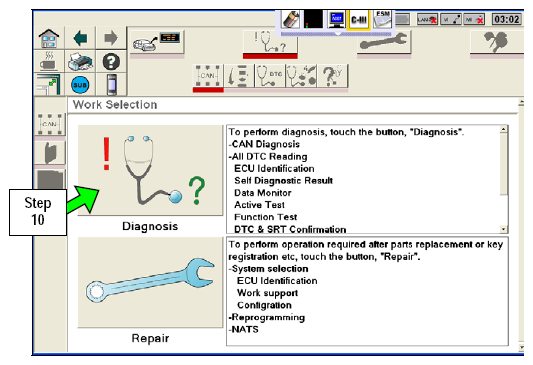

10. Select Diagnosis  .

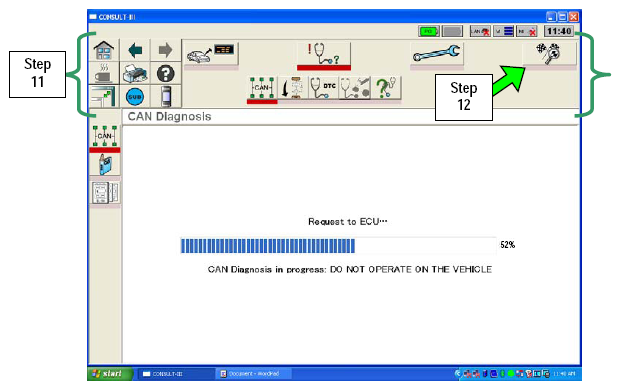

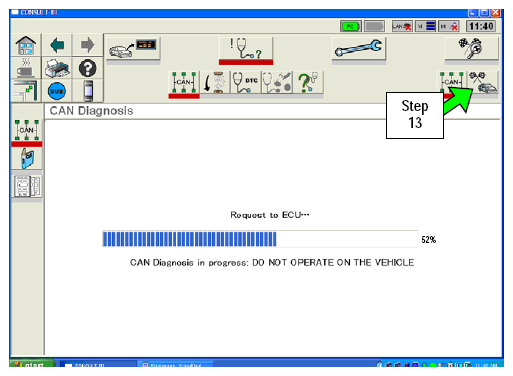

11. Wait for System Call to complete and CAN Diagnosis to reach 51%. See Fig 1 for example.
    NOTE: When the CAN diagnosis reaches 51%, the process icons in the Process Guide Area at the top of the screen will light (become enabled).
12. When the icons light, select the "Final Check"  icon (see Fig 1).
13. CAN diagnosis will run again. When it reaches 51% and the icons light, select the "Duplication Test"  icon.

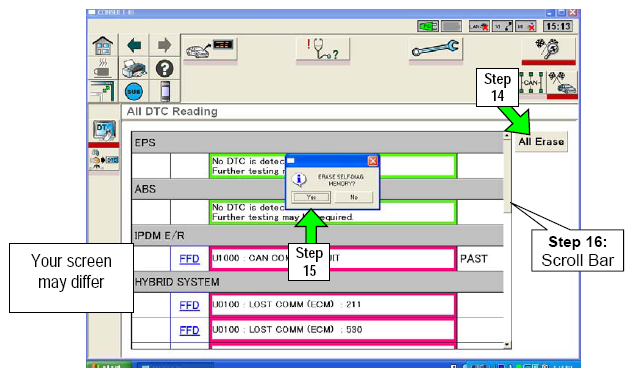

14. When the screen in Fig 1 appears, select All Erase  .
15. Select Yes  (see Fig 1).
16. Use the scroll bar to scroll down the page and make sure all DTCs are erased (see Fig 1).
    • For any DTCs that do not erase: Diagnose, perform repairs, and then erase DTCs.
      NOTE: DTCs that do not erase are not covered by this campaign.
    • Refer to the Electronic Service Manual (ESM) as needed.

    Reprogramming is now finished.
