Piston Ring Side Clearance

Measure the side clearance of piston ring (1) and piston ring groove with a feeler gauge (C).

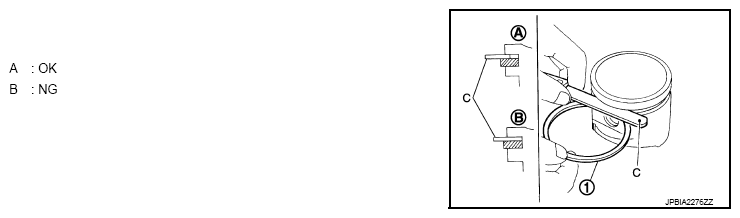

Fig 1: Measuring Side Clearance Of Piston Ring And Piston Ring Groove
Courtesy of NISSAN MOTOR CO., U.S.A.

Standard and limit : Refer to "CYLINDER BLOCK ".
If the measured value exceeds the limit, replace piston ring, and measure again. If it still exceeds the limit, replace piston also.
