Sunload Sensor Connector End View (M74)

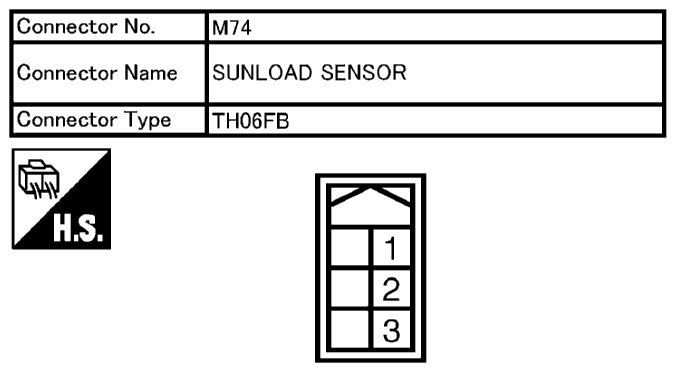

Fig 1: Sunload Sensor Connector End View (M74)

G10695988

Courtesy of NISSAN NORTH AMERICA, INC.
