Removal and Installation: Removal

  1. Disconnect the battery cable from the negative terminal. Refer to "REMOVAL AND INSTALLATION ".
  2. Remove front under cover. Refer to "REMOVAL AND INSTALLATION ".
  3. Remove drive belt. Refer to "REMOVAL AND INSTALLATION ".

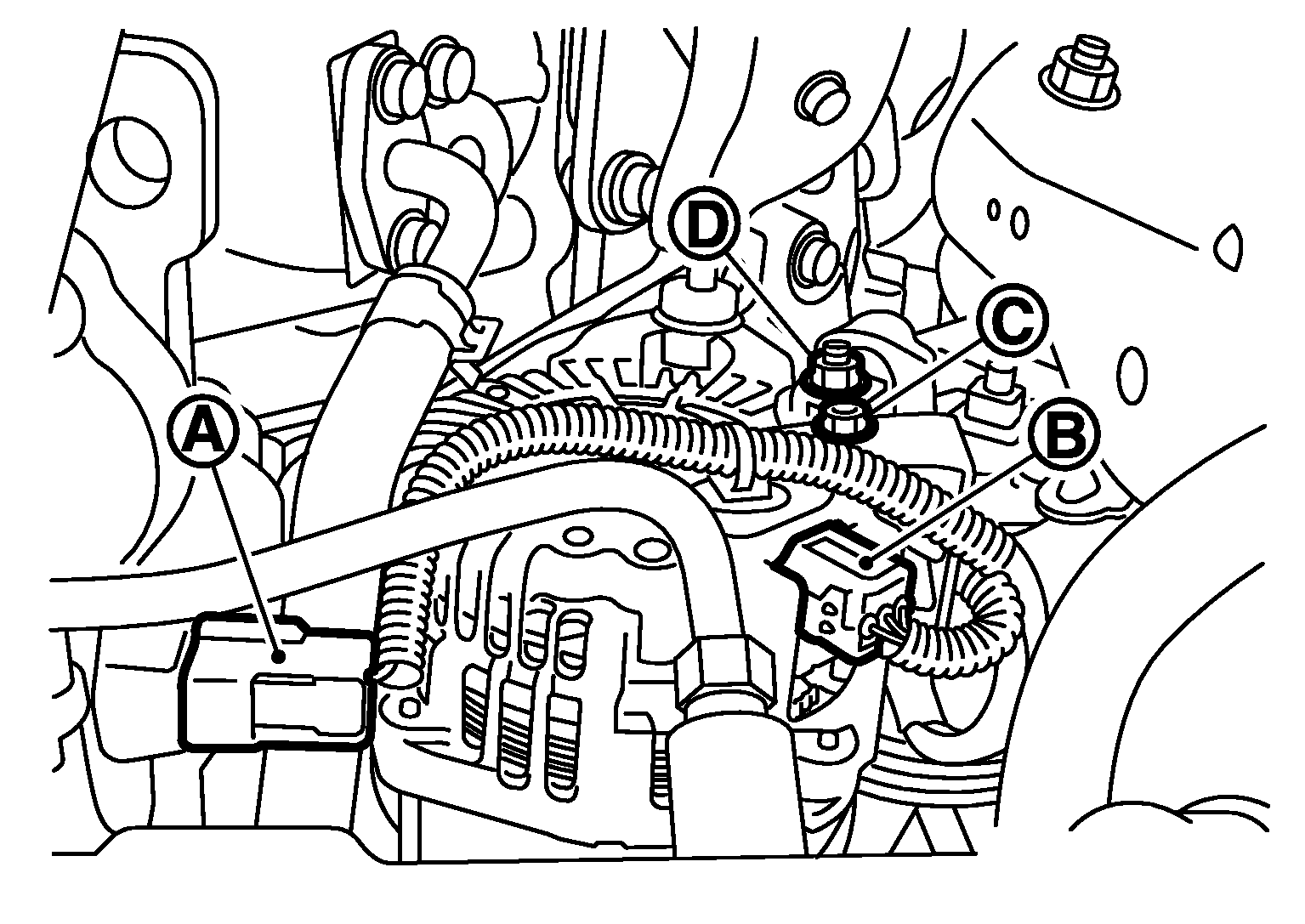

  4. Disconnect engine oil pressure switch connector (A) and alternator connector (B).
  5. Remove harness bracket bolt (C).
  6. Remove "B" terminal nut (D) and disconnect "B" terminal harness.
    Fig 1: Identifying Disconnect Engine Oil Pressure Switch Connector
    G07026034Courtesy of NISSAN MOTOR CO., U.S.A.

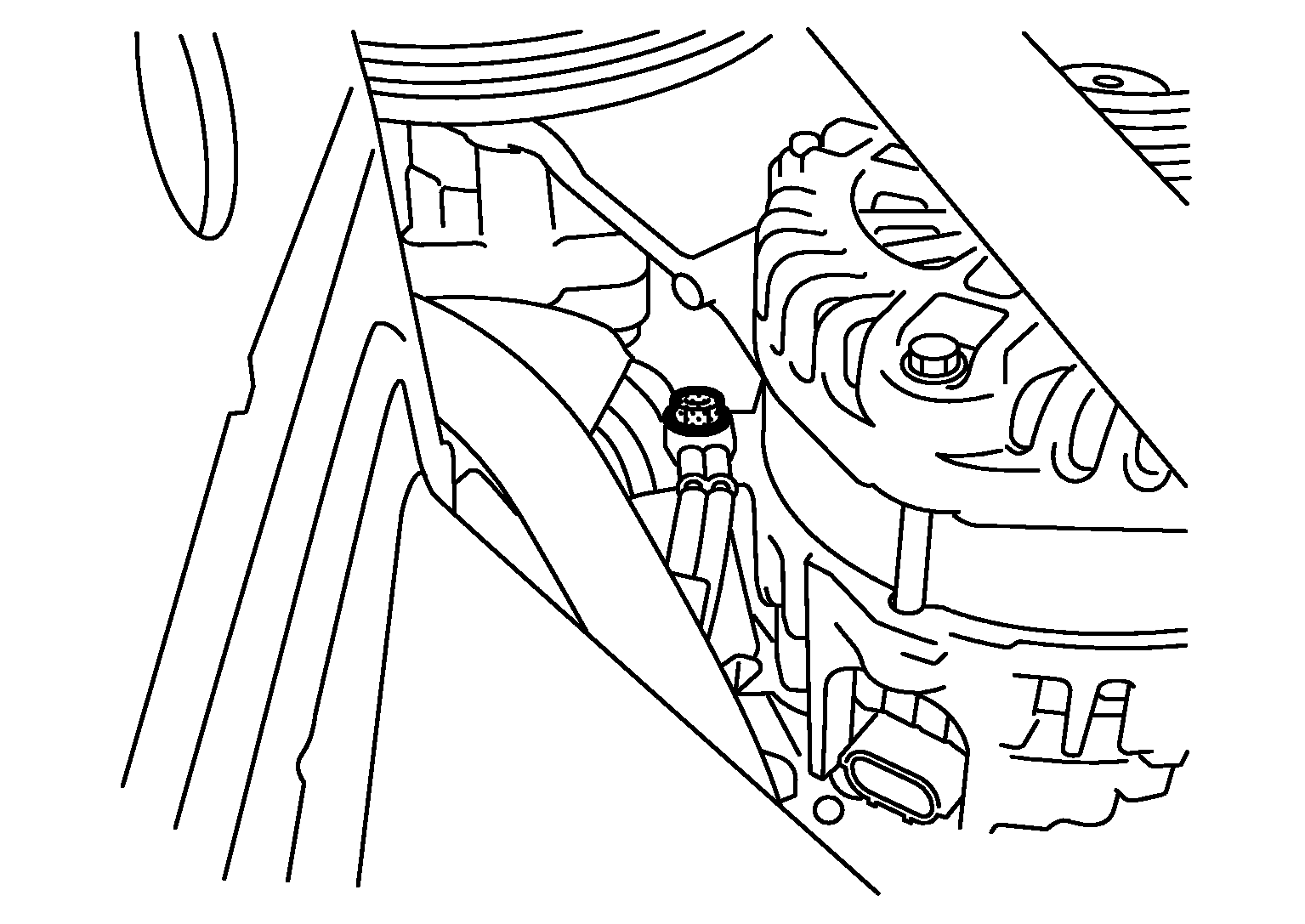

  7. Remove ground harness mounting bolt.
    Fig 2: Removing Ground Harness Mounting Bolt
    G07026035Courtesy of NISSAN MOTOR CO., U.S.A.
  8. Remove alternator mounting bolt (lower), and then alternator mounting bolt (upper).

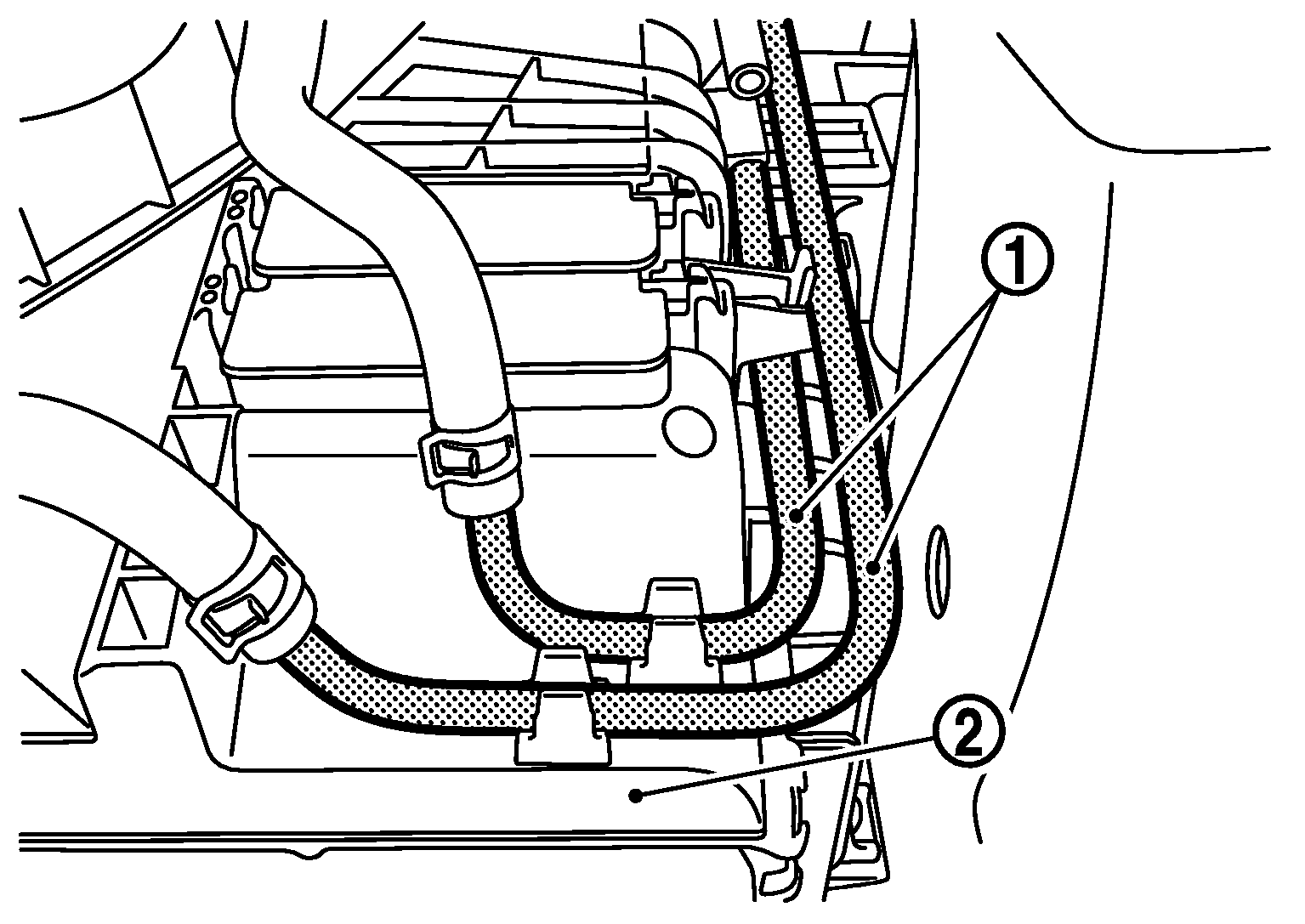

  9. Remove A/T fluid cooler tube (1) from fan shroud (2).
    Fig 3: Removing A/T Fluid Cooler Tube
    G07026036Courtesy of NISSAN MOTOR CO., U.S.A.

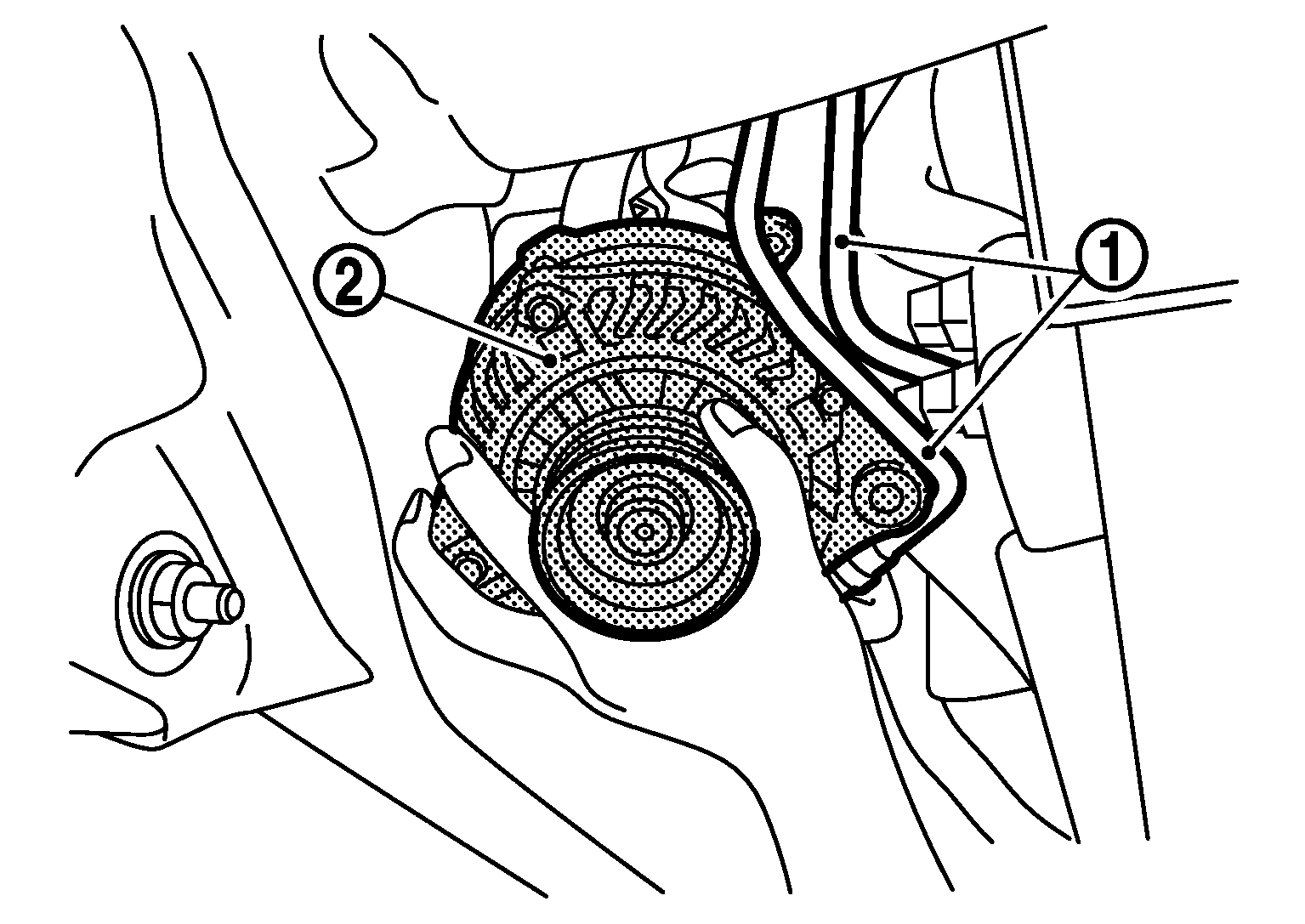

  10. Move A/T fluid cooler tube (1) and secure work space.
  11. Remove alternator assembly (2) from underneath the vehicle.
    Fig 4: Moving A/T Fluid Cooler Tube
    G07026037Courtesy of NISSAN MOTOR CO., U.S.A.
