Power Distribution System: Wiring Diagram

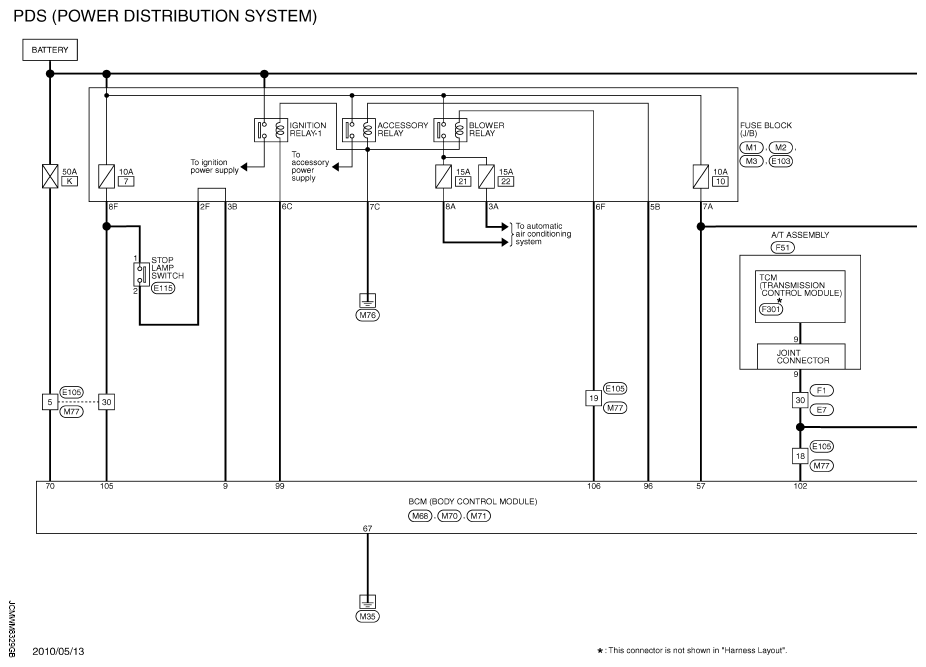

Fig 1: Power Distribution System - Wiring Diagram (1 Of 2)

Courtesy of NISSAN MOTOR CO., U.S.A.

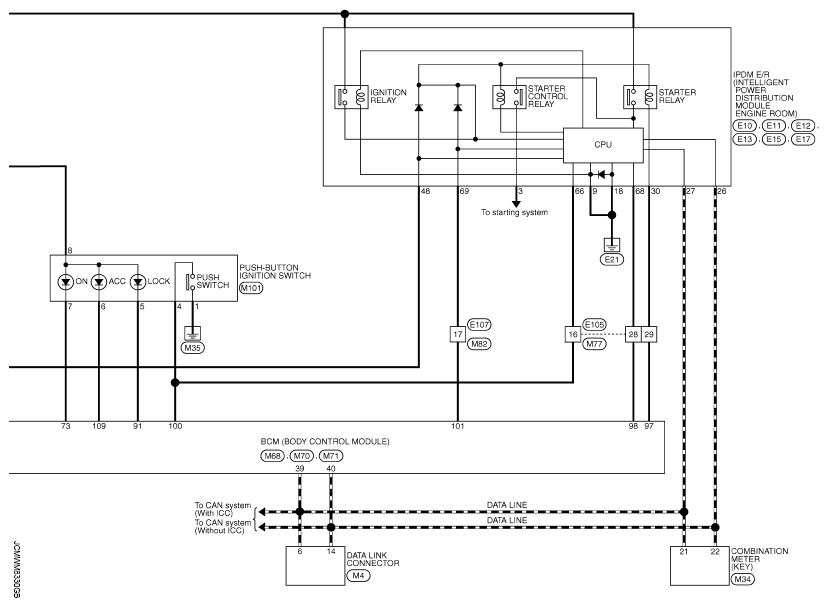

Fig 2: Power Distribution System - Wiring Diagram (2 Of 2)

Courtesy of NISSAN MOTOR CO., U.S.A.

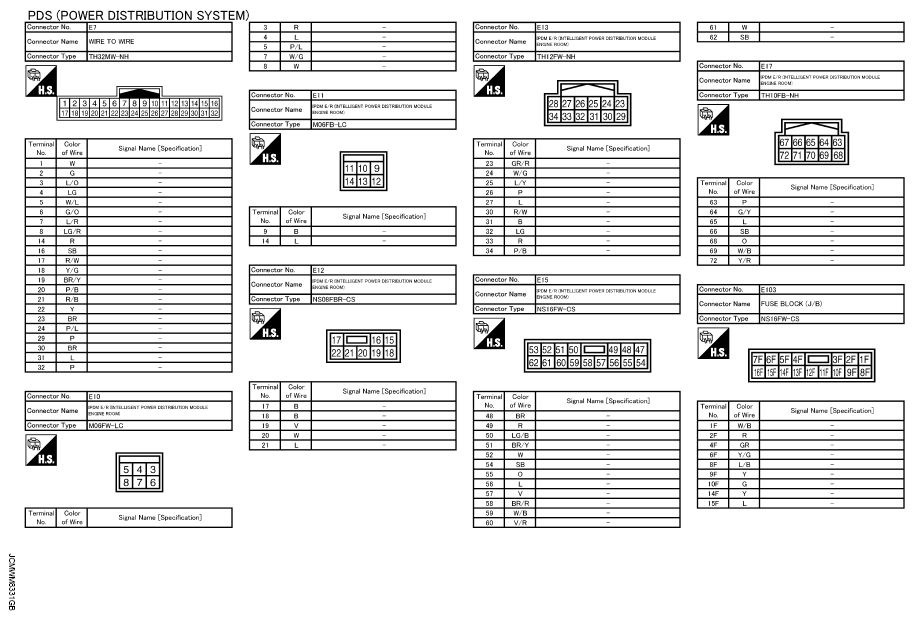

Fig 3: Identifying Power Distribution System Connectors (1 Of 5)

Courtesy of NISSAN MOTOR CO., U.S.A.

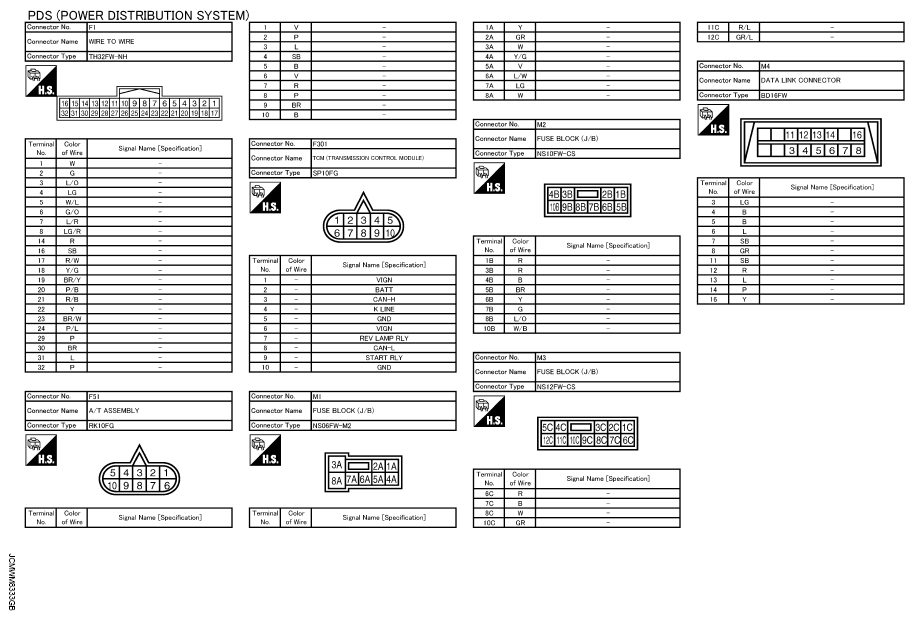

Fig 4: Identifying Power Distribution System Connectors (2 Of 5)

Courtesy of NISSAN MOTOR CO., U.S.A.

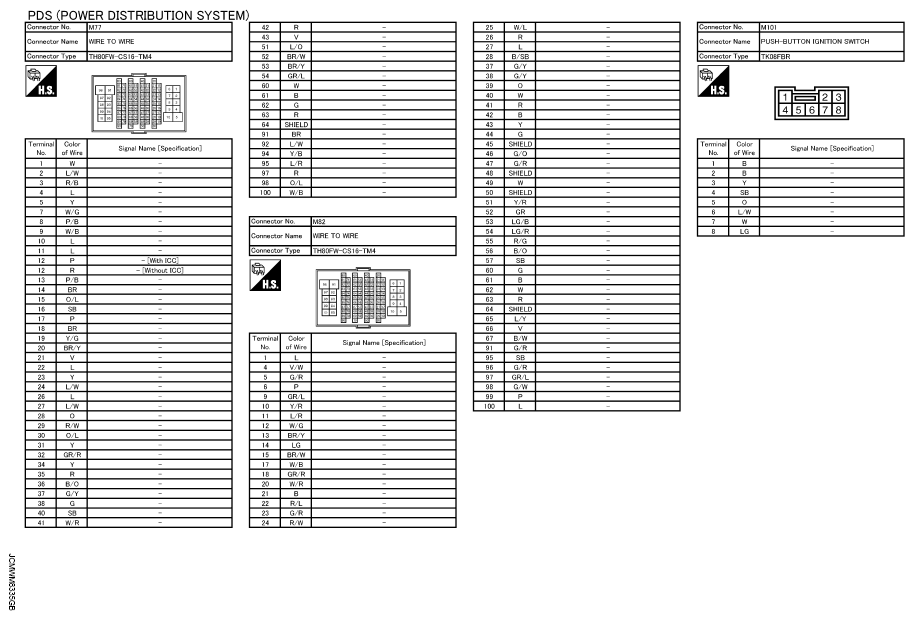

Fig 5: Identifying Power Distribution System Connectors (3 Of 5)

Courtesy of NISSAN MOTOR CO., U.S.A.

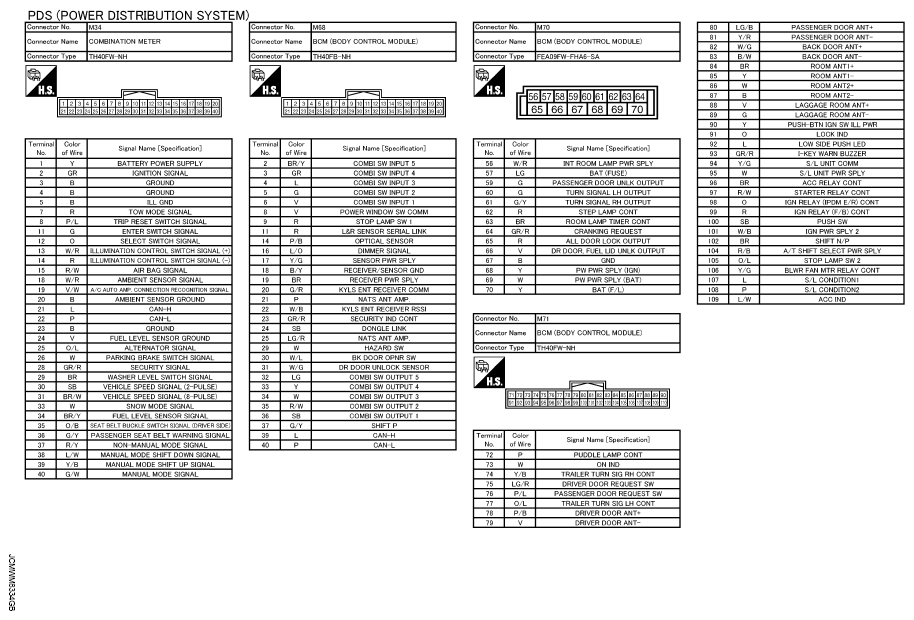

Fig 6: Identifying Power Distribution System Connectors (4 Of 5)

Courtesy of NISSAN MOTOR CO., U.S.A.

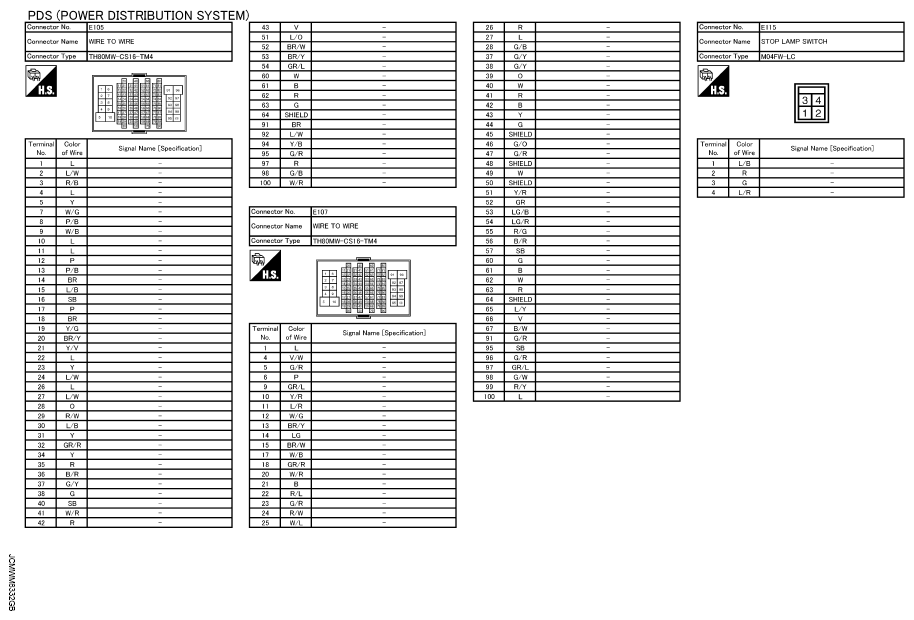

Fig 7: Identifying Power Distribution System Connectors (5 Of 5)

Courtesy of NISSAN MOTOR CO., U.S.A.
