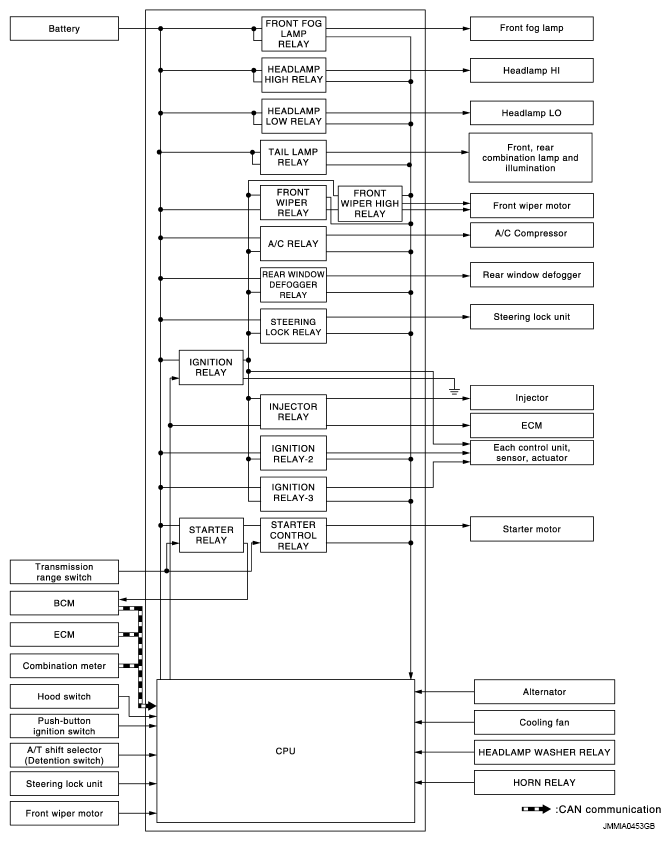

Home >> Infiniti >> 2011 >> QX56 AWD >> Repair and Diagnosis >> Electrical >> Body Electrical >> Power Control System >> [IPDM E/R] >> System Description >> System >> Relay Control System >> RELAY CONTROL SYSTEM : System Diagram
